YBLED60/ARM/PCU LED Yardblaster Lighting

The YBLED60/ARM/PCU is a high-output LED yardblaster designed for broad area illumination in outdoor environments. It is suitable for applications requiring durable, efficient lighting solutions such as parking lots, corporate parks, and retail settings. This fixture is ideal for electrical distributors and lighting solutions providers seeking reliable, high-performance outdoor LED lighting with integrated features for ease of installation and operation.

Specifications

• Product Weight: 12.8 lbs
• Lumens: 7,661 lumens
• Efficacy: 136 lumens per watt
• Input Wattage: 56 watts
• Lens Material: Flat Polycarbonate
• Color Accuracy (CRI): 76
• Color Temperature: 5000 kelvins (Cool)
• Minimum Starting Temperature: -40 degrees Celsius
• IP Rating: IP66 (dust and water ingress protection)
• Electrical Input Voltage: 120V-277V, 50/60 Hz
• Driver: Constant Current, Class 2, 950mA
• Power Factor: 99.6% at 120V, 90.1% at 277V
• THD: 8.8% at 120V, 8.3% at 277V
• Photocell: Integrated 120-277V button photocell included
• L70 Lifespan: 100,000 hours
• BUG Rating: B3 U3 G2

Features

• Durable die-cast aluminum housing with silver gray finish
• High-impact, vandal-resistant flat polycarbonate lens
• Widespread Type V light distribution for uniform 360° illumination
• Integrated dusk-to-dawn photocell for automated operation
• Long-life, high-efficiency surface-mount LEDs with color stability warranty
• Suitable for dry and wet locations
• Mercury and UV free, RoHS-compliant components
• Equivalent to 200W HPS lighting

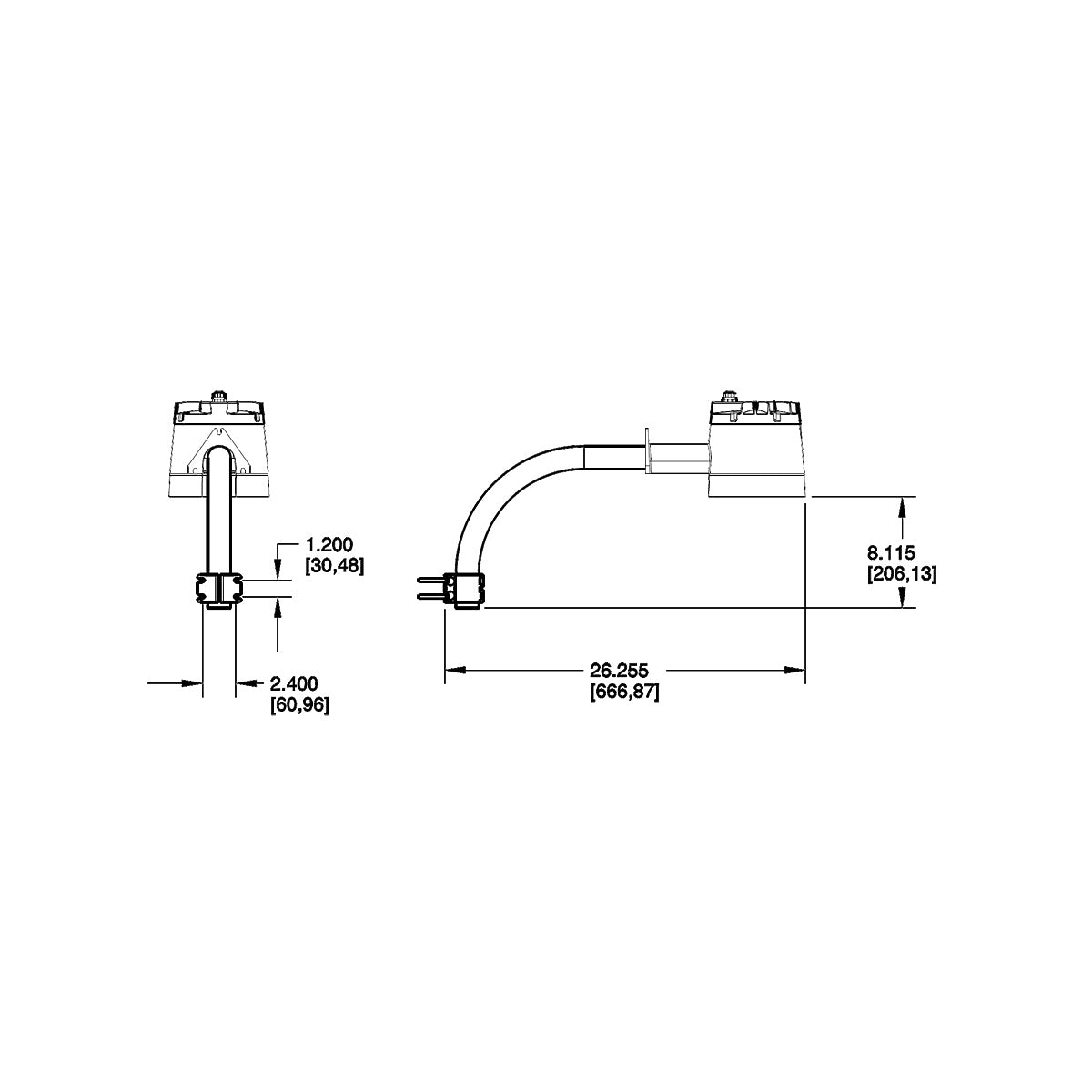

• Mounts on pole with precision die-cast aluminum arm
