Features

• Widespread light distribution illuminates large areas
• Vandal-resistant
• High-impact polycarbonate lens
• Rugged die-cast aluminum housing withstands harsh environments
• Integrated dusk to dawn photocell
• 100,000-hour LED lifespan
• Patents
• Warranty
• Equivalency
• Buy American Act Compliance

Specifications

• Weight: 6.9 lbs

Compliance

• UL Listed: Suitable for wet locations
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

Performance

• Watts: 26W
• Color Temp: 5000K (Cool)
• Lumens: 3,685 lm
• Efficacy: 122 lm/W
• Color Accuracy: 76 CRI
• Type: Constant Current
• 120V: 0.25A
• 208V: 0.16A
• 240V: 0.14A
• 277V: 0.12A
• Input Watts: 30W

LED Characteristics

• LEDs: Multi-chip, high-output, long-life LED
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

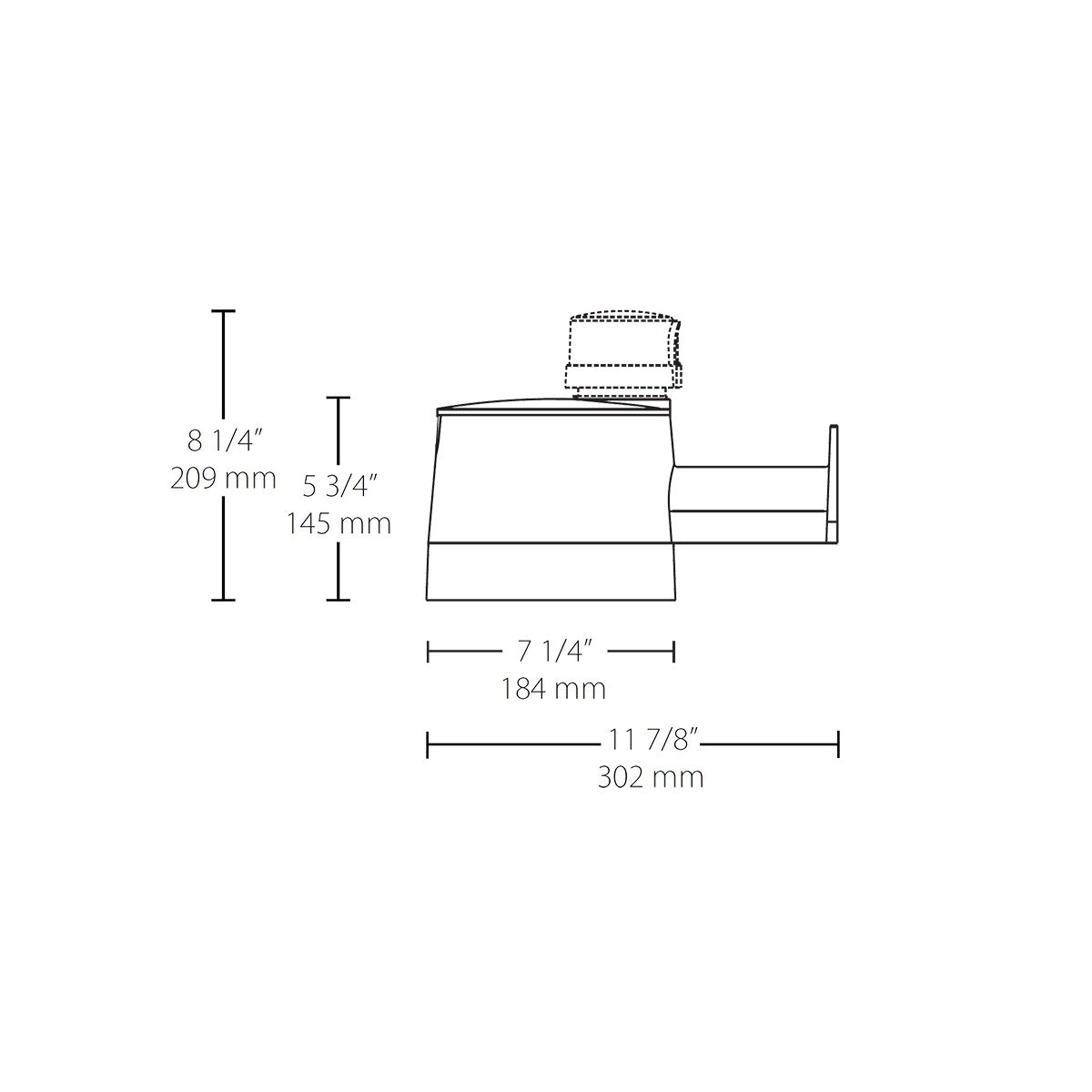

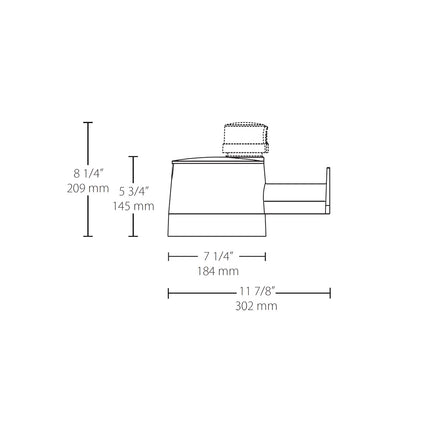

Construction

• Cold Weather Starting: The minimum starting temperature is -40°C (-40°F)
• Housing: Precision die-cast aluminum housing and arm
• Mounting: Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
• Effective Projected Area: EPA = 0.3
• Recommended Mounting Height: 15 ft
• Lens: High-impact, frosted polycarbonate lens
• Reflector: High-reflectance white paint
• Gaskets: High-temperature silicone
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

• Driver: Constant Current, 120V, 50/60 Hz, 700mA, 120V: 0.6A
• THD: 6.8% at 120V, 12.4% at 277V
• Power Factor: 99.5% at 120V, 93.6% at 277V
• Photocell: 120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
• Surge Protection: 2kV
