YBLED26 LED Yardblaster Lighting Fixture

The YBLED26 is a high-output LED yardblaster designed for broad area illumination, suitable for use in electrical distribution and lighting solutions requiring durable, efficient outdoor lighting. This fixture is ideal for lighting large areas with widespread light distribution and is compatible with wall or pole mounting, making it a reliable choice for wire and cable installations in commercial or industrial settings. It features integrated dusk-to-dawn photocell functionality and is built to withstand harsh environments, ensuring long-term performance.

Specifications

• Manufacturer: RAB
• Input Wattage: 30 watts
• Lumens: 3,685 lumens
• Efficacy: 122 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy: 76 CRI
• Lens Material: Frosted polycarbonate
• Finish: Polyester powder coating
• Minimum Starting Temperature: -40 degrees Celsius
• Product Weight: 6.9 lbs

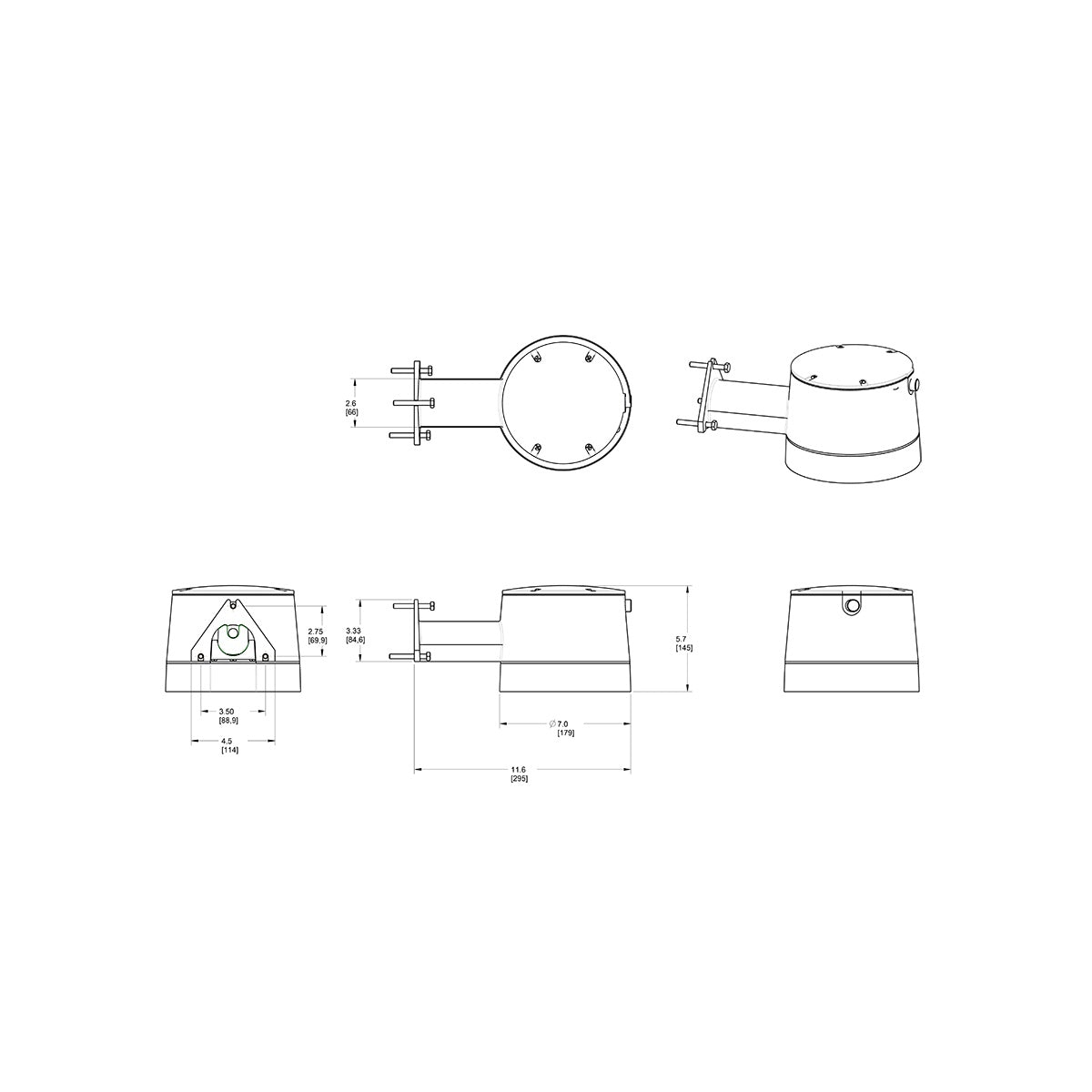

• Mounting: Wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
• Recommended Mounting Height: 15 ft
• Housing: Precision die-cast aluminum
• Driver Type: Constant Current, 120V, 50/60 Hz, 700mA
• Photocell: Integrated 120V compatible
• Surge Protection: 2kV
• LED Lifespan: 100,000 hours (L70)
• Power Factor: 99.5% at 120V
• THD: 6.8% at 120V
• BUG Rating: B1 U2 G1
• Effective Projected Area (EPA): 0.3
• Compliance: UL Listed for wet locations, DLC Qualified

Features

• Widespread light distribution for large area illumination
• Vandal-resistant design with high-impact polycarbonate lens
• Rugged die-cast aluminum housing and arm for harsh environment durability
• Integrated dusk-to-dawn photocell for automatic operation
• Mercury and UV free; RoHS-compliant components
• Color stability with less than 200K shift over 5 years
• Suitable for cold weather starting down to -40°C (-40°F)
• Five-year warranty covering light output, color stability, driver performance, and fixture finish

Downloads & Links

• Spec Sheet
• Instructions
• LM79
