Features

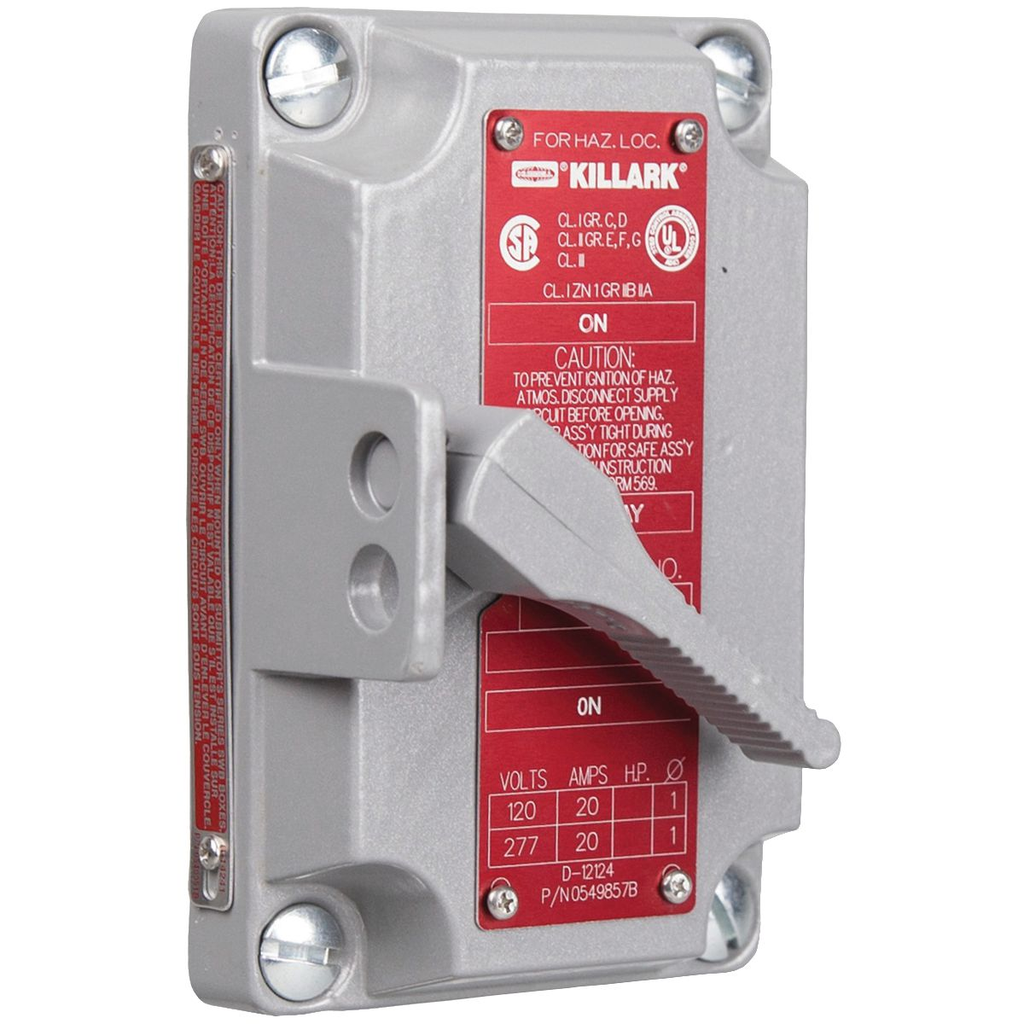

• Front lever rotary operated switch assemblies.
• Standard provisions for padlocking in either “ON” or “OFF” position.
• The lever is connected to a threaded stainless steel shaft which passes through the cover.
• Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.

Specifications

• Country of Origin: Mexico
• Back Box Type: SWB
• Buy American Compliant: Contact Manufacturer
• Depth: 4-1/4
• Dimensions: 5.5 in x 5 in x 3 in
• Width: 5.000 in
• Each - Width: 5.000 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height: 3 in
• Length: 5.5 in
• Action: 3P
• Actuator: Lever
• Amperage Rating: 15 A
• Application: Used where making, breaking, or changing connections in an electric circuit is required.
• Color: Gray
• Number of Poles: 3
• Size: 5.5 in x 5 in x 3 in
• Special Features: Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
• Type: Aluminum Tumbler Switch Cover
• Frequency Rating: 50/60 Hz
• Number Of Poles: 3
• ARRA Compliant: Contact Manufacturer
• Class Code: D25
• Description - Invoice: 1/2"3/4" 3P 15A NO CENTR OFF
• Freight Class Code: 06316009
• Harmonization Code: 7616995190
• Image Actual Or Representative: R
• Lead Time: 15 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D25D250
• CSA File Number: LR11712
• Gross Weight with Packaging: 0.95
• UL File Number: E53360
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: XNS
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936913506
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Contact Manufacturer
