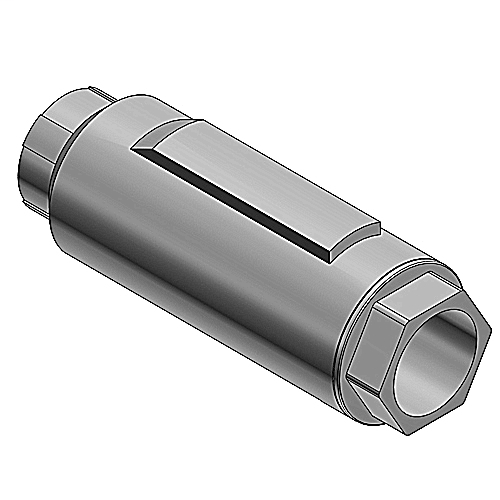

XJG Expansion Couplings – Conduit Expansion Coupling for Rigid Conduit

The XJG Expansion Couplings by Thomas & Betts provide a durable, easy-to-install solution designed to allow for the contraction and expansion of conduit runs without compromising the mechanical or bonding integrity of the raceway. These couplings are ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable expansion fittings for rigid or intermediate metal conduit systems.

Specifications

• Size: 1-1/2 Inch
• Movement: 4 Inch
• Length: 10.56 in
• Outside Diameter: 3.36 in
• Material: Malleable Iron
• Product Weight: 7.78 lbs
• Manufacturer: Thomas & Betts
• Manufacturer Part #: XJG54-TB
• Application: Allows for the contraction and expansion of a conduit run without reducing the mechanical or bonding integrity of the raceway

Features

• Constructed from malleable iron with zinc plating and aluminum acrylic paint for corrosion protection
• Internal bonding jumper made of tinned copper braid sized to meet UL fault current test requirements
• No disassembly required during installation, reducing labor time and complexity
• Raintight fitting ensuring protection against moisture ingress
• PTFE/synthetic fiber packing (Teflon¬Æ coated) provides a tight seal around the conduit
• Designed to maintain electrical continuity and comply with bonding requirements per NEC and CEC codes
• Includes an internal sliding bushing keyed for secure fit
