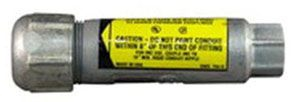

The XJ4004 Rigid Conduit Expansion Coupling provides weatherproof connection in electrical conduit systems where structural movement occurs. It is designed for industrial applications in buildings with long conduit runs or across structural expansion joints as a reliable pipe fitting and connector.

• Trade size: 4 inches coupling with 6.63 inches diameter for heavy-duty installations in environments
• Movement capacity: Accommodates up to 4 incheses of conduit displacement to ensure system integrity during structural shifts
• Body: Malleable iron body with weathertight, concrete-tight design for reliable protection in wet or dry locations
• Electrical continuity: Metallic packing ring ensures uninterrupted conductivity throughout the entire conduit pipe coupler system installation
• Certification: UL 467 listed for code-compliant electrical installations in accordance with National Electrical Code requirements for conduit fittings

Features

• Weatherproof
• Concrete Tight
• Includes Insulating Bushing
• For Wet or Dry Location
• Couplings have the Equivalent of Weather Tight Joints for Use with Heavy Wall Conduit
• Metallic Packing Ring to Insure the Entire Conduit System Remains a Continuous Electrical Conductor
• Expansion Couplings Provide for Movement that takes Place on Long Runs of Conduit Installed in Buildings of Great Length and Between Divisions of Buildings Which are Sectioned Apart by Structural Expansion Joints

Additional Information

• Application Provide for Movement that Take Place on Long Run of Conduit Installed in Building of Great Length and Between Division of Building which are Sectioned Apart by Structural Expansion Joint
• Application Commercial/Industrial, Indoor/Outdoor
• Applicable Standard NEC

Specifications

• Trade Size: 4 Inch
• Diameter: 6.63 Inch
• Length: 8.63 Inch
• Maximum Movement: 4 Inch
• Constructional Feature: Weathertight
• Material: Malleable Iron
• Approval: UL 467
• Used On: Rigid Metal Conduit
• Series/Model: XJ
