XFMR LUG KIT, THREE PHASE, 150 KVA – Transformer Terminal Lug Kit

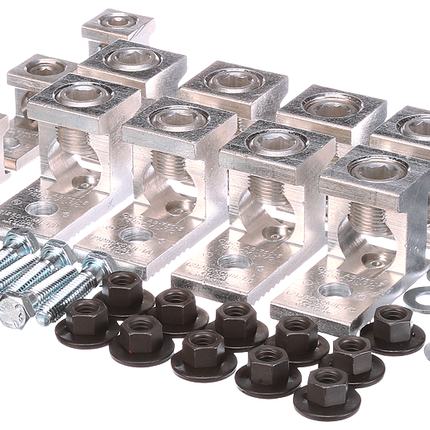

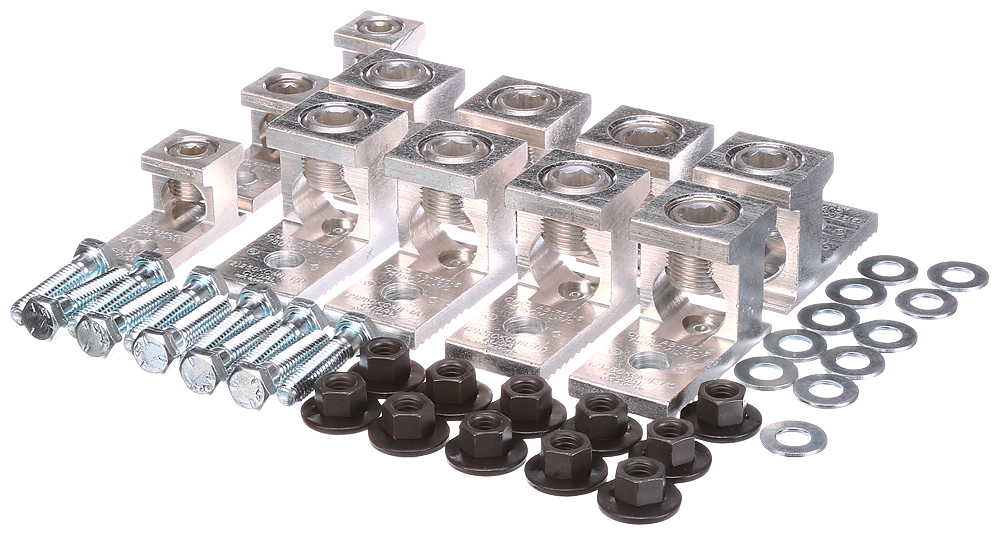

Siemens XFMR Lug Kit TLK35Q is designed as an accessory for low voltage, dry-type 600 Volt Class transformers, specifically ventilated three-phase transformers rated at 150 kVA. This kit provides terminal lug connections suitable for both primary and secondary wiring, facilitating secure cable termination for electrical distributors, switchgear suppliers, and lighting solutions integrators working with wire and cable in transformer installations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: TLK35Q
• Voltage Class: 600 Volt Class (Dry-type)
• Transformer Rating: 150 kVA, Three Phase
• Primary Terminal Lugs: 3 lugs, cable range #6-350 kcmil
• Secondary Terminal Lugs: 8 lugs, cable range 1/0-750 kcmil
• Terminal Bolts Included: Primary and Secondary (3/8 x 1-1/2 inch)
• Dimensions (L x W x H): 13.6 in x 13.4 in x 10.4 in
• Product Weight: 4.22 lbs
• Country of Origin: United States
• Made in USA: Yes
• UPC: 783643465985

Features

• Terminal lug kits designed for secure and reliable connections on 3-phase ventilated transformers
• Single barrel lugs suitable for copper and aluminum cables
• Primary and secondary lugs rated for 90°C operation
• Includes all necessary terminal bolts for installation
• Compatible with Siemens low voltage ventilated transformers
