XFMR LUG KIT, THREE PHASE, 112.5 KVA
SKU: #17875
Part: #TLK34Q
UPC: 783643465978
XFMR LUG KIT, THREE PHASE, 112.5 KVA
SKU: #17875
Part: #TLK34Q
UPC: 783643465978
Total Price: $219.05 per each Sold in increments of 1 each
Next day delivery
Description

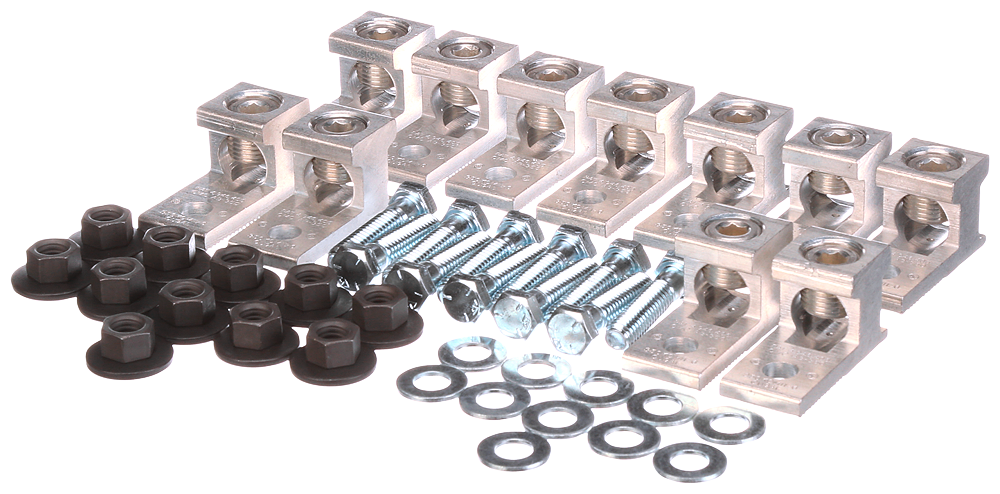

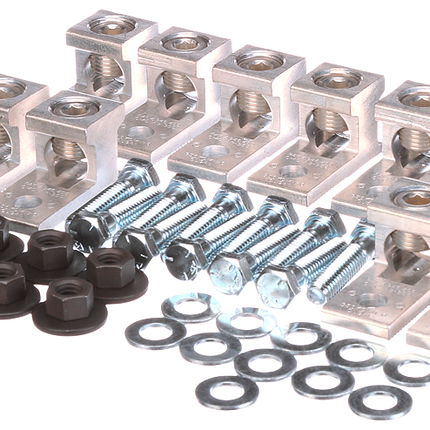

XFMR LUG KIT, THREE PHASE, 112.5 KVA Terminal Lug Kit
This Siemens terminal lug kit is designed for use with 3-phase ventilated transformers rated at 112.5 kVA, serving as essential accessories for low voltage dry-type transformers (600 Volt Class). It provides secure and reliable connections for primary and secondary wiring, suitable for electrical distributors and switchgear suppliers involved in transformer installation and maintenance. The kit supports wire and cable sizes ranging from #6 to 350 kcmil and includes all necessary terminal bolts.
Specifications
- Manufacturer: Siemens
- Manufacturer Part Number: TLK34Q
- Application: 3-Phase ventilated transformers, 112.5 kVA
- Primary Terminal Lugs: 3 lugs, suitable for #6-350 kcmil cable
- Secondary Terminal Lugs: 8 lugs, suitable for #6-350 kcmil cable
- Terminal Bolt Size (Primary and Secondary): 3/8 x 1-1/2 inches
- Voltage Class: 600 Volt Class
- Air Interrupting Rating (AIR): 112.5 kA
- Dimensions (L x W x H): 13.4 in x 13.8 in x 10.4 in
- Product Weight: 3.15 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Includes primary and secondary terminal lugs for secure cable connections
- Terminal lugs accommodate copper and aluminum cables within specified ranges
- Terminal bolts included for installation convenience
- UL listed for indoor and outdoor use with drip shield installed (per Siemens catalog)
- Compatible with Siemens low voltage ventilated transformers
