Description

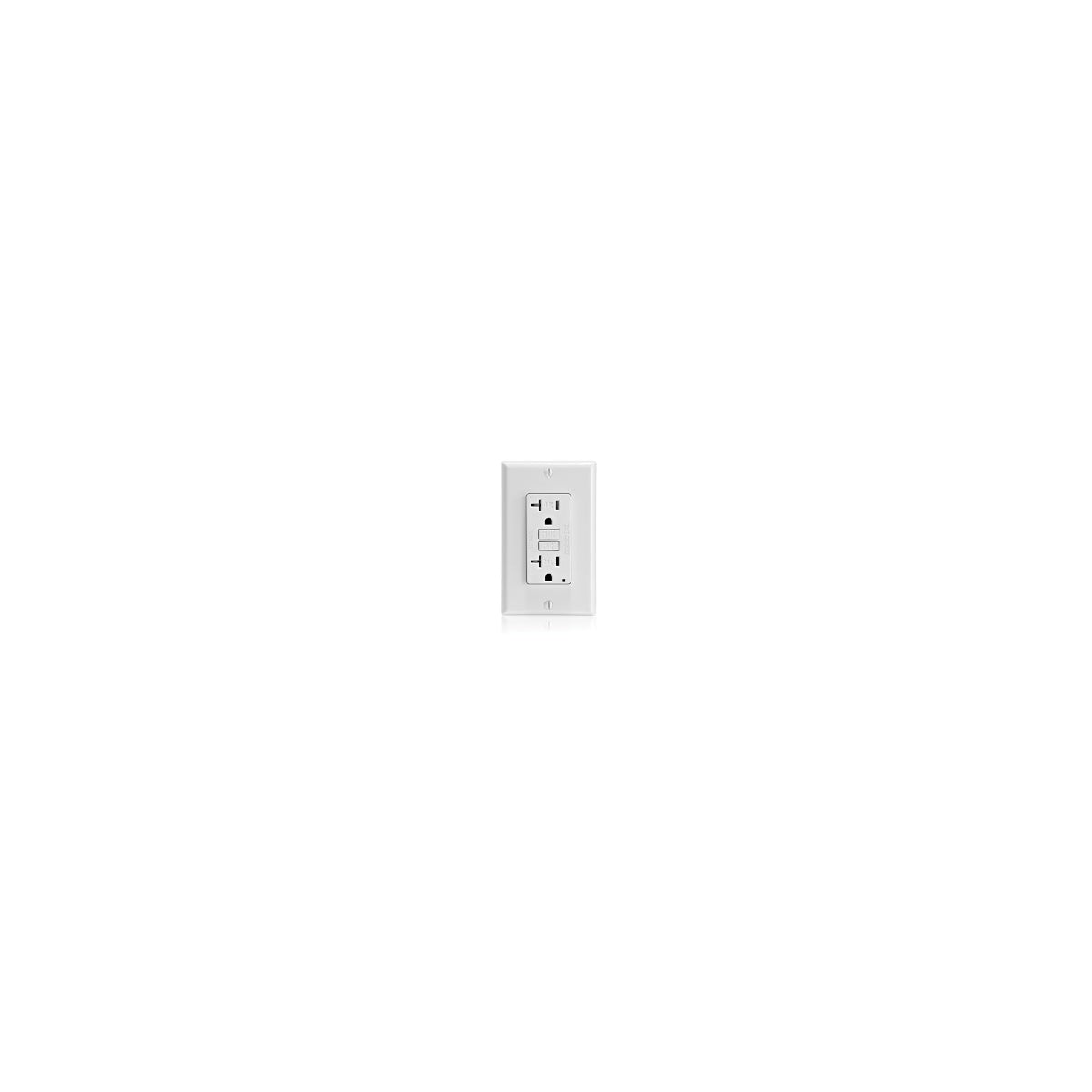

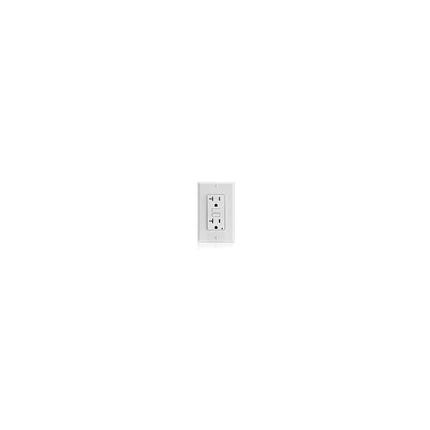

X7899-W, 20 Amp SmartlockPro Slim GFCI Receptacle
The Leviton X7899-W SmartlockPro Slim GFCI receptacle is a professional-grade ground fault circuit interrupter designed for residential electrical applications. It provides reliable ground fault protection with a slim, shallow profile that allows for easier installation in any wallbox, including shallow boxes. This device is ideal for use in kitchens, bathrooms, garages, basements, laundry rooms, and other wet or damp locations requiring tamper-resistant receptacles compliant with NEC requirements. As a trusted electrical distributor and switchgear supplier, Leviton offers this product to meet modern residential wiring safety and efficiency needs.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: X7899-W
- Amperage: 20 amperes
- NEMA Rating: 5-20R
- Material: Galvanized Steel
- Color: White
- Grade: Residential
- Grounding: Self-Grounding
- Clamp Type: Brass
- Number of Poles: 2
- Number of Wires: 3
- Dielectric Strength: 1250 volts
- At Rated Voltage: 1 horse power
- Operating Temperature: -35 to 66 degrees Celsius
- Flammability Class: Rated V-2 Per UL94
- Product Weight: 0.3860 lbs
- ANSI Base: C-73
Features
- Slim, shallow design reduces depth for easier installation and saves up to 25% space in the wallbox compared to other GFCIs
- Professional grade lockout action with patented Reset Lockout feature preventing reset if the device is damaged or miswired
- External back wire clamps provide visual indication of proper wire seating, with exceptional resistance to wire pullout and high torque tolerance
- Dual function LED indicators for line-load reversal and power status
- Tamper-Resistant design complies with NEC Section 406.1 for new or renovated residential construction
- Silver alloy contacts and impact-resistant thermoplastic cover and body
- Compatible with Decora devices and wallplates
- Meets or exceeds UL Standard 943 Class A (GFCI) and 498 (Receptacles), CSA Certification, and Federal Specification W-C-596G
- Self-Test model available that automatically tests every 15 minutes and alerts users if protection is compromised
