X7899-I, 20 Amp
SKU: #38488
Part: #X7899-I
UPC: 078477513811
X7899-I, 20 Amp
SKU: #38488
Part: #X7899-I
UPC: 078477513811
Next day delivery
Description

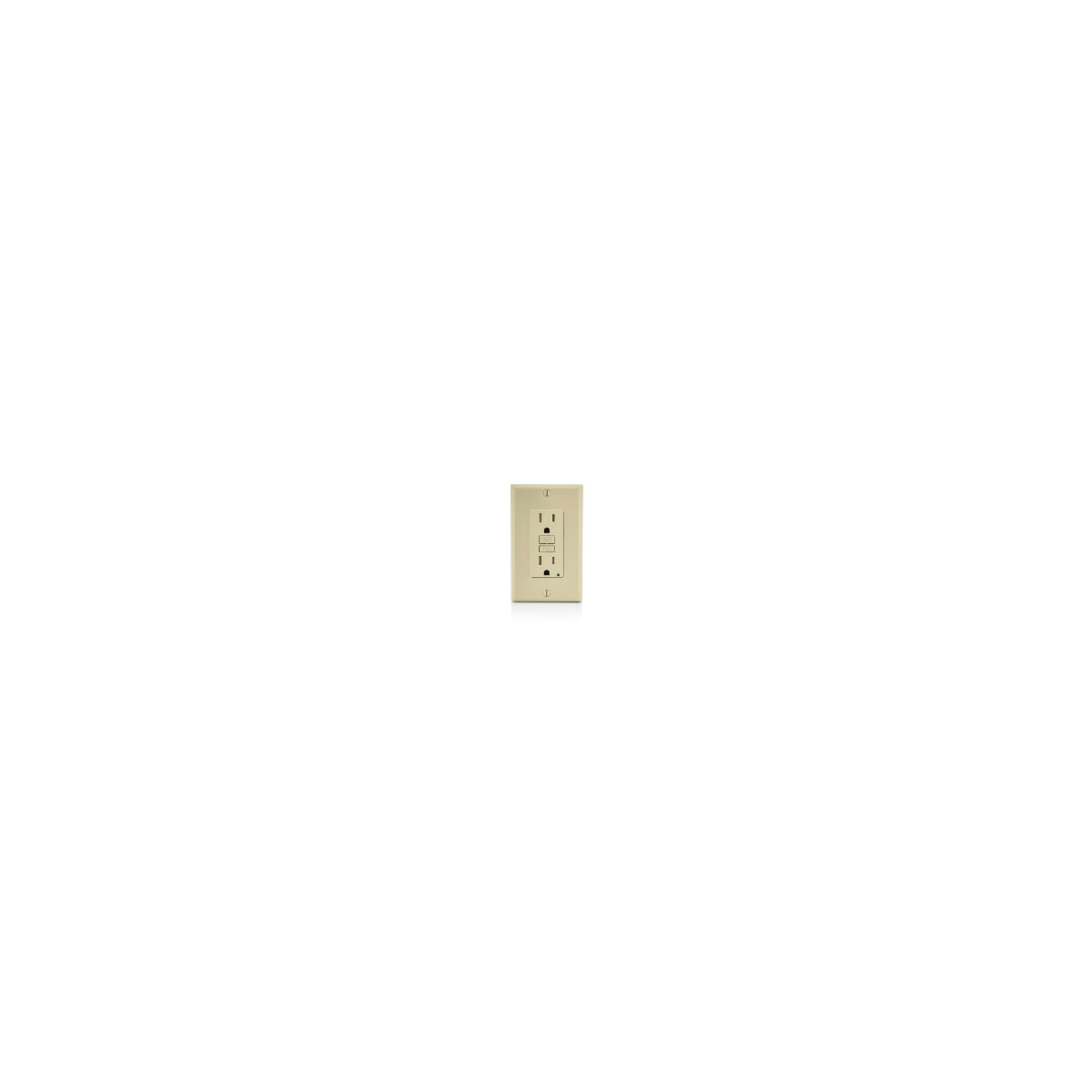

X7899-I, 20 Amp SmartlockPro Slim GFCI Receptacle
The Leviton X7899-I SmartlockPro Slim GFCI is a residential-grade ground fault circuit interrupter designed for reliable electrical protection in wet or damp locations. Its slim, shallow profile enables faster, easier installation in any wallbox, including shallow boxes, making it ideal for kitchens, bathrooms, garages, basements, laundry rooms, and other residential applications. This device is suitable for electrical distributors and lighting solutions providers seeking a compact, tamper-resistant GFCI with advanced safety features and compatibility with Decora devices and wallplates.
Specifications
- Amperage: 20 amperes
- NEMA Rating: 5-20R
- Material: Galvanized Steel
- Color: Ivory
- Grade: Residential
- Grounding: Self-Grounding
- Clamp Type: Brass
- Dielectric Strength: 1250 volts
- Number of Poles: 2
- Number of Wires: 3
- Horsepower Rating at Rated Voltage: 1 HP
- Operating Temperature: -35 to 66 degrees Celsius
- Flammability Class: Rated V-2 per UL94
- ANSI Base: C-73
- Product Weight: 0.38 lbs
- Manufacturer Part Number: X7899-I
Features
- Slim, shallow design reduces device depth for easier installation and up to 25% more space in the wallbox
- Industry-leading professional grade lockout action with patented Reset Lockout to prevent reset if device is damaged or miswired
- External back wire clamps provide visual confirmation of proper wire seating
- Exceptional resistance to wire pullout and ability to withstand high torque
- Tamper-Resistant to meet NEC requirements for residential construction, with shutter mechanism blocking access unless a proper plug is fully inserted
- Dual-function LED indicators for line/load reversal and power status
- Compatible with all Decora devices and wallplates, available in select Decora colors
- Silver alloy contacts and impact-resistant thermoplastic cover and body
- Patented bridge contact prevents power delivery if wired incorrectly (line-load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics provide superior resistance to electrical surges and over-voltages
- Self-grounding clip for easy grounding
- Complies with UL Standard 943 Class A (GFCI) and 498 (Receptacles), CSA Certified, NOM Certified, and meets Federal Specification W-C-596G
- Limited two-year warranty
