X7899, 20 Amp
SKU: #38458
Part: #X7899
UPC: 078477513804
X7899, 20 Amp
SKU: #38458
Part: #X7899
UPC: 078477513804
Description

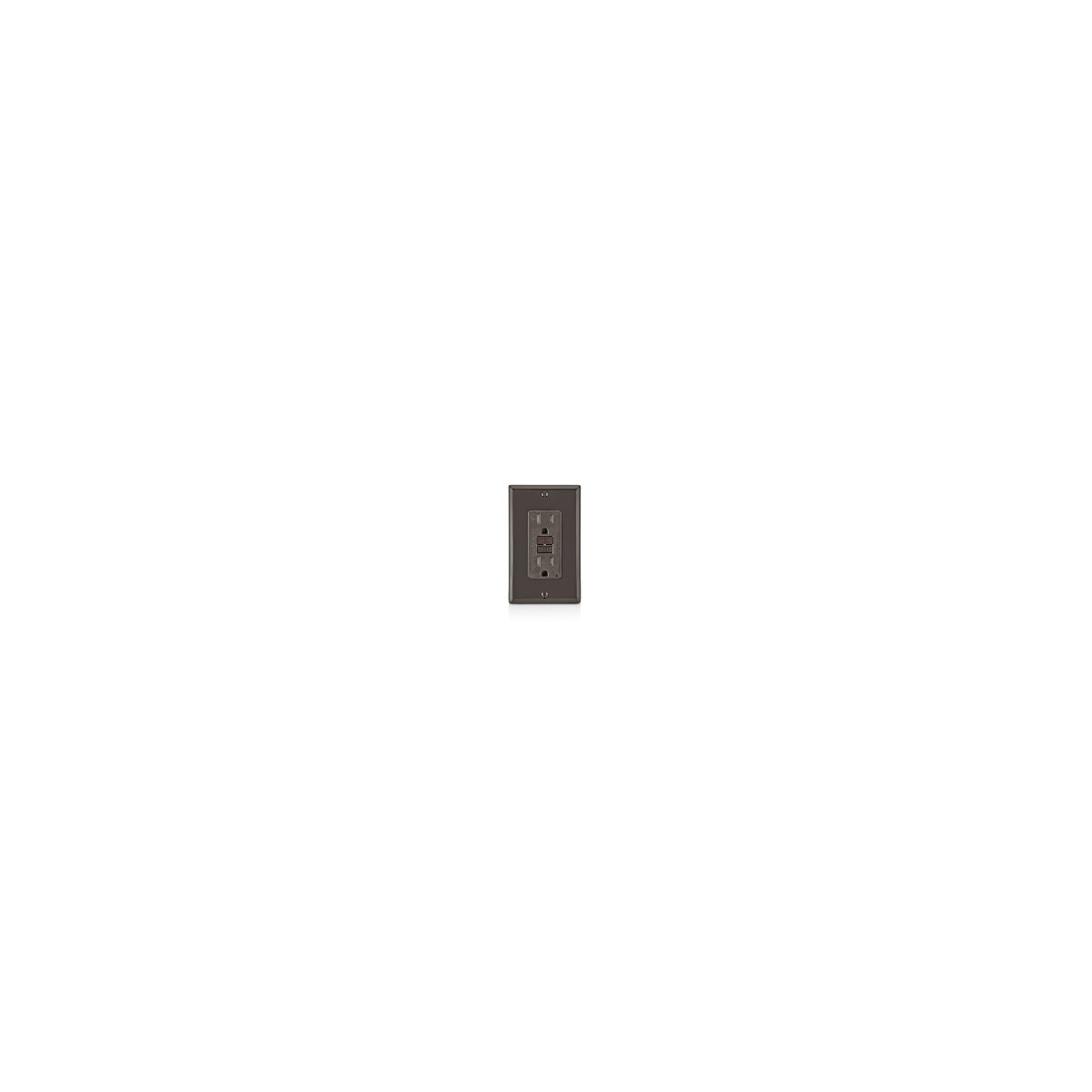

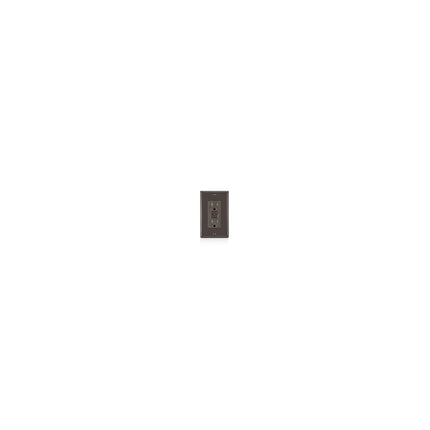

X7899, 20 Amp SmartlockPro Slim GFCI Receptacle
The Leviton X7899 SmartlockPro Slim GFCI is a residential-grade ground fault circuit interrupter designed for enhanced electrical safety in wet or damp locations such as kitchens, bathrooms, garages, and laundry rooms. This slim-profile device offers easier installation in shallow wallboxes, making it an efficient choice for electrical distributors and switchgear suppliers focused on lighting solutions and wire and cable applications. It features professional-grade lockout action, tamper-resistant shutters compliant with 2008 NEC requirements, and advanced electronics for surge resistance and nuisance trip reduction.
Specifications
- Amperage: 20 amperes
- NEMA Rating: 5-20R
- Material: Galvanized Steel
- Color: Brown
- Grade: Residential
- Grounding: Self-Grounding
- Clamp Type: Brass
- Dielectric Voltage: 1250 volts
- Number of Poles: 2
- Number of Wires: 3
- At Rated Voltage: 1 horsepower
- Operating Temperature: -35 to 66 degrees Celsius
- Flammability Class: Rated V-2 Per UL94
- ANSI Base: C-73
- Product Weight: 0.3800 lbs
Features
- Slim, shallow design reduces depth for easier installation in any electrical box, including shallow wallboxes
- Flush mount with minimal protrusion for a sleek, finished look
- External back wire clamps provide visual confirmation of proper wiring and positive indication of wire seating
- Exceptional resistance to wire pullout and ability to withstand high torque
- Patented Reset Lockout prevents reset if the device is damaged or miswired, ensuring reliable ground fault protection
- Dual-function LED indicators show line-load reversal and power status
- Tamper-Resistant shutter mechanism complies with NEC Section 406.1 for residential safety
- Compatible with all Decora devices and wallplates, available in select Decora colors
- Silver alloy contacts and impact-resistant thermoplastic cover and body
- Advanced electronics provide improved immunity to high frequency noise, reducing nuisance tripping
- Self-Test model option automatically tests every 15 minutes and alerts users if protection is compromised
- Meets or exceeds UL Standard 943 Class A (GFCI) and 498 (Receptacles), CSA Certified, NOM Certified, and Federal Specification W-C-596G
