X7599-I, 15 Amp
SKU: #38437
Part: #X7599-I
UPC: 078477513590
X7599-I, 15 Amp
SKU: #38437
Part: #X7599-I
UPC: 078477513590
Description

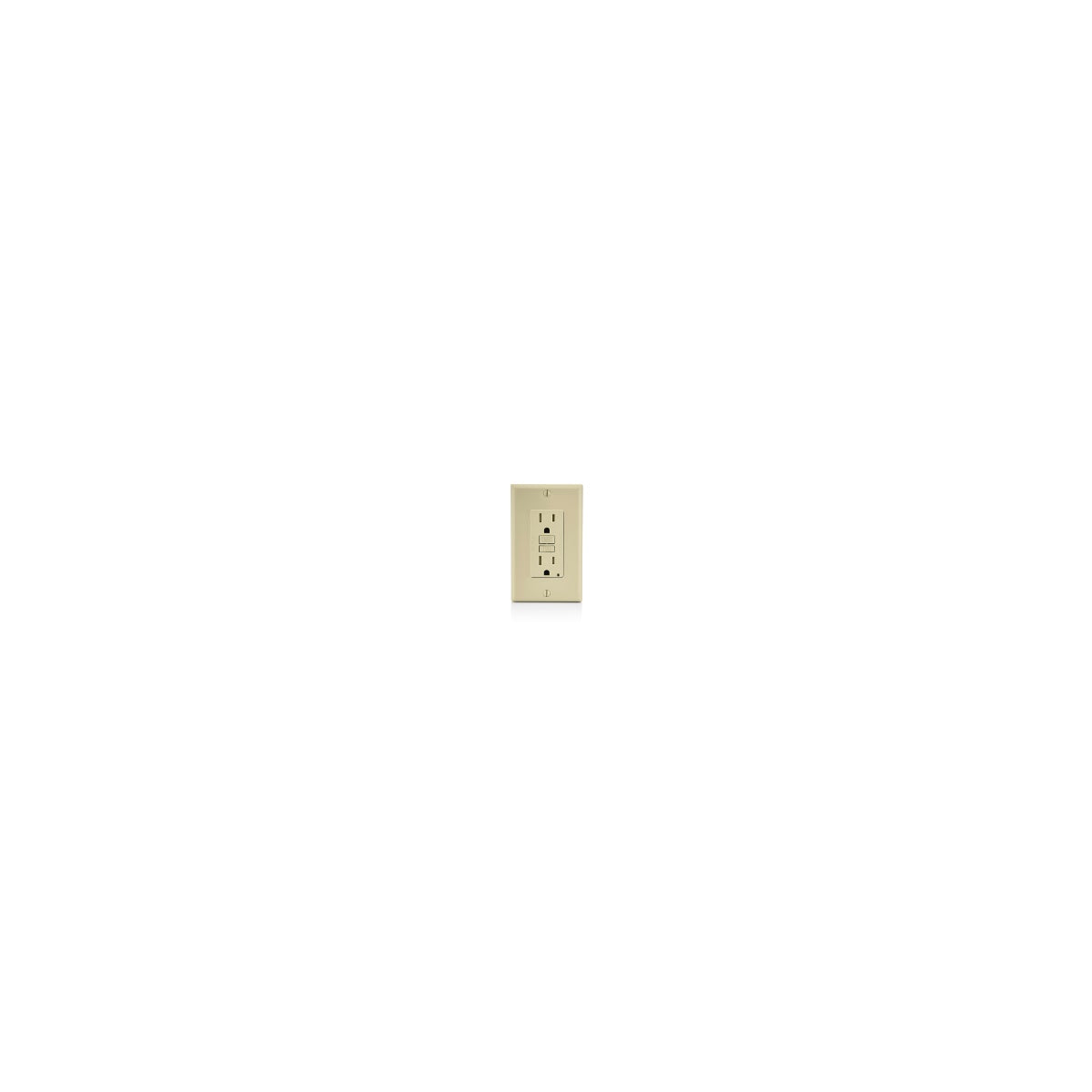

X7599-I, 15 Amp SmartlockPro Slim GFCI Receptacle
The Leviton X7599-I SmartlockPro Slim GFCI is a residential-grade ground fault circuit interrupter designed for enhanced electrical safety in wet or damp locations such as kitchens, bathrooms, garages, and laundry rooms. This slim-profile device is engineered for faster, easier installation in any wallbox, providing up to 25% more space compared to standard GFCIs. It is an ideal product for electrical distributors and lighting solutions providers seeking reliable wire and cable safety accessories or switchgear components that meet current NEC tamper-resistant requirements.
Specifications
- Amperage: 15 amperes
- NEMA Rating: 5-15R
- Material: Galvanized Steel
- Color: Ivory
- Grade: Residential
- Grounding: Self-Grounding
- Clamp Type: Brass
- Number of Poles: 2
- Number of Wires: 3
- Dielectric Strength: 1250 volts
- Operating Temperature: -35 to 66 degrees Celsius
- At Rated Voltage: 1 horsepower
- Flammability Class: Rated V-2 per UL94
- ANSI Base: C-73
- Product Weight: 0.34 lbs
Features
- Slim, shallow design reduces depth for easier installation in shallow electrical boxes
- Flush mounts to the wall with minimal protrusion for a sleek, finished look
- External back wire clamps provide visual indication of proper wire seating
- Exceptional resistance to wire pullout and high torque withstand capability
- Patented Reset Lockout feature prevents reset if device is damaged or miswired
- Dual-function LED indicators provide status for power availability and line-load reversal
- Tamper-resistant shutter mechanism meets NEC Section 406.1 for residential safety
- Compatible with all Decora devices and wallplates; available in select Decora colors
- Silver alloy contacts and impact-resistant thermoplastic cover and body
- Test and Reset buttons color-matched to device face
- Meets or exceeds UL Standard 943 Class A and 498 for receptacles, CSA Certified, and NOM Certified
- Designed for residential applications including kitchens, bathrooms, garages, basements, and laundry rooms
