WT599-W, 15 Amp
SKU: #38400
Part: #WT599-W
UPC: 078477559857
WT599-W, 15 Amp
SKU: #38400
Part: #WT599-W
UPC: 078477559857
Description

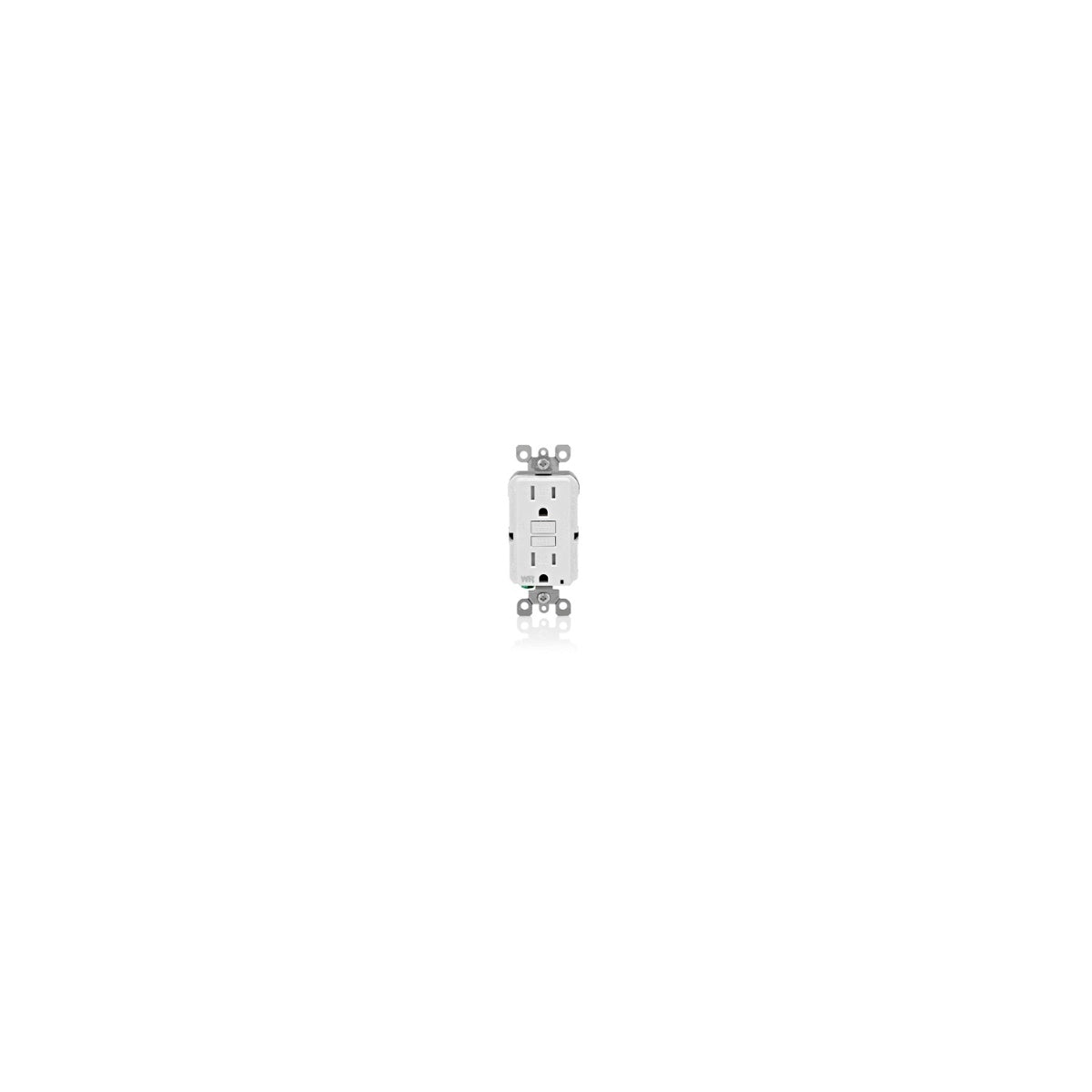

WT599-W, 15 Amp SmartlockPro Slim GFCI Receptacle
The WT599-W is a professional grade, tamper-resistant SmartlockPro Slim GFCI receptacle designed for residential electrical applications. Engineered to provide ground fault circuit interruption protection, it features a slim profile that allows faster and easier installation in any wallbox, including shallow ones, making it suitable for kitchens, bathrooms, garages, basements, laundry rooms, and other wet or damp locations. This device integrates advanced lockout action and external back wiring for secure, reliable connections, and meets NEC requirements for new or renovated residential construction. It is ideal for electrical distributors and switchgear suppliers seeking compact, high-quality lighting and wiring protection solutions.
Specifications
- Amperage: 15 amperes
- Color: White
- Grade: Residential
- Material: Polycarbonate body with polycarbonate face
- NEMA Rating: 5-15R
- Number of Poles: 2
- Number of Wires: 3
- Clamp Type: Brass
- Grounding: Green Ground Screw
- Dielectric Strength: 1250 volts
- Operating Temperature: -35 to 66 degrees Celsius
- Flammability Class: Rated V-2 per UL94
- ANSI Base: C-73
- Product Weight: 0.33 lbs
- At Rated Voltage: 1 horsepower
- Manufacturer: Leviton
- Manufacturer Part Number: WT599-W
Features
- Slim, shallow design reduces depth for easier installation in any electrical box, saving up to 25% wallbox space compared to other GFCIs
- Patented Reset Lockout feature prevents reset if device is damaged or miswired, ensuring reliable ground fault protection
- Dual-function LED indicator provides visual confirmation of line-load reversal and power status
- External back wire clamps with visual indication of proper clamping for secure wiring
- Standard brass self-grounding clip for reliable grounding
- High torque resistance and wire pullout protection for durable performance
- Tamper-Resistant shutter mechanism complies with NEC Section 406.1 for residential safety
- Impact-resistant thermoplastic cover and body for enhanced durability
- Silver alloy contacts for improved conductivity and longevity
- Compatible with Decora devices and wallplates
- Meets UL Standard 943 Class A (GFCI) and 498 (Receptacles), CSA Certified, NOM Certified, and Federal Specification W-C-596G
- Self-test model available that automatically tests every 15 minutes and alerts users if protection is compromised
- Limited two-year warranty
