WPTGHH70QT Outdoor Wall Pack Lighting Fixture

The WPTGHH70QT by RAB is a heavy-duty outdoor wall pack lighting fixture designed for commercial and industrial applications. It provides reliable illumination with a metal halide lamp, suitable for wet locations. This fixture is ideal for electrical distributors and lighting solutions providers seeking durable, efficient lighting for exterior building lighting and security. It operates efficiently with a 90-watt input and delivers 5,600 lumens, making it a practical choice for wire and cable installations requiring dependable light output and switchgear supplier projects needing compliant, high-performance fixtures.

Specifications

• Manufacturer: RAB
• Model Number: WPTGHH70QT
• Input Wattage: 90 watts
• Lumens: 5,600 lumens
• Efficacy: 62 lumens per watt
• Weight: 12.4 lbs
• Lamp Type: ED17 Metal Halide
• Lamp Wattage: 70W
• Lamp Life: 15,000 hours
• Voltage Compatibility: 120, 208, 240, 277 volts (quad tap)
• Color: Bronze

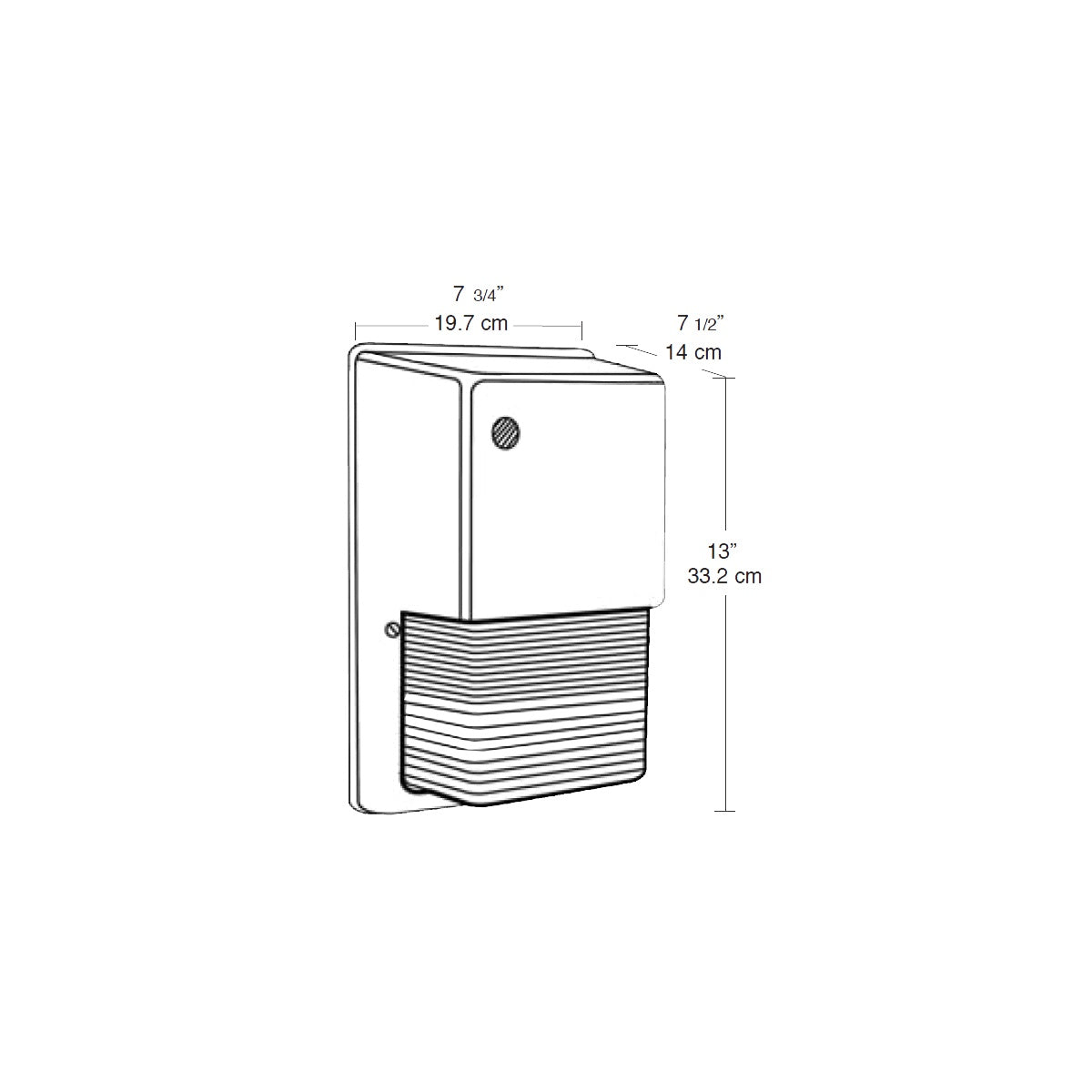

• Dimensions: 7 3/4" W x 7 1/2" D x 13" H (19.7 cm x 14 cm x 33.2 cm)
• UL Listed for wet locations
• EISA 2007 Compliant for metal halide ballast efficiency

Features

• Heavy-duty cast aluminum housing for durability
• Die-formed aluminum reflector for wide light distribution
• Moveable glare shield for adjustable light control, slanted downward to enhance job site illumination
• Heavy prismatic glass refractor for optimal light diffusion
• Stamped steel ballast housing painted white
• 1/2" bottom conduit knockout and mounting knockouts for 3" or 4" junction boxes
• Optional 277 volt photocell available
• Pulse start ballast technology for longer lamp life, faster startup, and faster restrike
• Complies with Buy American Act upon request
