WPTGHH50/PC2 Metal Halide Wall Pack Lighting

The WPTGHH50/PC2 by RAB is a durable metal halide wall pack designed for outdoor lighting applications. It provides efficient illumination suitable for commercial and industrial settings, making it a reliable choice for electrical distributors and lighting solutions providers. This fixture is engineered for wet locations and includes a button photocell for automatic operation, supporting wire and cable installations with compatibility across 208V to 277V systems. It is an ideal product for switchgear suppliers and electrical contractors seeking robust exterior lighting.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WPTGHH50/PC2
• Lamp Type: ED17 Metal Halide
• Input Wattage: 68 watts
• Lamp Watts: 50W
• Lamp Lumens: 3400 lumens
• Efficacy: 50 lumens per watt
• Operating Voltage: Compatible with 208V-277V
• THD: 7.3% at 277V
• Weight: 8.8 lbs
• Color: Bronze

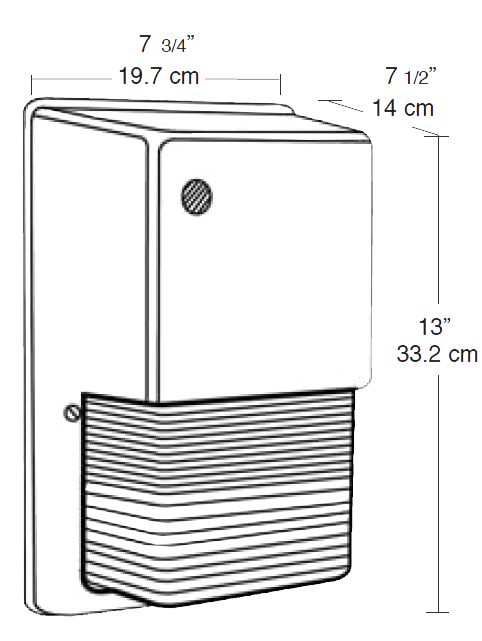

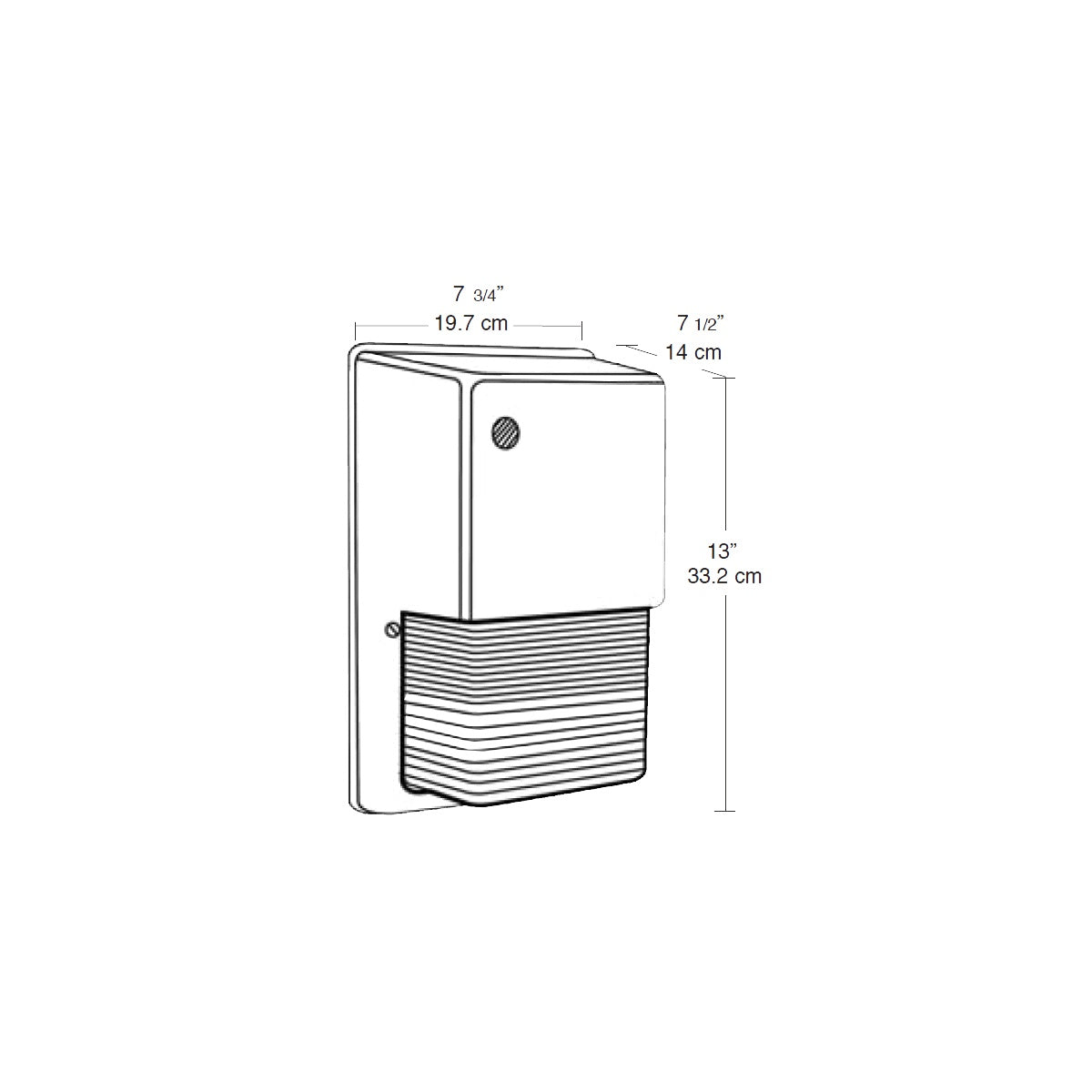

• Dimensions: 7 3/4" W x 7 1/2" D x 13" H (19.7 cm x 14 cm x 33.2 cm)
• UL Listed: Suitable for wet locations
• EISA 2007 Compliant: Yes

Features

• Button photocell 277V included for automatic dusk-to-dawn operation
• Photocell compatible with 208V-277V
• Pulse Start technology for longer lamp life, faster startup, and faster restrike
• Die-formed aluminum reflector for wide light distribution
• Moveable glare shield for adjustable light control, slanted downward to reduce glare and enhance illumination on the job
• Heavy die-cast aluminum back plate with 1/2" bottom conduit knockout
• Mounting knockouts for 3" or 4" junction boxes
• Stamped steel ballast housing painted white for durability
• Complies with Buy American Act upon request

Downloads & Links

• Spec Sheet
