WPTGHH50/PC Metal Halide Wall Pack Lighting

The WPTGHH50/PC by RAB is a durable metal halide wall pack designed for outdoor lighting applications. Suitable for electrical distributors and lighting solutions providers, this fixture delivers efficient illumination with a robust construction ideal for commercial and industrial environments. It features a built-in 120V button photocell for automatic dusk-to-dawn operation, making it a reliable choice for wire and cable installations requiring controlled outdoor lighting. The product is UL listed for wet locations and complies with EISA 2007 ballast efficiency standards, ensuring energy-efficient performance.

Specifications

• Manufacturer: RAB
• Model Number: WPTGHH50/PC
• Input Wattage: 69 watts
• Lumens: 3400 lumens
• Efficacy: 49 lumens per watt
• Lamp Type: ED17 Metal Halide
• Lamp Wattage: 50 watts
• Photocell: 120V Button photocell included (compatible only with 120V)
• Weight: 8.8 lbs

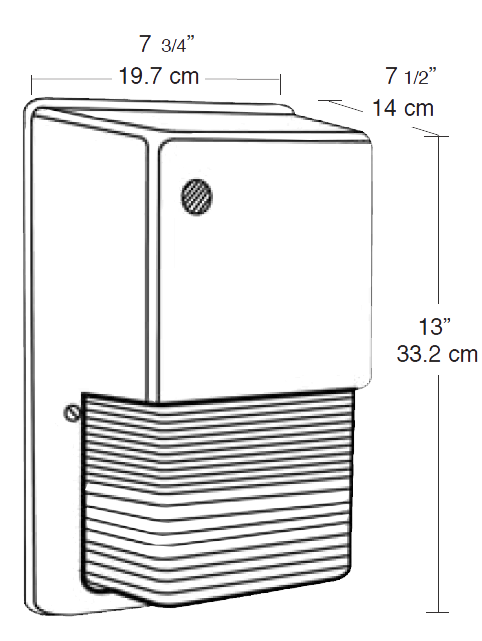

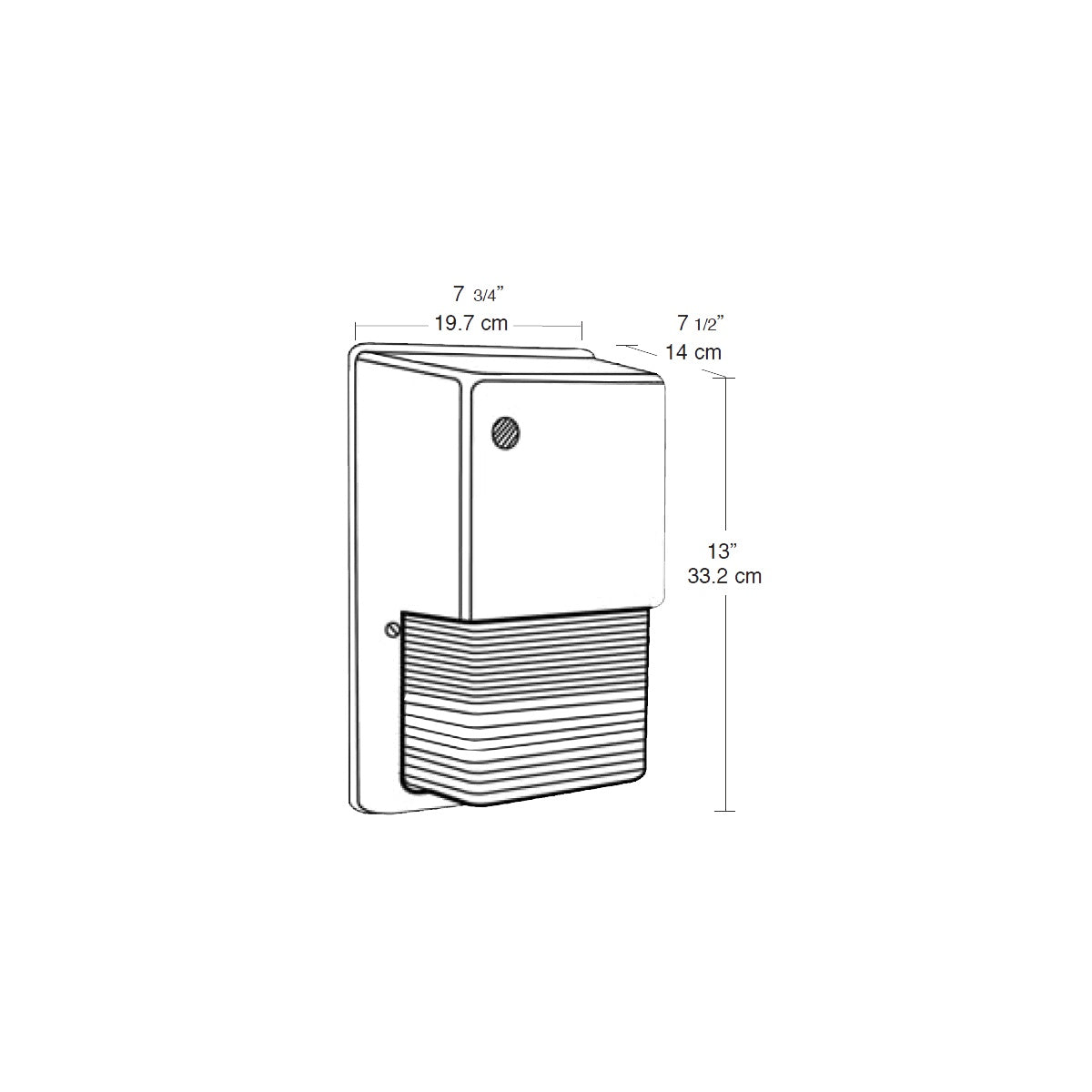

• Dimensions: 13" H x 7 3/4" W x 7 1/2" D (33.2 cm x 19.7 cm x 14 cm)
• UL Listed: Suitable for wet locations
• Ballast Type: HX-HPF 120V
• THD: 6.6% at 277V

Features

• Heavy-duty cast aluminum housing for durability
• Stamped steel ballast housing painted white
• Die-formed aluminum reflector for wide light distribution
• Moveable glare shield for adjustable light control
• Heavy prismatic glass refractor for optimized light output
• 1/2" bottom conduit knockout and mounting knockouts for 3" or 4" junction boxes
• Complies with EISA 2007 standards for metal halide ballast efficiency
• UL listed for wet locations
• Includes photocell for energy savings and automatic operation

Downloads & Links

• Spec Sheet
