WPLED4T150 LED Wall Pack Lighting Solutions

The WPLED4T150 by RAB is a high-performance LED wall pack designed for outdoor lighting applications, ideal for electrical distributors and lighting solutions providers. It delivers efficient, reliable illumination with a Type IV distribution pattern suited for mounting on building sides and walls, providing perimeter lighting for parking areas and similar spaces. This fixture is engineered for durability and long service life, making it suitable for commercial and industrial environments requiring robust wire and cable management and switchgear compatibility.

Specifications

• Manufacturer: RAB
• Model Number: WPLED4T150
• Input Wattage: 156 watts
• Lumens: 18,464 lumens
• Efficacy: 118 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 71 CRI
• LED Lifespan: 100,000 hours (L70)
• Ambient Temperature Rating: Up to 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• Weight: 33.6 lbs
• IP Rating: IP66 (dust and water resistant)
• IES Classification: Type IV distribution (Forward Throw)
• Driver Type: Constant Current, Class 2, 2100mA, 100-277V, 50-60Hz, Power Factor 99%
• THD: 4.7% at 120V, 13.3% at 277V
• BUG Rating: B1 U0 G3
• Equivalency: Replaces 750W Metal Halide

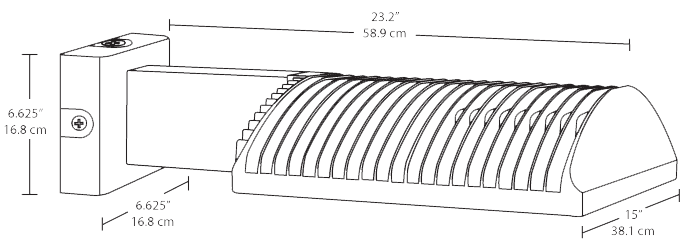

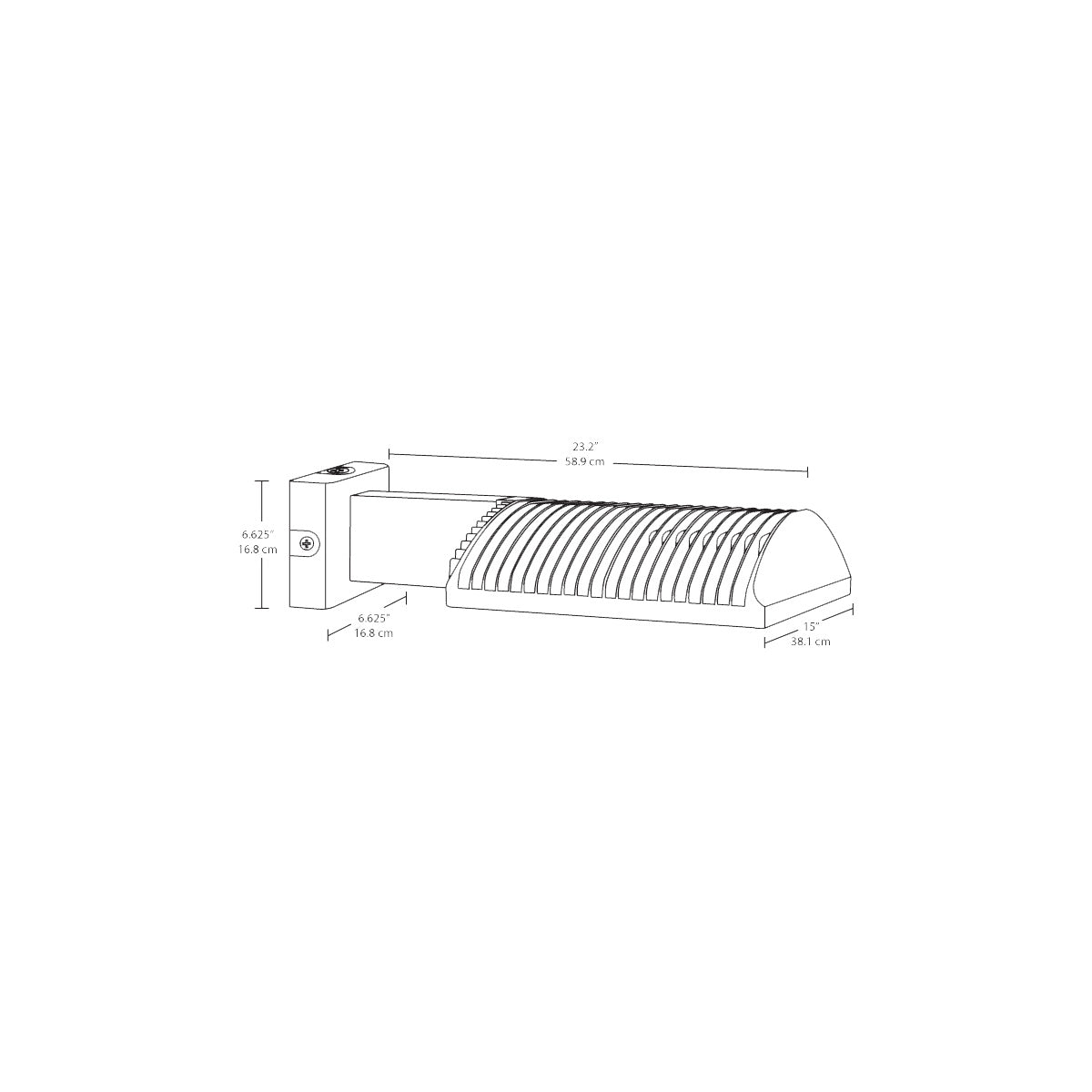

• Dimensions: 23.2" length x 15" width x 6.625" height

Features

• Die-cast aluminum housing, lens frame, and mounting arm for durability
• Superior thermal management with external "Air-Flow" fins
• Weatherproof high-temperature silicone gaskets
• Specular vacuum-metallized polycarbonate reflector
• Maintains 70% of initial lumens at 100,000 hours
• Suitable for wet locations and outdoor environments
• Mercury and UV free, RoHS-compliant components
• 7-step MacAdam Ellipse binning for consistent color
• Warranty: 5 years covering light output, color stability, driver performance, and finish
• Conforms to Dark Sky requirements (IDA Fixture Seal of Approval)
• Buy American Act compliant options available upon request
