WPL6512RJ Meter Socket – Electrical Metering Solutions

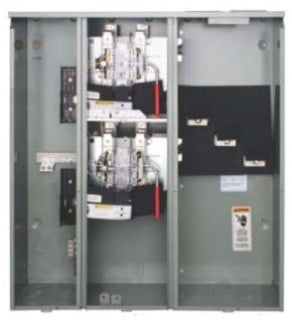

The Siemens WPL6512RJ Meter Socket is a ringless style, low voltage, 1-phase electrical metering device designed for garden-style applications. It features a 120/240 Volt AC voltage rating and supports a current rating of 225 amperes with a main lug current capacity of 600 amperes. This meter socket is suitable for wall mounting and provides flexible cable entry options from the top or bottom. It is UL listed and REACH compliant, making it a reliable choice for electrical distributors and switchgear suppliers serving small apartment buildings, professional, and commercial properties.

Specifications

• Voltage Rating: 120/240 Volt AC
• Current Rating: 225 amperes
• Main Lug Current: 600 amperes
• Circuit Configuration: 1-Phase
• Number of Positions: 5
• Mounting Type: Wall
• Dimensions: 10.5 Inch Width x 50.5 Inch Depth x 58.5 Inch Height
• Number of Cutouts: 13
• Cutout Sizes: 2 x (4, 3-1/2, 3, 2-1/2, 2 Inch), 8 x (2-1/2, 2, 1-1/2, 1 Inch), 3 x (1, 3/4, 1/2 Inch)
• Terminal Strip Type: 3 x 2 Stud
• Product Weight: 161 lbs
• Approval: UL Listed
• Compliance: REACH Compliant

Features

• Ringless style with lever bypass for enhanced safety and ease of use
• Side mounted handles for easier lifting and installation
• Provisions for one, two, or three incoming conductors per have and neutral (field installed lugs)
• 225 amp branch tenant provisions rated at 100,000 AIC for reliable fault current interruption
• Individual split cover for secure compartmentalization
• Outdoor surface mounted enclosure suitable for garden-style applications
• Barriered, sealable compartment for unmetered current-carrying parts
• Top or bottom cable entry for flexible wiring
• Bottom and rear branch wiring exits, with neutral and ground at bottom only
• ANSI #61 light gray electrodeposited paint on G90 galvanized steel for corrosion resistance
