WP4SC400QTW Wallpack Lighting Fixture

The WP4SC400QTW by RAB is a durable wallpack lighting fixture designed for commercial and industrial outdoor applications. It provides efficient high-intensity illumination using a 400-watt ED37 lamp, making it suitable for electrical distributors, lighting solutions providers, and switchgear suppliers requiring reliable exterior lighting. The fixture is engineered with a precision die-cast aluminum housing and prismatic glass refractor to minimize glare and maximize light distribution.

Specifications

• Manufacturer: RAB
• Model Number: WP4SC400QTW
• Input Wattage: 464 watts
• Lumens: 50,000 lumens
• Efficacy: 107 lumens per watt
• Weight: 29.9 lbs

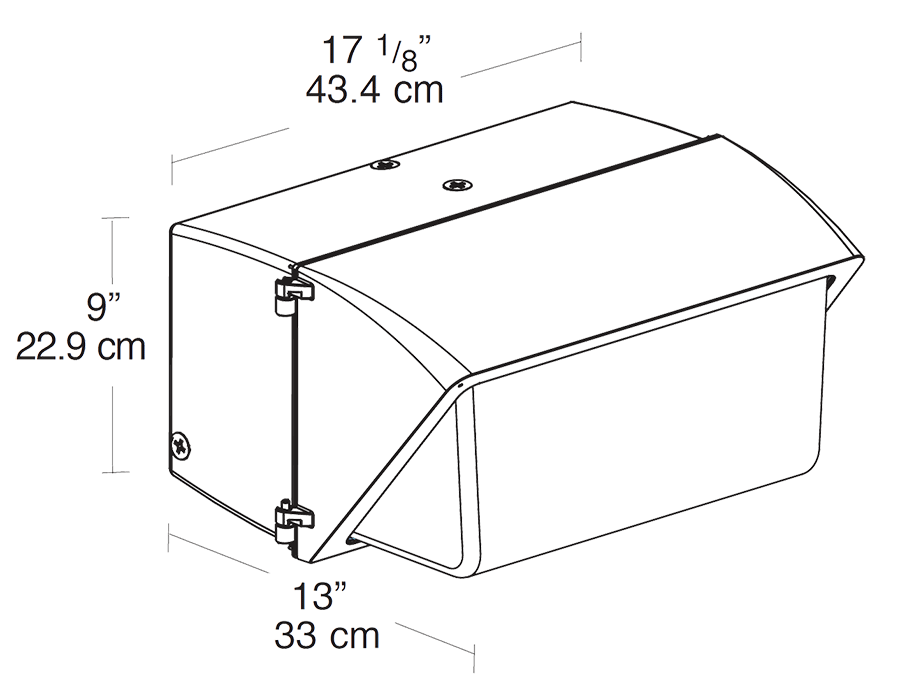

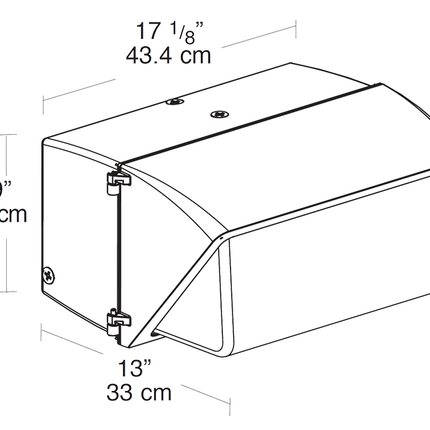

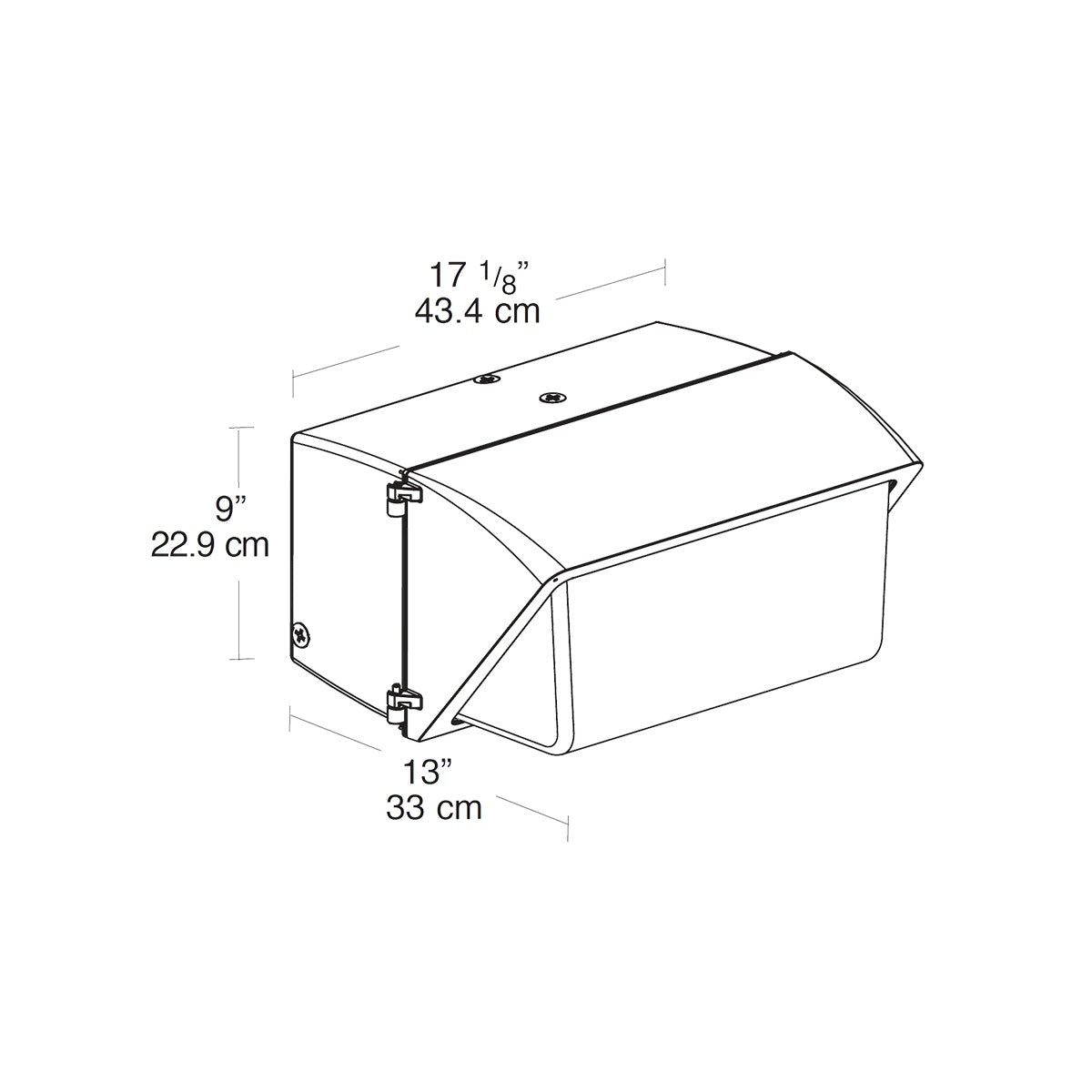

• Dimensions: 17 1/8" (43.4 cm) width x 13" (33 cm) depth x 9" (22.9 cm) height
• Voltage Compatibility: 120, 208, 240, 277 Volts (Quad Tap)
• Lamp Type: 400W ED37 High Pressure Sodium (HPS)
• UL Listed for wet locations

Features

• Die-cast aluminum housing with durable polyester powder coating
• Hinged refractor frame opens and remains captive for easy relamping
• Specular anodized aluminum reflector removable for installation
• Prismatic borosilicate glass refractor designed to minimize glare and optimize light throw
• Continuous silicone rubber gasket for weather sealing
• Symmetrical light pattern to maximize spacing between fixtures
• Long life lamp included with approximately 24,000 hours
• Complies with Buy American Act upon request
