WP4CSC400QT Wall Pack Lighting Fixture

The WP4CSC400QT is a high-performance wall pack lighting fixture designed for outdoor illumination applications. Suitable for electrical distributors and lighting solution providers, this fixture delivers efficient and reliable lighting with a robust construction ideal for commercial and industrial environments. It is engineered to accommodate 400W metal halide lamps, making it a practical choice for wire and cable installations requiring durable switchgear supplier components.

Specifications

• Manufacturer: RAB
• Model Number: WP4CSC400QT
• Input Wattage: 464 watts
• Lumens: 50,000 lumens
• Efficacy: 107 lumens per watt
• Weight: 29.9 lbs
• Color: Bronze

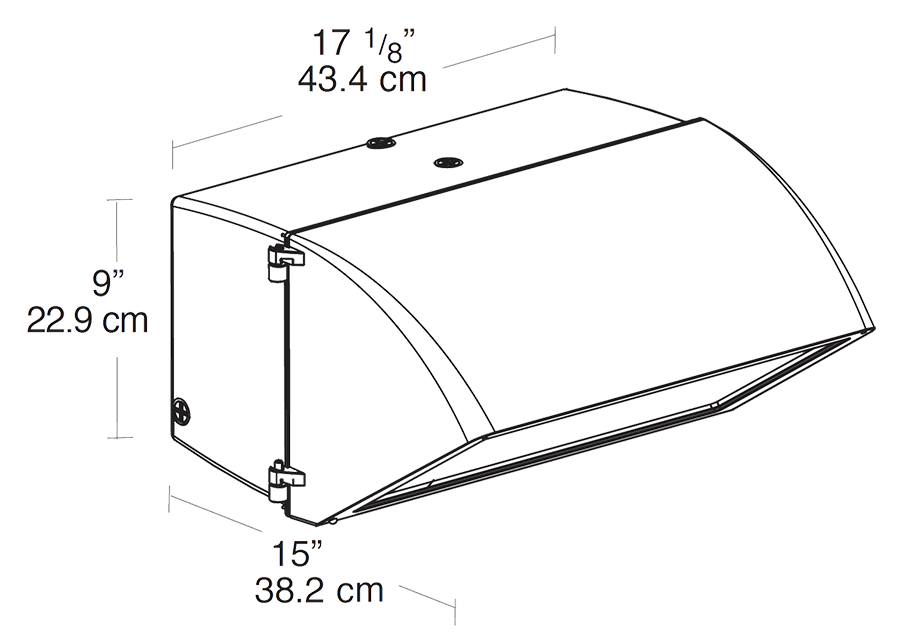

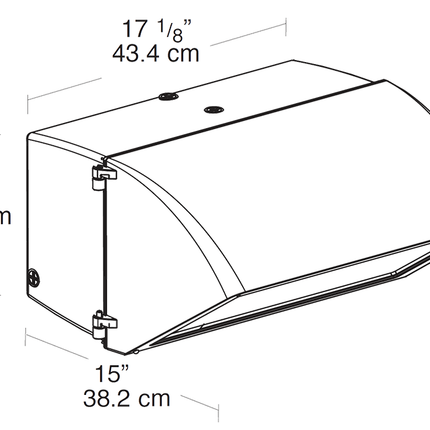

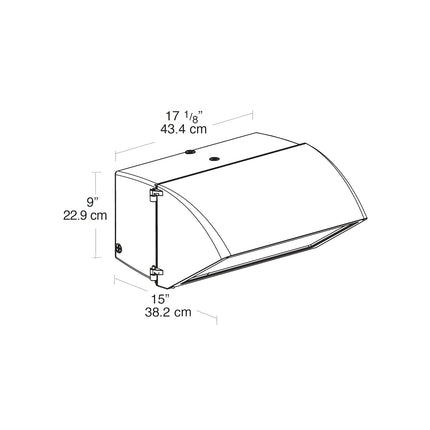

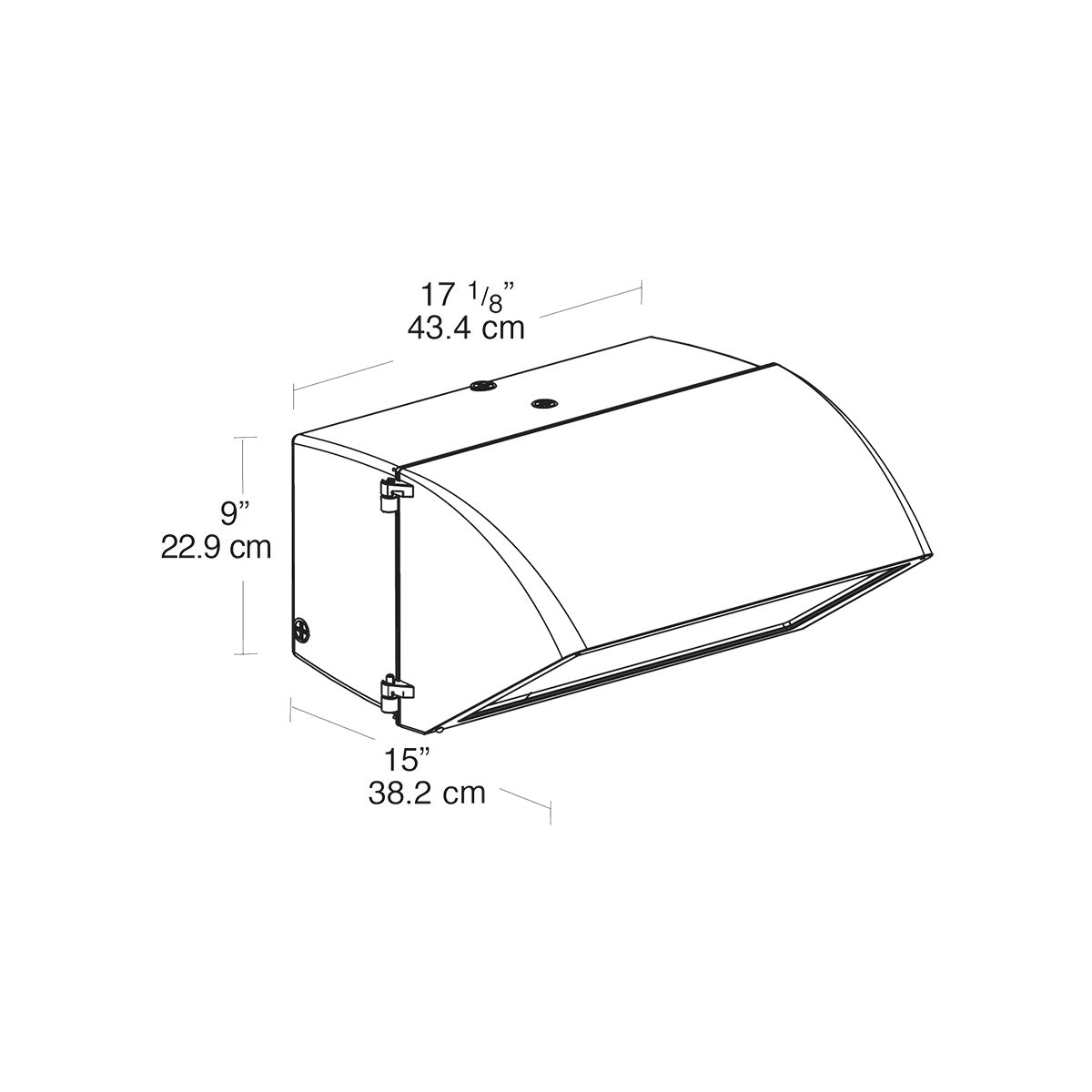

• Dimensions: 17 1/8" (43.4 cm) width x 15" (38.2 cm) depth x 9" (22.9 cm) height
• Lamp Type: ED37, 400W Metal Halide
• Ballast Type: CWA-HPF QT with quad tap for 120, 208, 240, and 277 Volts
• UL Listed for wet locations

Features

• Die-cast aluminum housing with durable polyester powder coating for long-lasting color and protection
• Hinged refractor frame with continuous silicone rubber gasket for easy relamping and weather sealing
• Specular anodized aluminum reflector removable for installation and optimized symmetrical light distribution
• Prismatic tempered borosilicate glass refractor designed to minimize glare and direct light downward and outward
• Long-life lamp included with 24,000 hour rated life
• Fixture compatible with 120, 208, 240, and 277 Volt supply wiring
• Compliant with Buy American Act upon request

Downloads & Links

• Spec Sheet
• LM79
