WP2CSN150 Wall Pack LED Lighting Fixture

The WP2CSN150 is a durable outdoor wall pack lighting fixture designed for commercial and industrial applications. Manufactured by RAB, this fixture provides efficient, high-output illumination ideal for building exteriors, walkways, and perimeter lighting. It is suitable for electrical distributors and lighting solutions providers focusing on wire and cable compatibility and switchgear supplier requirements for outdoor lighting.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WP2CSN150
• Input Wattage: 170 watts
• Lumens: 16,000 lumens
• Efficacy: 94 lumens per watt
• Weight: 13.4 lbs
• Color: Bronze
• Lamp Type: ED17, 150W
• Lamp Life: 24,000 hours
• Ballast Type: R-NPF 120V, 4.5/3.2A
• UL Listed: Suitable for wet locations
• Housing: Die-cast aluminum with 1/2" NPS tapped holes for conduit or photocontrol
• Reflector: Specular anodized aluminum, removable
• Cutoff Lens: Tempered glass
• Optical Refractor: Prismatic optics to minimize glare and direct light downward

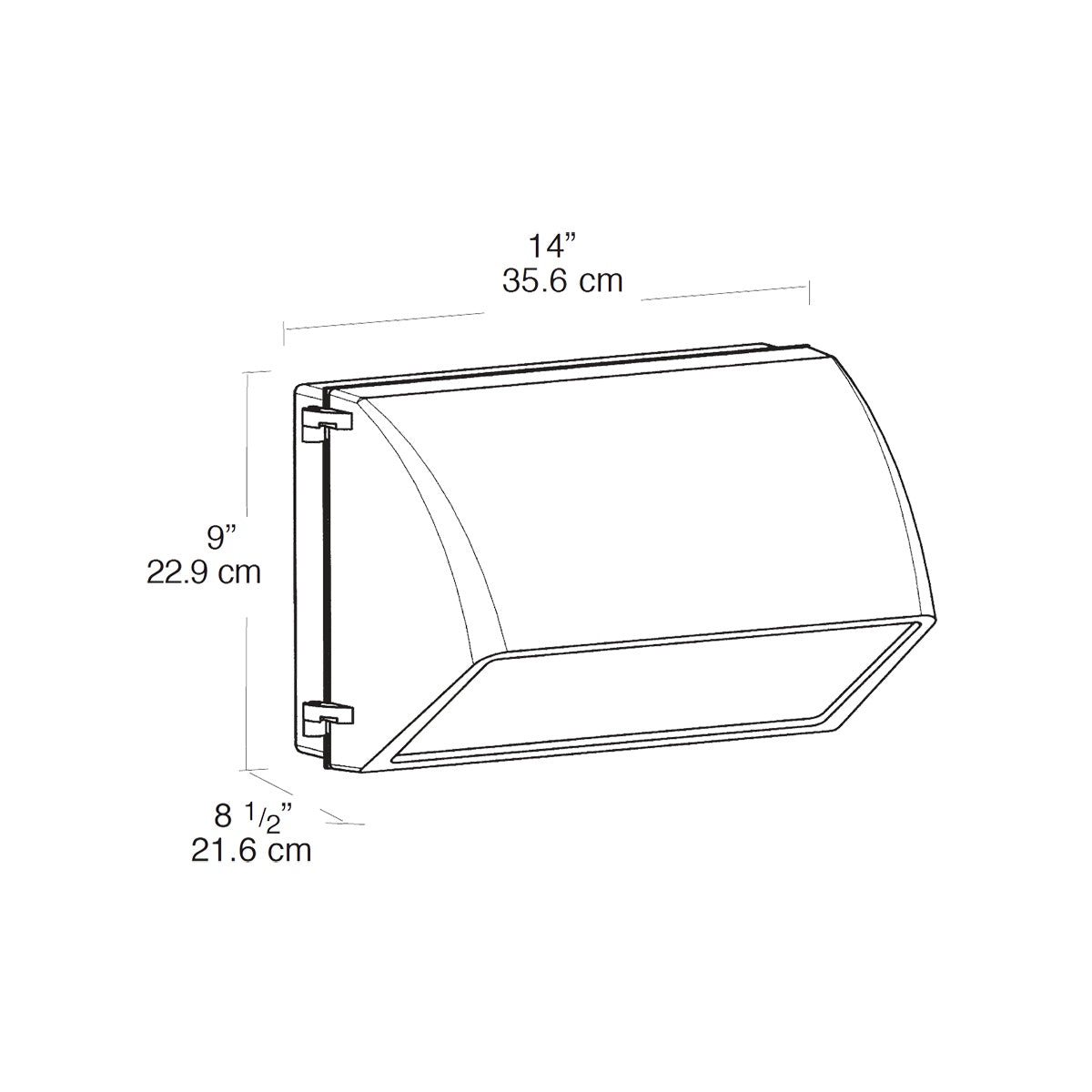

• Dimensions: 14" W x 9" H x 8.5" D (35.6 cm x 22.9 cm x 21.6 cm)

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Tempered glass refractor and lens for durability and optical clarity
• Drilling template included for easy junction box mounting
• Silicone gasket maintains weatherproof seal during relamping
• Top, side, and back conduit openings for versatile wiring options
• Cutoff glare shield for friendly, controlled lighting
• Long-life 150W lamp included
• Compliant with Buy American Act upon request
