WP2CH150PSQW Wall Pack Lighting Fixture

The WP2CH150PSQW by RAB is a durable outdoor wall pack designed for efficient lighting applications. Ideal for use by electrical distributors and lighting solutions providers, this fixture delivers high-performance illumination suitable for commercial and industrial environments. It features a precision die-cast aluminum housing and tempered glass components, ensuring long-lasting durability and reliable operation. This product supports wire and cable installation through multiple conduit openings and is suitable for wet locations, making it a practical choice for switchgear suppliers and electrical contractors.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WP2CH150PSQW
• Input Wattage: 190 watts
• Lumens: 14,000 lumens
• Efficacy: 73 lumens per watt
• Weight: 17.6 lbs
• Color: White

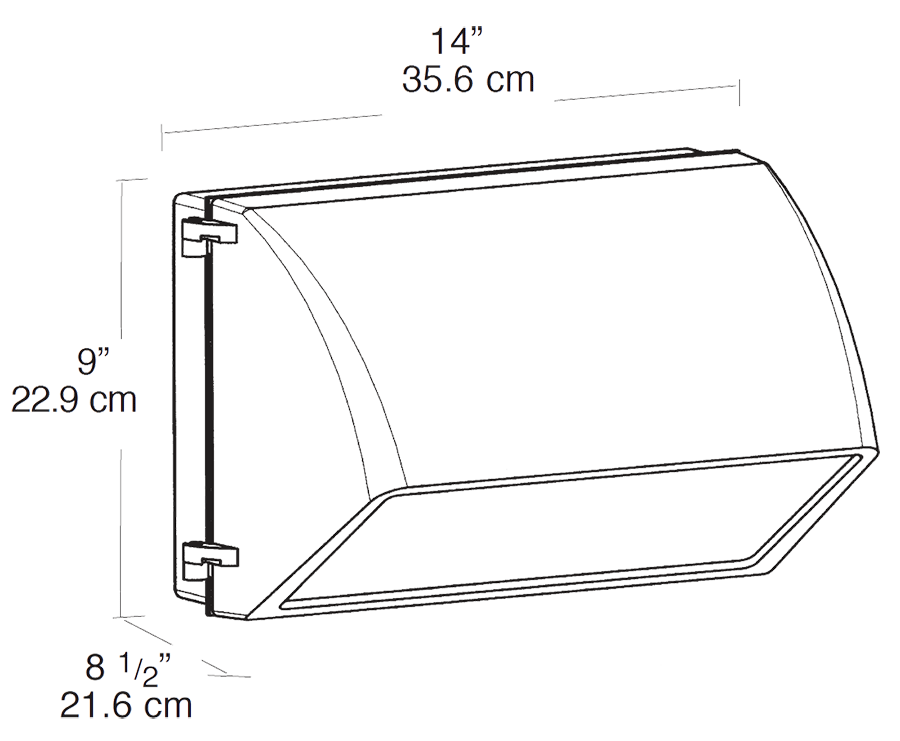

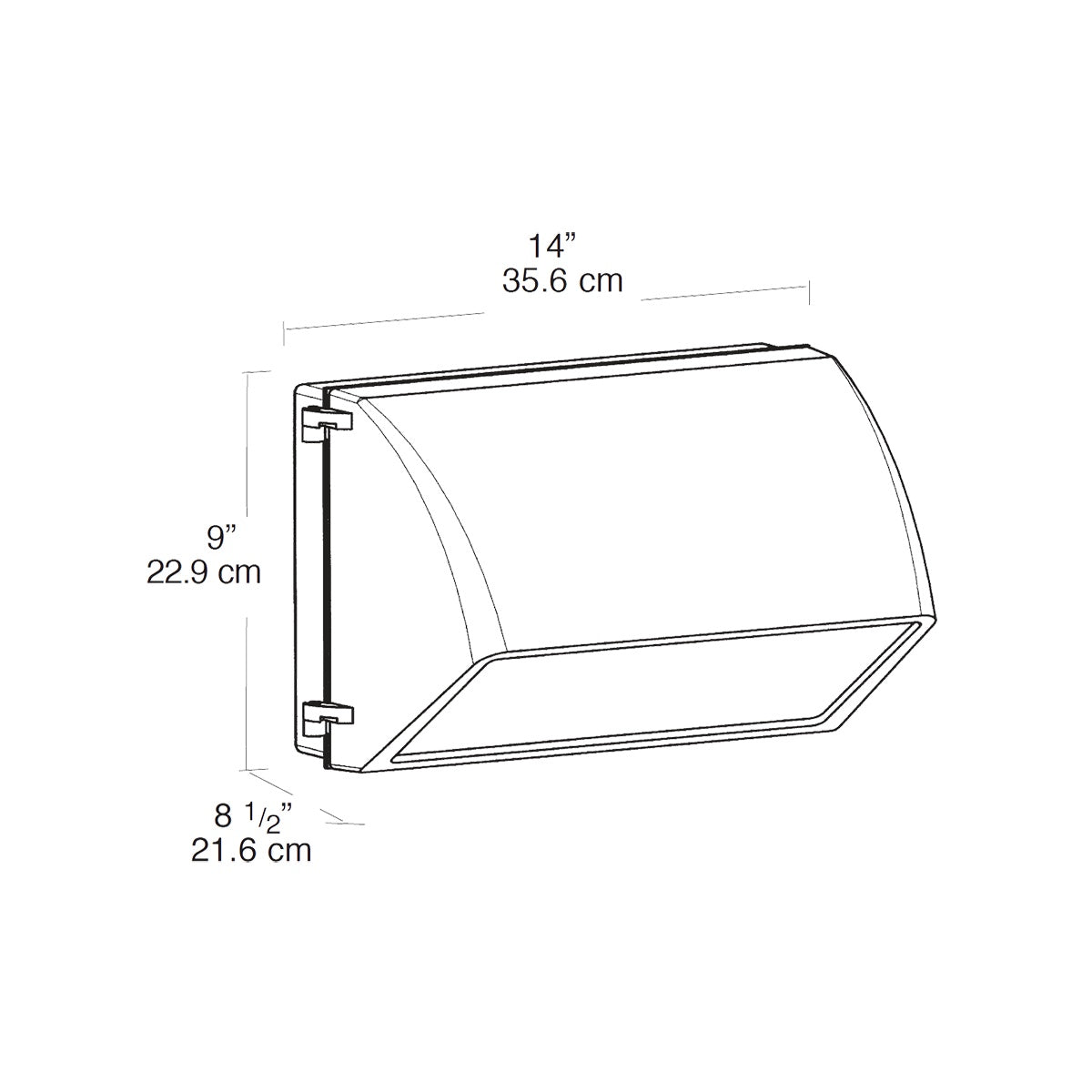

• Dimensions: 14" W x 9" H x 8.5" D (35.6 cm x 22.9 cm x 21.6 cm)
• Lamp Type: ED17/U, 150W Pulse Start Metal Halide
• Lamp Life: 15,000 hours
• Ballast Type: HX-HPF QT
• UL Listed: Suitable for wet locations

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Tempered glass refractor and cutoff lens for glare control and durability
• Prismatic optics minimize glare and direct light downward and outward
• Hinged refractor frame with continuous silicone rubber gasket for weatherproof sealing
• Top, side, and back conduit openings for flexible wiring and photocontrol installation
• Drilling template for easy mounting on standard junction boxes
• Long life pulse start metal halide lamp included for enhanced lamp life and color uniformity
• Cutoff glare shield provides friendly lighting with minimized light pollution

Downloads & Links

• Instructions
• Spec Sheet
