WP2CH150PSQ Outdoor Wall Pack Lighting

The WP2CH150PSQ is a durable outdoor wall pack lighting fixture designed for commercial and industrial applications. Manufactured by RAB, this fixture provides efficient illumination with a pulse start metal halide lamp, making it suitable for electrical distributors and lighting solutions providers. It is engineered for wet locations and can be integrated into wire and cable systems with ease, making it a reliable choice for switchgear suppliers and electrical contractors.

Specifications

• Manufacturer: RAB
• Model Number: WP2CH150PSQ
• Input Wattage: 190 watts
• Lumens: 14,000 lumens
• Efficacy: 73 lumens per watt
• Weight: 18.2 lbs
• Color: Bronze
• Lamp Type: ED17/U Pulse Start Metal Halide
• Lamp Life: 15,000 hours
• Housing: Die-cast aluminum with polyester powder coating
• Reflector: Specular anodized aluminum, removable
• Cutoff Lens: Tempered glass
• Refractor: Prismatic optics with heat resistant borosilicate glass

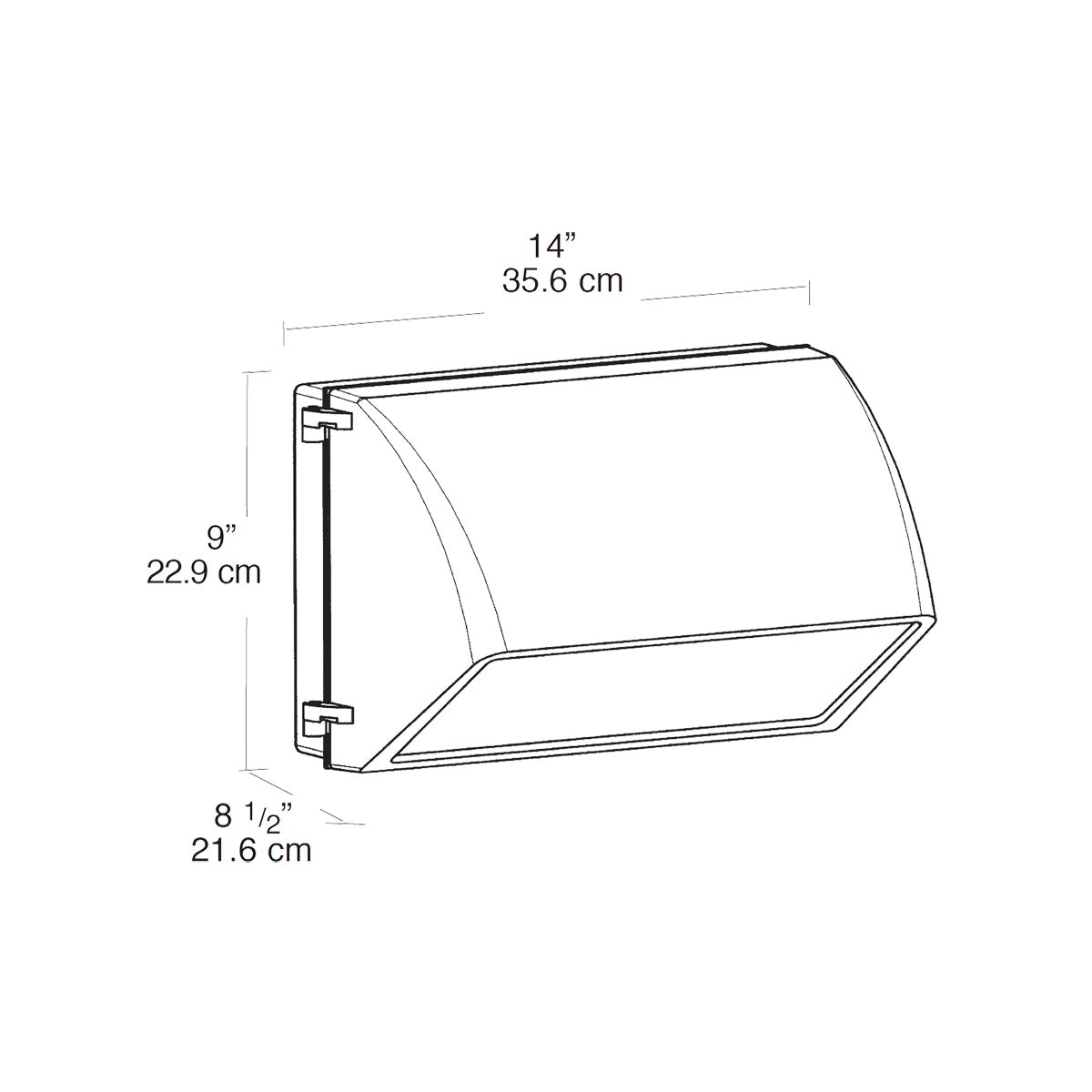

• Dimensions: 14" W x 9" H x 8.5" D (35.6 cm x 22.9 cm x 21.6 cm)
• UL Listed for wet locations

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Tempered glass refractor and lens for durability and optical performance
• Drilling template for easy mounting to standard junction boxes
• Silicone gasket ensures weatherproof seal and remains in place during relamping
• Top, side, and back conduit openings for flexible wiring options
• Cutoff glare shield designed for friendly lighting with minimal light pollution
• Long life pulse start metal halide lamp included for improved lamp life and color uniformity

Downloads & Links

• Instructions
• Spec Sheet
