WP2CH100QT/PC Outdoor Wall Pack Lighting

The WP2CH100QT/PC by RAB is a durable outdoor wall pack luminaire designed for efficient exterior lighting applications. It is suitable for electrical distributors and lighting solutions providers seeking reliable fixtures for commercial and industrial outdoor environments. The fixture is constructed with precision die-cast aluminum housing and features a tempered glass refractor and lens to ensure long-lasting performance and optimal light distribution.

Specifications

• Manufacturer: RAB
• Model Number: WP2CH100QT/PC
• Input Wattage: 129 watts
• Lumens: 9,000 lumens
• Efficacy: 69 lumens per watt
• Weight: 16.5 lbs

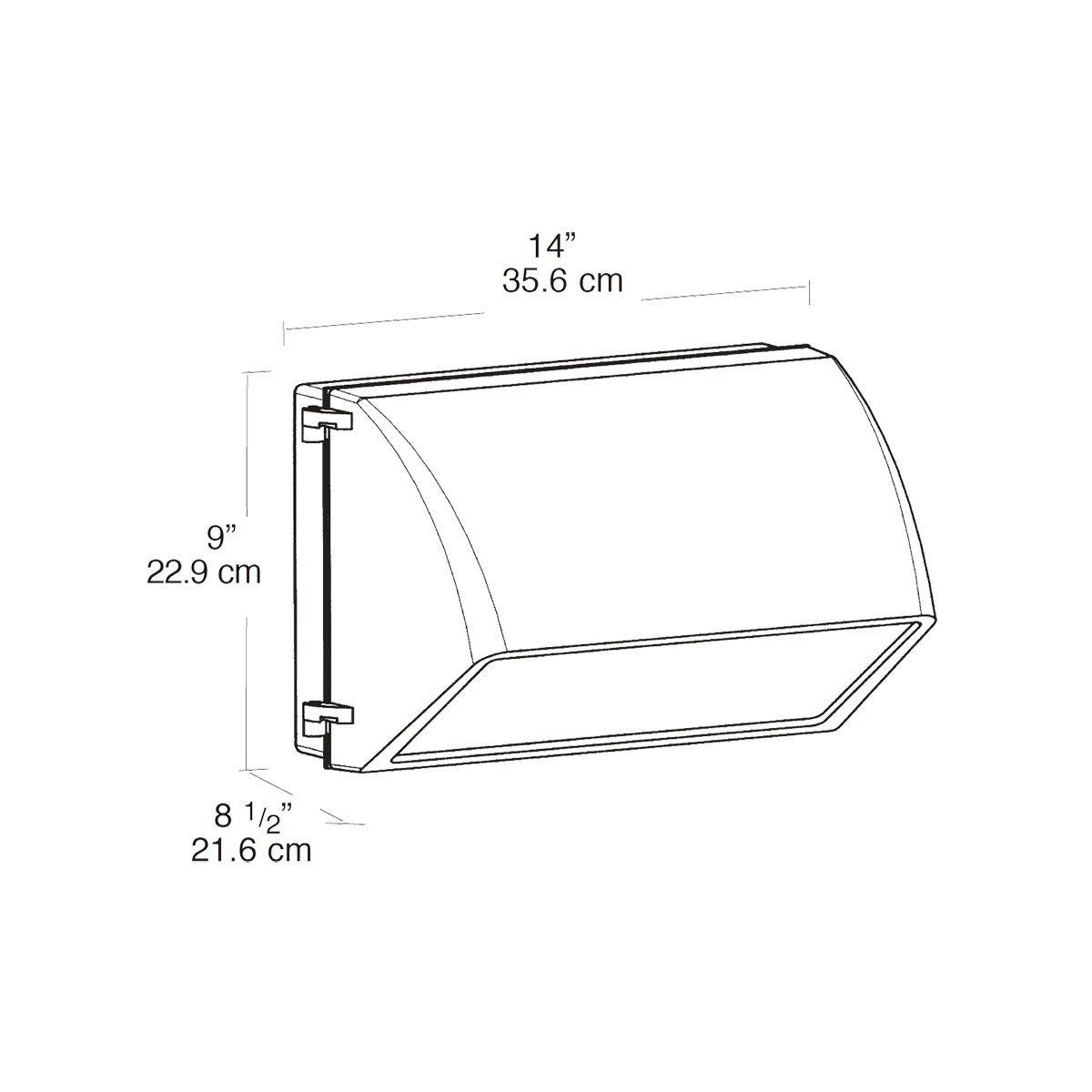

• Dimensions: 14" W x 9" H x 8.5" D (35.6 cm x 22.9 cm x 21.6 cm)
• Color: Bronze
• Lamp Type: ED17 Metal Halide, 100W
• Ballast Type: HX-HPF QT
• Voltage Compatibility: 120, 208, 240, and 277 volts (quad tap)
• Photocell: 120V button photocell included (compatible only with 120V)
• UL Listed for wet locations
• EISA 2007 Compliant for metal halide ballast efficiency

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Tempered glass refractor and lens for enhanced durability and optical performance
• Hinged refractor frame with continuous silicone rubber gasket for weatherproof sealing
• Specular anodized aluminum reflector removable for installation
• Symmetrical light pattern to maximize fixture spacing
• Cutoff glare shield for friendly lighting control
• Top, side, and back conduit openings for versatile wiring options
• Long life lamp included, rated for 15,000 hours
• Suitable for use with 90°C supply wiring when routed 3" away from ballast
