WP2CH100QT
SKU: #118283
Part: #WP2CH100QT
UPC: 019813186016
WP2CH100QT
SKU: #118283
Part: #WP2CH100QT
UPC: 019813186016
Next day delivery
Description
WP2CH100QT Wall Pack Lighting Fixture
The WP2CH100QT is a durable wall pack lighting fixture designed for outdoor use, suitable for electrical distributors and lighting solutions providers. It delivers 9,000 lumens at 129 watts input, making it an efficient choice for commercial and industrial lighting applications. This fixture is ideal for wire and cable installations requiring a robust, weather-resistant lighting solution with precise optical control.
Specifications
- Manufacturer: RAB
- Model Number: WP2CH100QT
- Lumens: 9,000 lumens
- Efficacy: 69 lumens per watt
- Input Wattage: 129 watts
- Weight: 18.1 lbs

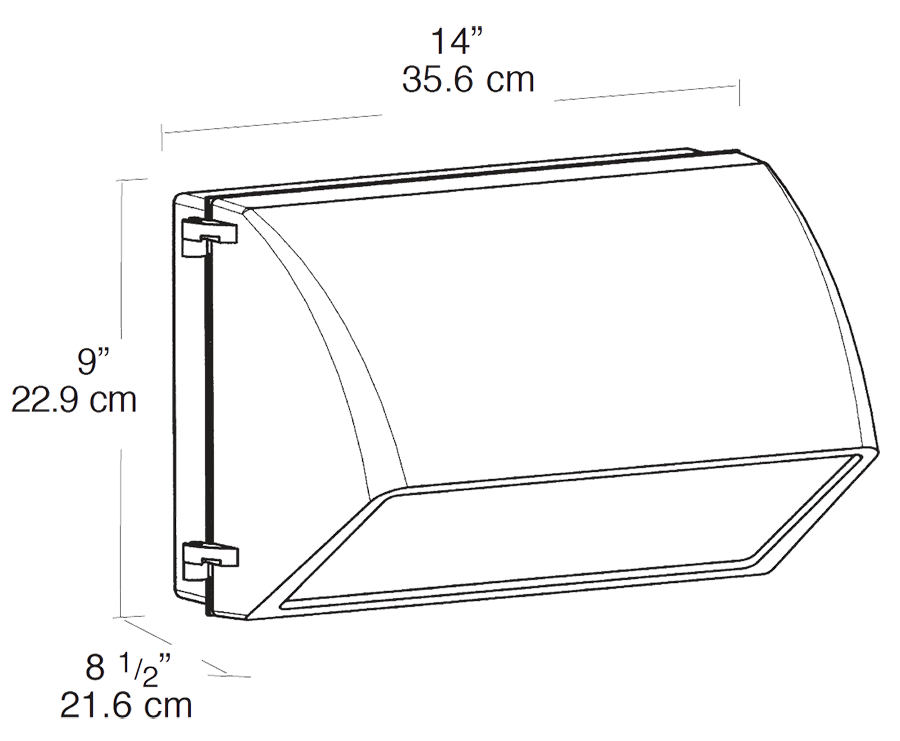

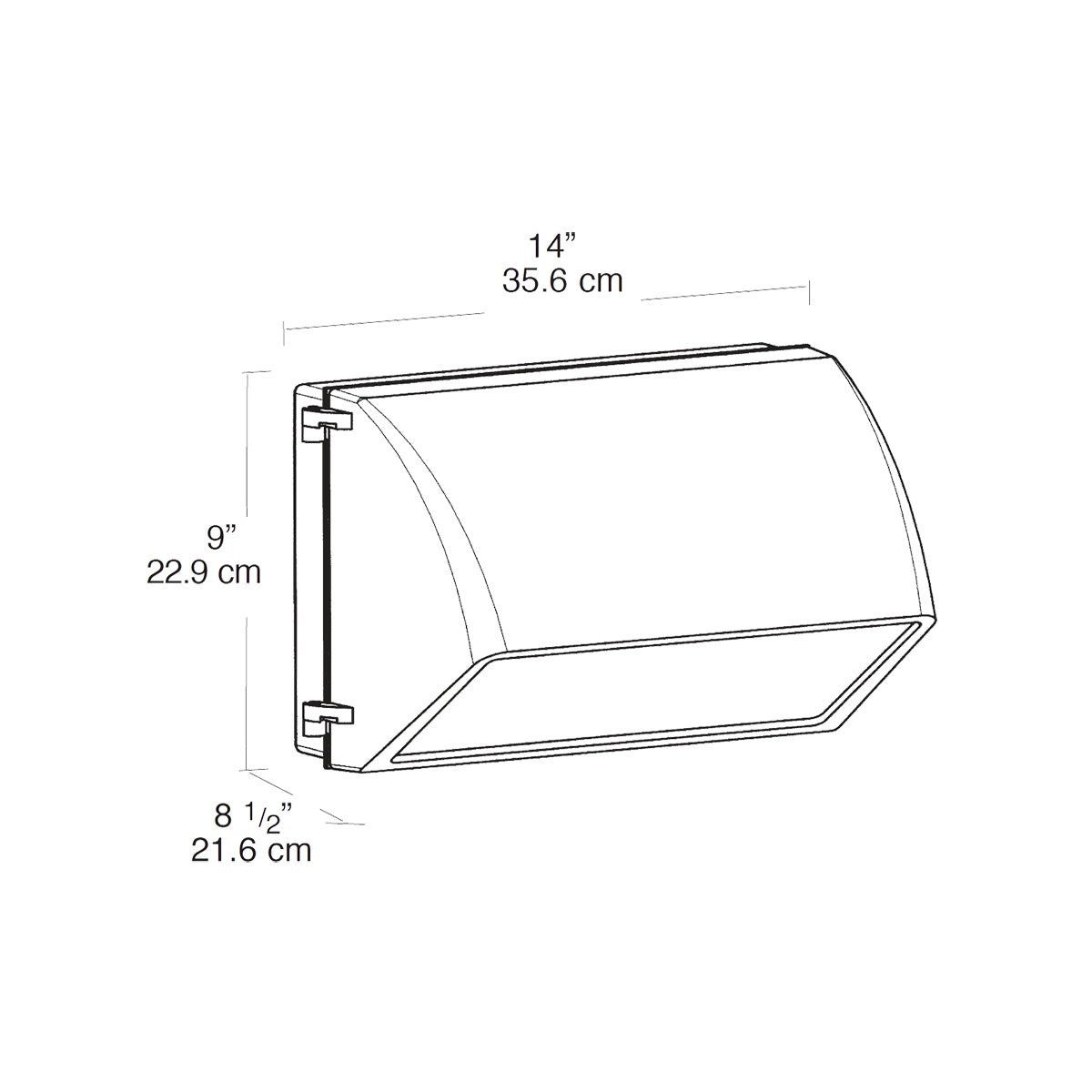

- Dimensions: 14" W x 9" H x 8.5" D (35.6 cm x 22.9 cm x 21.6 cm)
- Color: Bronze
- Lamp Type: ED17, 100W Metal Halide
- Ballast Type: HX-HPF QT
- Voltage Compatibility: 120V, 208V, 240V, 277V (Quad Tap)
- UL Listed: Suitable for wet locations
- EISA 2007 Compliant: Metal halide ballast efficiency
Features
- Precision die-cast aluminum housing with durable polyester powder coating
- Tempered glass refractor and lens for durability and optical clarity
- Prismatic optics designed to minimize glare and direct light down and out
- Continuous silicone rubber gasket for weatherproof sealing
- Hinged refractor frame for easy maintenance and relamping
- Top, side, and back conduit openings for flexible wiring
- Cutoff glare shield for friendly lighting and reduced light pollution
- Long life lamp included (15,000 hours)
- Drilling template provided for easy box mounting
- Complies with Buy American Act upon request
