WP1SN50W Outdoor Wall Pack Lighting Fixture

The WP1SN50W is a durable outdoor wall pack lighting fixture designed for commercial and industrial applications. It provides efficient, long-lasting illumination suitable for electrical distributors, lighting solutions providers, and switchgear suppliers looking for reliable exterior lighting. This fixture features a die-cast aluminum housing with a hinged refractor and silicone gasket for weather resistance, making it suitable for wet locations.

Specifications

• Manufacturer: RAB
• Model Number: WP1SN50W
• Input Wattage: 62 watts
• Lumens: 4,000 lumens
• Efficacy: 64 lumens per watt
• Weight: 6.8 lbs
• Color: White
• Lamp Type: ED17, 50W included
• Lamp Life: 24,000 hours
• Ballast Type: R-NPF 120V

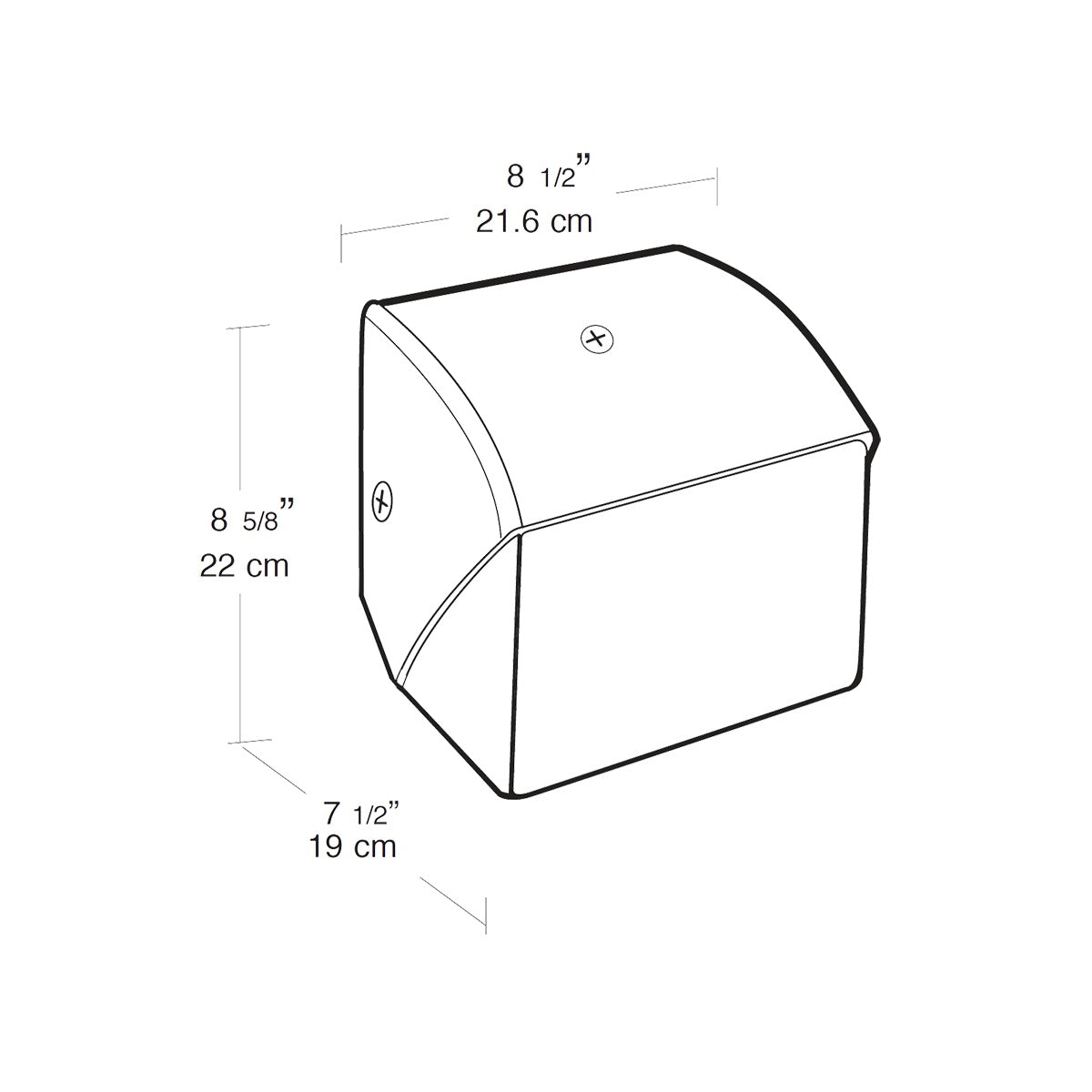

• Dimensions: 8 1/2" W x 8 5/8" H x 7 1/2" D (21.6 cm x 22 cm x 19 cm)
• UL Listed for wet locations

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Hinged refractor door with captive swing for easy relamping
• Continuous one-piece silicone rubber gasket for weather sealing
• Cutoff glare shield for reduced light pollution and "friendly" lighting
• Easy access conduit openings on top, side, and back for flexible wiring
• Removable semi-specular anodized aluminum reflector for installation and maintenance
• Drilling template included for easy wall box mounting

Downloads & Links

• Spec Sheet
