WP1H70W Lighting Fixture by RAB – Efficient Outdoor Lighting Solution

The WP1H70W is a durable outdoor lighting fixture designed for reliable illumination in wet locations. Manufactured by RAB, this product is suitable for electrical distributors and lighting solutions providers seeking a robust fixture with efficient performance. It features a precision die-cast aluminum housing and is ideal for applications requiring long-lasting, high-quality lighting with easy installation and maintenance.

Specifications

• Manufacturer: RAB
• Model Number: WP1H70W
• Input Wattage: 94 watts
• Lamp Lumens: 5,600 lumens
• Efficacy: 59 lumens per watt
• Product Weight: 8.4 lbs

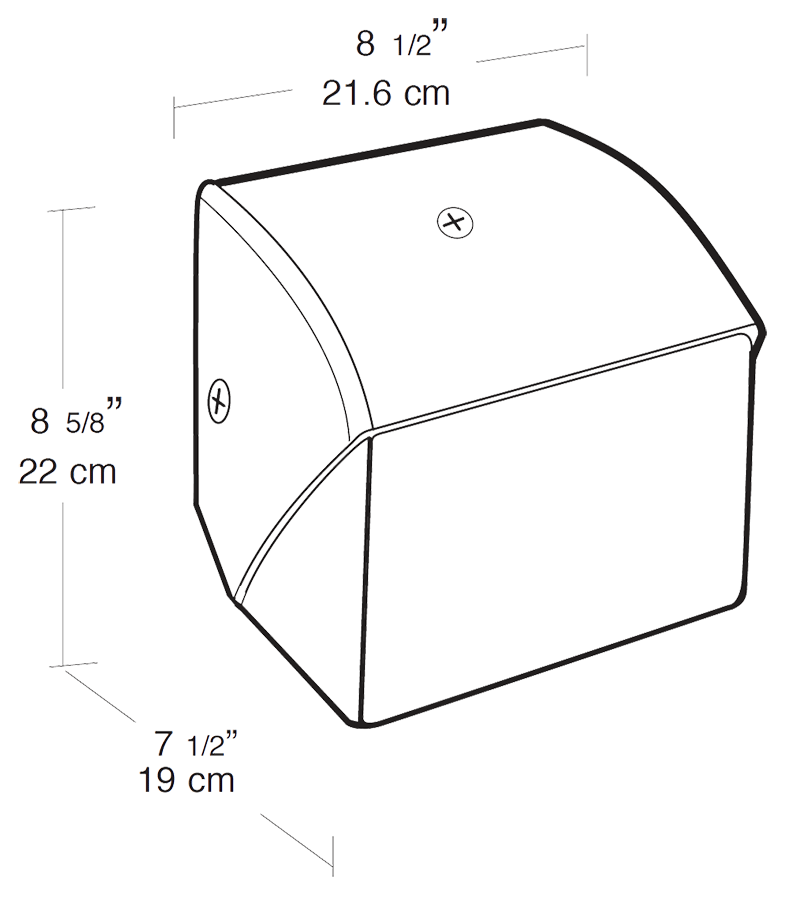

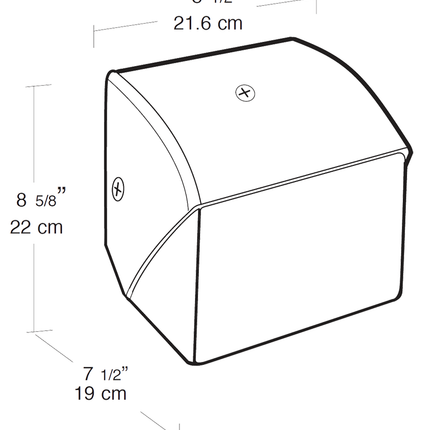

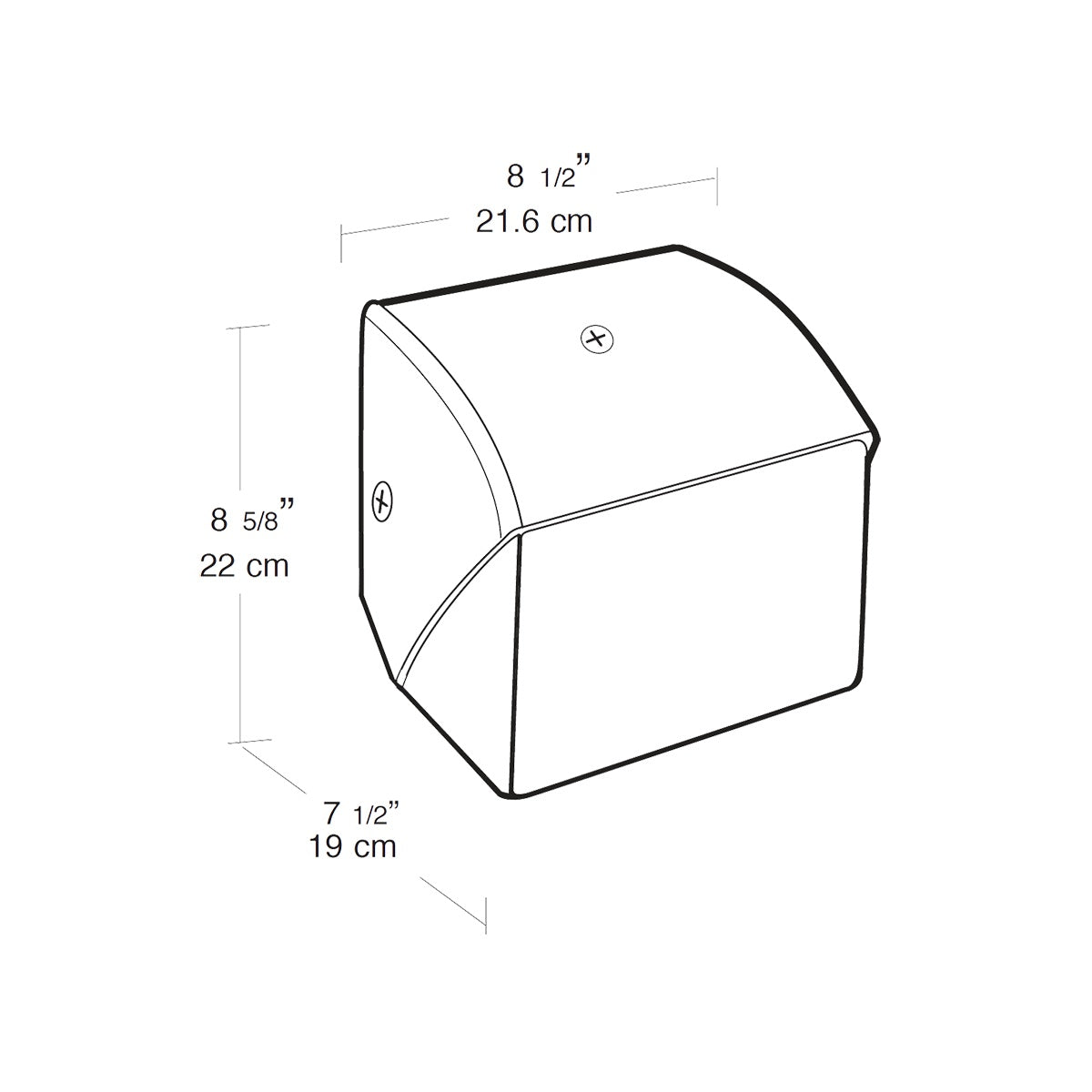

• Dimensions: 8 1/2" W x 8 5/8" H x 7 1/2" D (21.6 cm x 22 cm x 19 cm)
• Color: White
• UL Listed: Suitable for wet locations
• Compliance: EISA 2007 Compliant for metal halide ballast efficiency

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings on top, side, and back for fast internal wiring
• Long life lamp included (70W ED17 lamp with 15,000 hours rated life)
• Silicone gasket ensures a continuous weather-tight seal, remaining in place during relamping
• Cutoff glare shield designed for “friendly” lighting to reduce light pollution
• Hinged door swings open and remains captive for easy relamping and maintenance
• Semi-specular anodized aluminum reflector removable for installation
• Symmetrical light pattern maximizes spacing between fixtures
• Conduit tapped openings (1/2" NPS) on top, both sides, and back for conduit or photocontrol

Downloads & Links

• Spec Sheet
