WP1FCSN50 Die-Cast Aluminum Wall Pack Lighting

The WP1FCSN50 is a durable die-cast aluminum wall pack luminaire designed for outdoor lighting applications. It delivers 4,000 lumens with an efficacy of 64 lumens per watt, operating at 62 watts input power. This lighting solution is suitable for electrical distributors and lighting solutions providers seeking reliable, long-lasting fixtures for wet locations. It features multiple conduit openings and easy mounting options, making it ideal for wire and cable installations in commercial or industrial environments.

Specifications

• Manufacturer: RAB
• Model Number: WP1FCSN50
• Input Wattage: 62 watts
• Lumens: 4,000 lumens
• Efficacy: 64 lumens per watt
• Weight: 7.5 lbs
• Color: Bronze
• Lamp Type: ED17, 50W
• Rated Lamp Life: 24,000 hours
• Ballast Type: R-NPF 120V

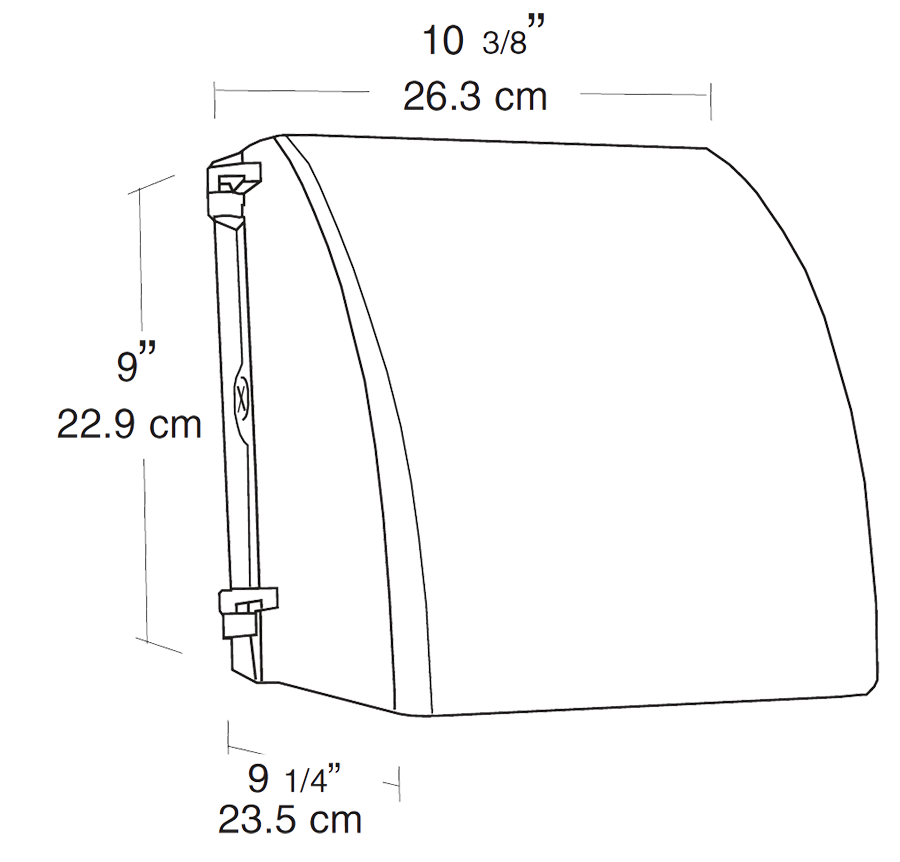

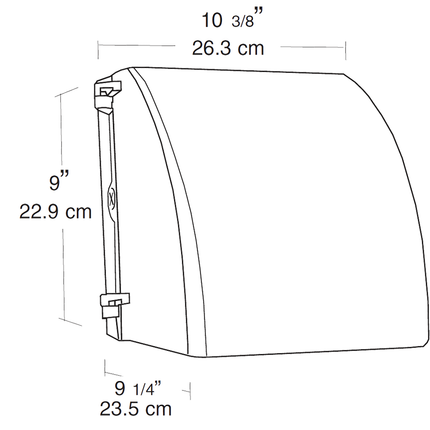

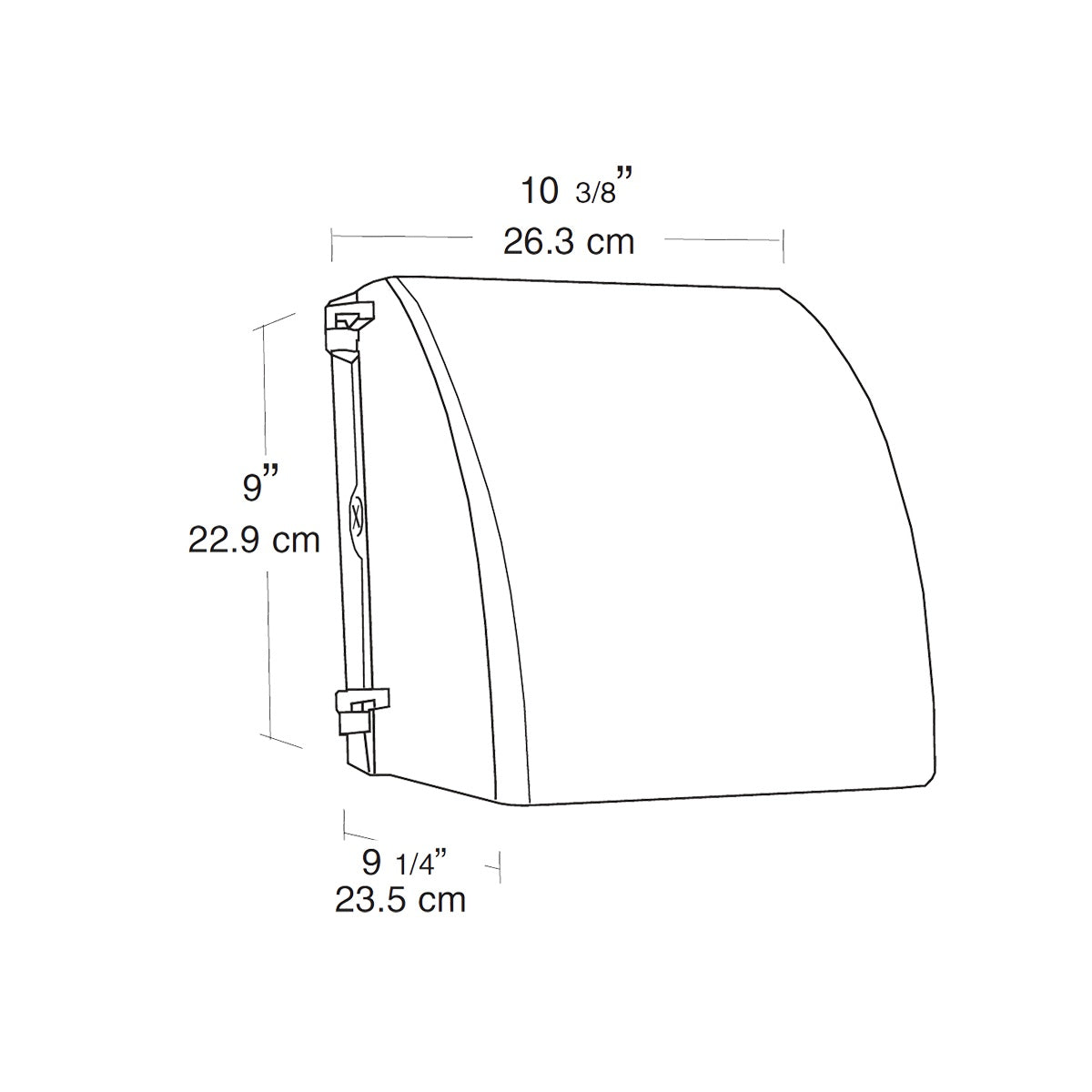

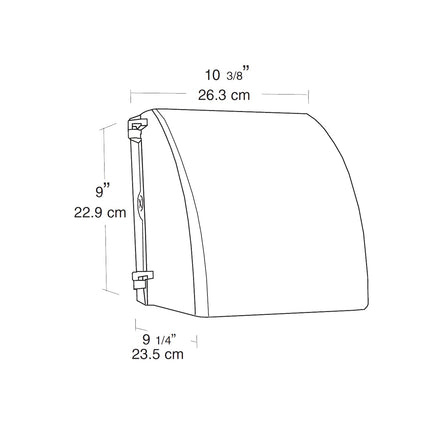

• Dimensions: 10 3/8" W x 9" H x 9 1/4" D (26.3 cm x 22.9 cm x 23.5 cm)
• UL Listed for wet locations

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings on top, side, back, and bottom for fast internal wiring
• Hinged refractor door that swings open and remains captive for easy relamping
• Silicone gasket maintains seal during relamping
• Cutoff glare shield for reduced light pollution and "friendly" lighting
• Capacitor cradle for improved heat absorption
• Knockouts for easy wall box mounting
• Symmetrical semi-specular anodized aluminum reflector for optimized light distribution
