WP1FCSH150QT Industrial Wall Pack Lighting Fixture

The WP1FCSH150QT by RAB is a durable wall pack lighting fixture designed for outdoor electrical distribution and lighting solutions. It is suitable for wet locations and provides efficient illumination with a long-life lamp, making it ideal for commercial and industrial applications requiring reliable wire and cable connections and robust switchgear integration.

Specifications

• Manufacturer: RAB
• Model Number: WP1FCSH150QT
• Input Wattage: 188 watts
• Lumens: 16,000 lumens
• Efficacy: 85 lumens per watt
• Weight: 14.2 lbs

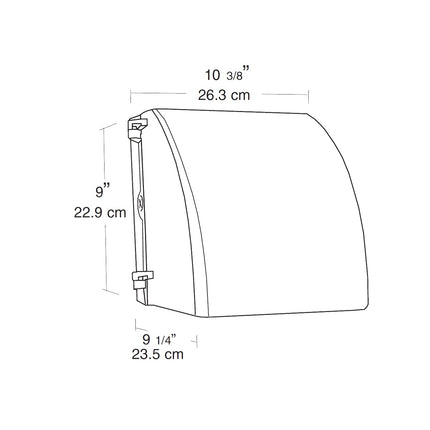

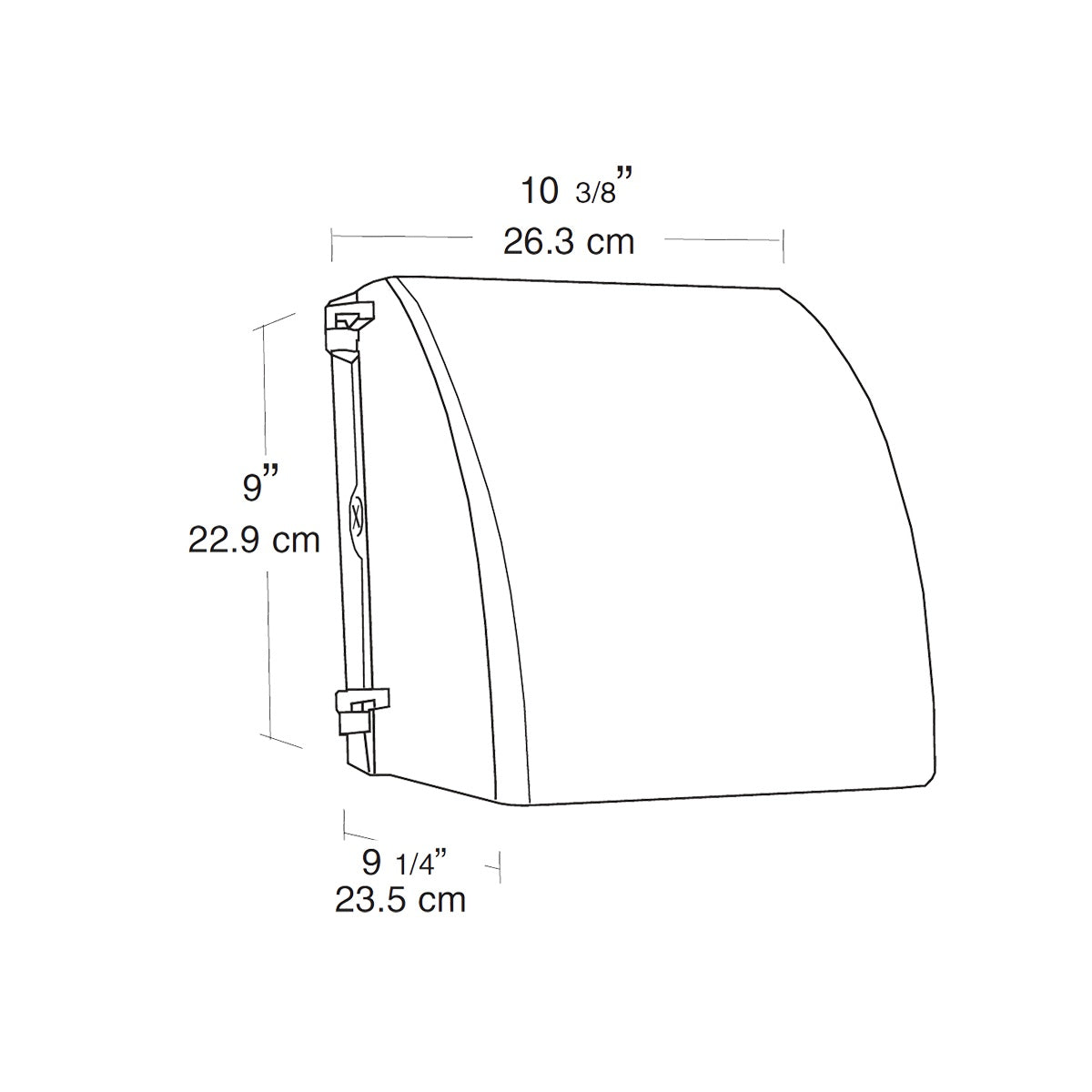

• Dimensions: 10 3/8" W x 9" H x 9 1/4" D (26.3 cm x 22.9 cm x 23.5 cm)
• Voltage Compatibility: 120V, 208V, 240V, 277V
• UL Listed for wet locations

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings on top, side, back, and bottom for fast internal wiring
• Long life 150W ED17 lamp included with 24,000 hours rated life
• Silicone rubber gasket ensures weather-tight seal and remains in place during relamping
• Cutoff glare shield for reduced light pollution and "friendly" lighting
• Hinged door swings open and remains captive for easy relamping and maintenance
• Capacitor cradle designed for better heat absorption
• Knockouts for easy wall box mounting

Downloads & Links

• Spec Sheet
