WP1FCH70QTW/PC Wall Pack Lighting Solutions

The WP1FCH70QTW/PC by RAB is a durable wall pack lighting fixture designed for outdoor electrical distribution and lighting applications. It provides efficient illumination with a long-life lamp, suitable for commercial and industrial environments requiring reliable, high-quality lighting solutions. This product is ideal for electrical distributors and switchgear suppliers seeking robust wire and cable-compatible fixtures for wet locations.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WP1FCH70QTW/PC
• Input Wattage: 90 watts
• Lumens: 5,600 lumens
• Efficacy: 62 lumens per watt
• Product Weight: 11.7 lbs
• Color: White
• Lamp Type: ED17
• Lamp Watts: 70W
• Lamp Life: 15,000 hours
• Ballast Type: HX-HPF QT
• Voltage Compatibility: 120, 208, 240, and 277 volts (Quad Tap)
• THD: 6.1% at 120V, 10.1% at 277V
• Photocell: 120V button photocell included (compatible only with 120V)
• UL Listed for wet locations

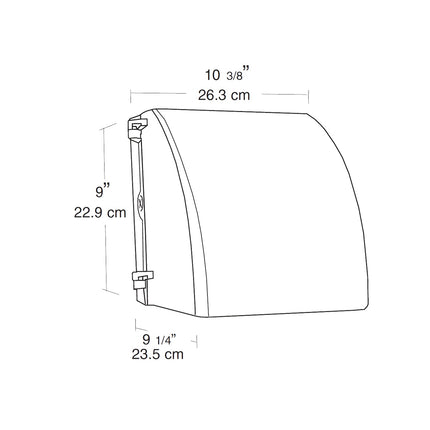

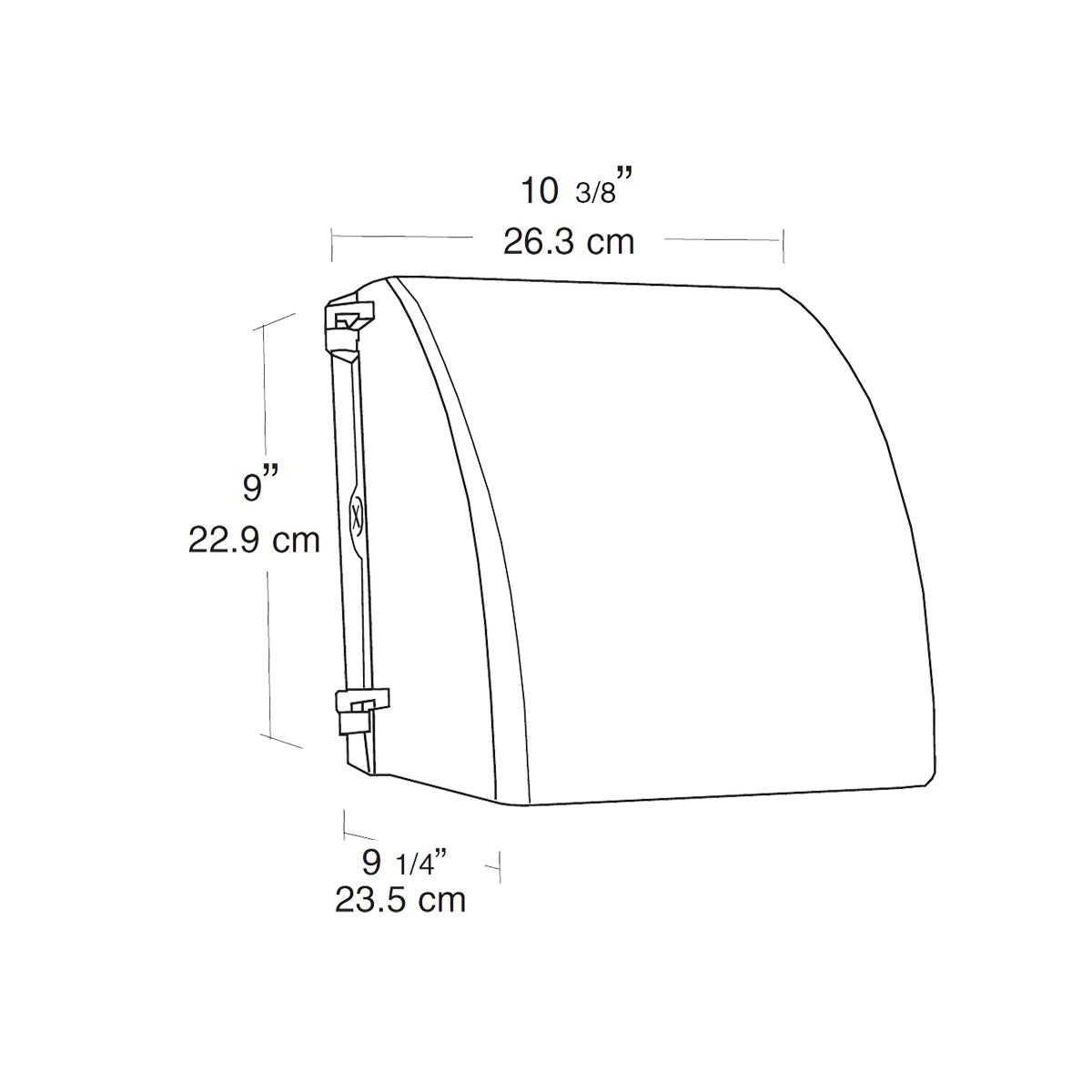

• Dimensions: 10 3/8" W x 9" H x 9 1/4" D (26.3 cm x 22.9 cm x 23.5 cm)

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings and ballasts for fast internal wiring
• Long life lamp included
• Silicone gasket remains in place during relamping
• Cutoff glare shield for "friendly" lighting
• Hinged door swings open and remains captive for easy relamping
• Symmetrical light pattern with semi-specular anodized aluminum reflector
• Continuous one-piece silicone rubber gasket for weather resistance
• 1/2" NPS tapped conduit openings on top, sides, back, and bottom
• EISA 2007 compliant metal halide ballast for longer lamp life and faster startup

Downloads & Links

• Spec Sheet
