WP1FCH70QTW Wall Pack Lighting Solution

The WP1FCH70QTW by RAB is a durable wall pack lighting fixture designed for outdoor illumination applications. Suitable for electrical distributors and lighting solutions providers, this product offers reliable performance with a long-life lamp and is compatible with various voltage inputs, making it ideal for commercial and industrial environments requiring efficient and effective lighting.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WP1FCH70QTW
• Input Wattage: 90 watts
• Lamp Type: ED17
• Lamp Wattage: 70 watts
• Lamp Lumens: 5,600 lumens
• Efficacy: 62 lumens per watt
• Lamp Life: 15,000 hours
• Weight: 11.7 lbs
• Color: White

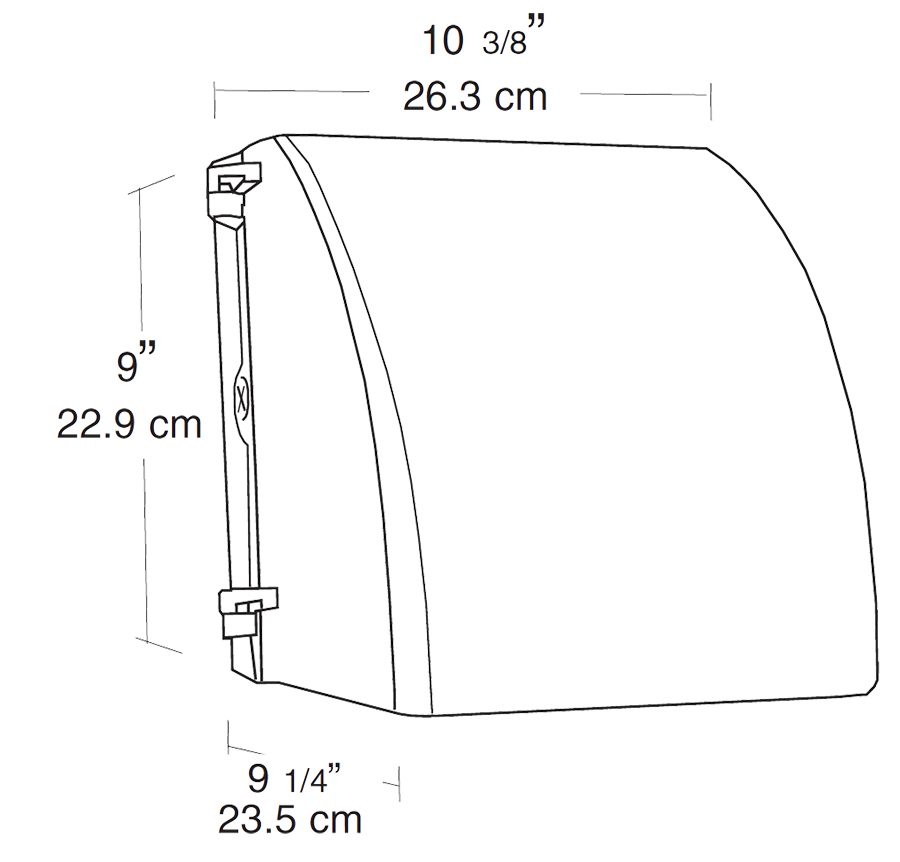

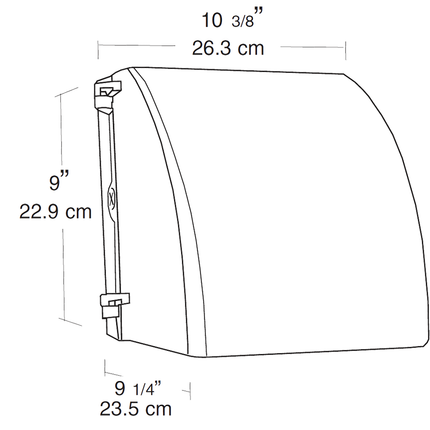

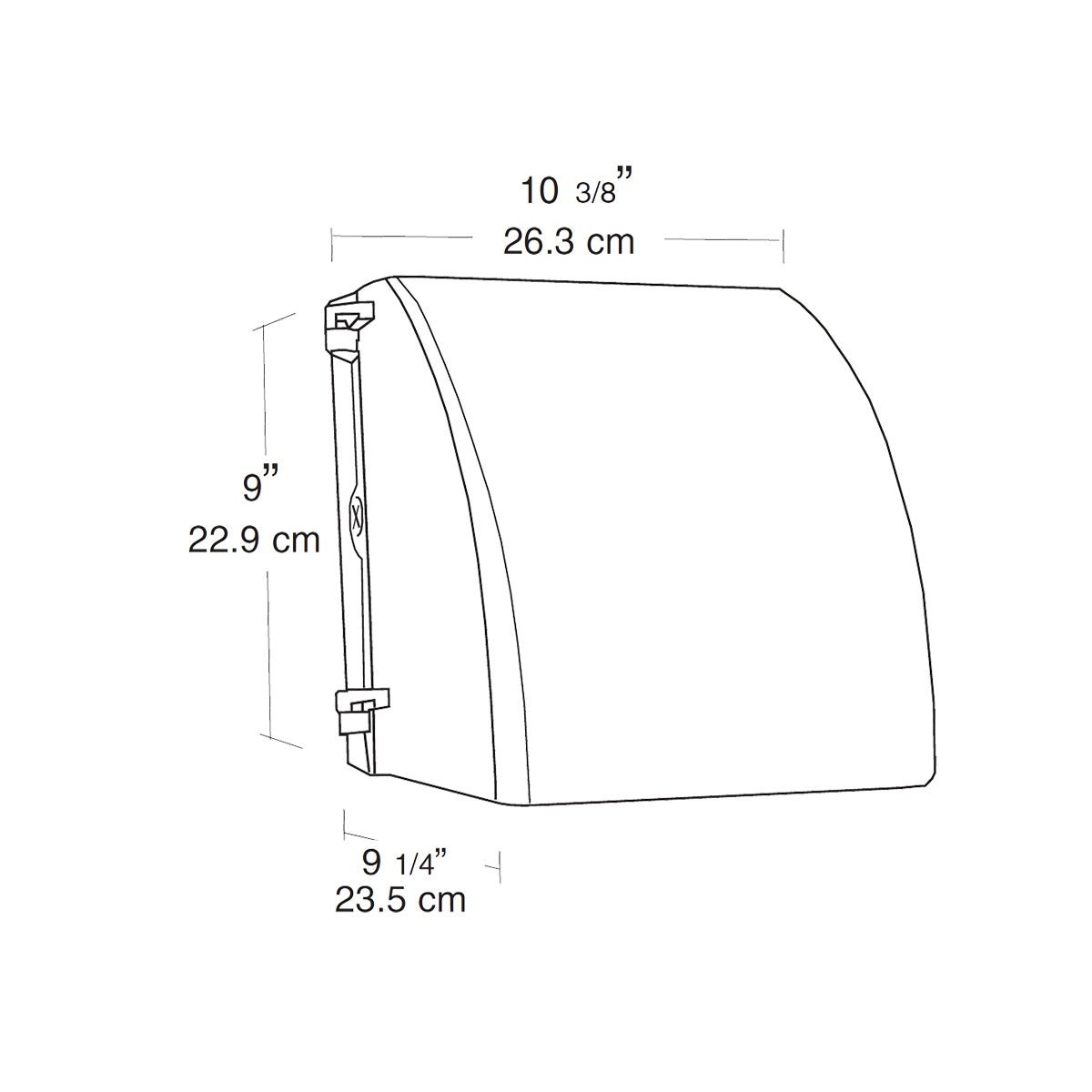

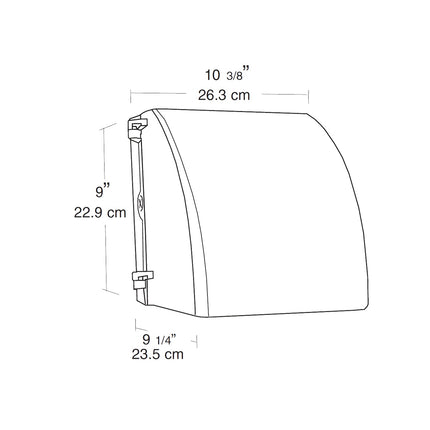

• Dimensions: 10 3/8" W x 9" H x 9 1/4" D (26.3 cm x 22.9 cm x 23.5 cm)
• Voltage Compatibility: 120, 208, 240, and 277 Volts (Quad Tap)
• UL Listed for wet locations
• EISA 2007 Compliant for metal halide ballast efficiency

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings on top, side, back, and bottom for fast internal wiring
• Hinged refractor door that swings open and remains captive for easy relamping
• Silicone rubber gasket ensures weather tight seal and remains in place during relamping
• Cutoff glare shield for reduced light pollution and "friendly" lighting
• Capacitor cradle designed for improved heat absorption
• Knockouts for easy wall box mounting
• Symmetrical semi-specular anodized aluminum reflector removable for installation
• Compliant with Buy American Act upon request

Downloads & Links

• Spec Sheet
