WP1CH70 Outdoor Wall Pack Lighting

The WP1CH70 is a durable outdoor wall pack luminaire designed for commercial and industrial lighting applications. It provides efficient illumination with a lamp output of 5,600 lumens at 70 watts, making it suitable for electrical distributors and lighting solutions requiring reliable, energy-efficient lighting. This product is ideal for use in exterior environments, offering compatibility with standard conduit and photocontrol wiring setups.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: WP1CH70
• Lumens: 5,600 lumens
• Efficacy: 59 lumens per watt
• Input Wattage: 94 watts
• Weight: 10.2 lbs

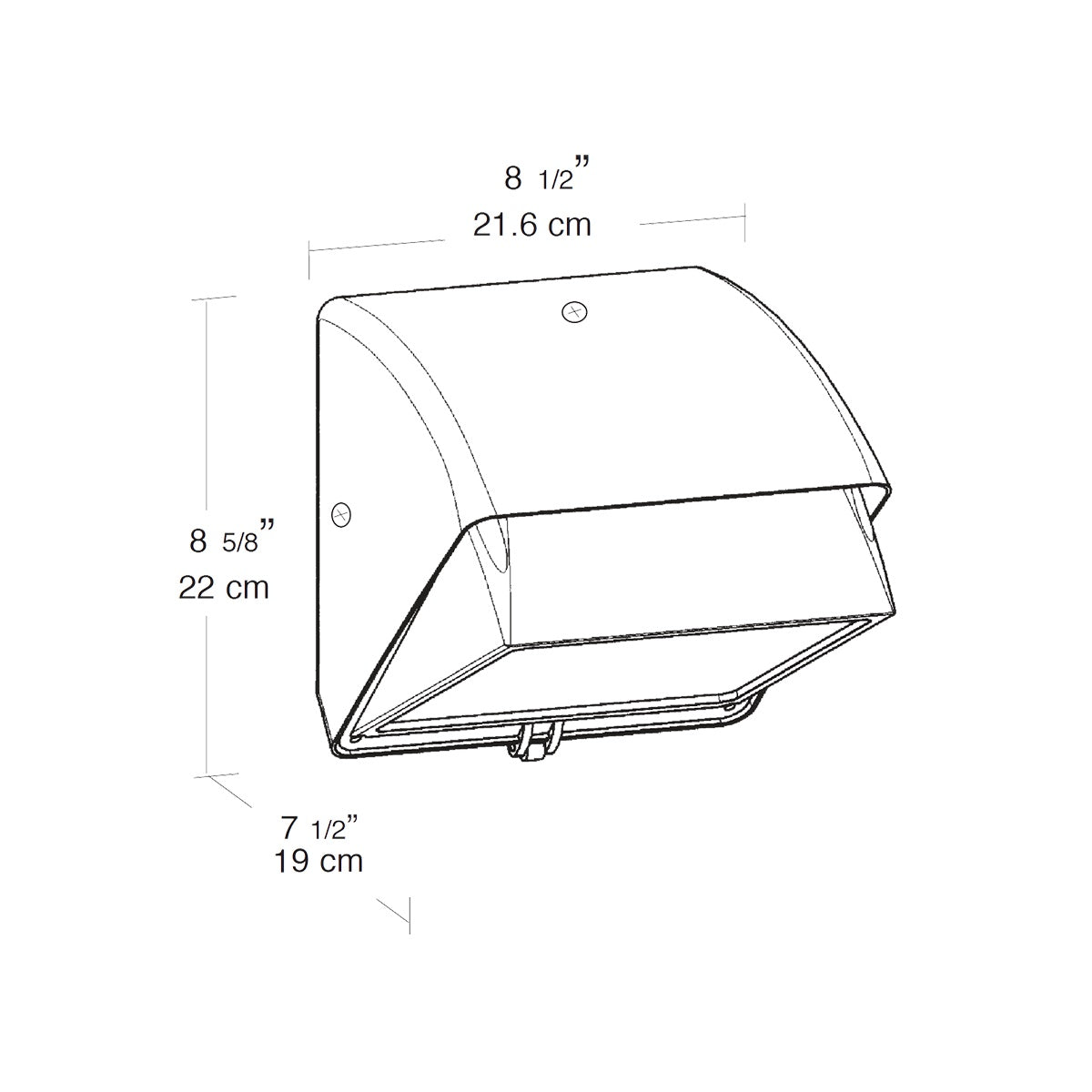

• Dimensions: 8 1/2" W x 8 5/8" H x 7 1/2" D (21.6 cm x 22 cm x 19 cm)
• Lamp Type: ED17, 70W
• Ballast Type: HX-NPF 120V, 2.5/2.1A
• UL Listed for wet locations
• EISA 2007 Compliant

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings and ballasts for fast internal wiring
• Long life lamp included (15,000 hours)
• Silicone gasket remains in place during relamping for weather resistance
• Cutoff glare shield for reduced light pollution and "friendly" lighting
• Hinged door swings open and remains captive for easy relamping
• Conduit entry points on all four sides and back for flexible wiring
• Symmetrical light pattern reflector maximizes fixture spacing
