WP1CH50 Outdoor Wall Pack Lighting

The WP1CH50 by RAB is a durable outdoor wall pack light designed for commercial and industrial lighting applications. This fixture provides efficient illumination with a 50W ED17 lamp, delivering 3,400 lumens at 49 lumens per watt efficacy. Suitable for wet locations, it is an ideal solution for electrical distributors and lighting solutions providers seeking reliable outdoor lighting with easy installation and maintenance features.

Specifications

• Manufacturer: RAB
• Model Number: WP1CH50
• Input Wattage: 69 watts
• Lumens: 3,400 lumens
• Efficacy: 49 lumens per watt
• Weight: 9.5 lbs
• Color: Bronze
• Lamp Type: ED17, 50W
• Lamp Life: 10,000 hours
• Ballast Type: HX-NPF 120V
• UL Listed: Suitable for wet locations

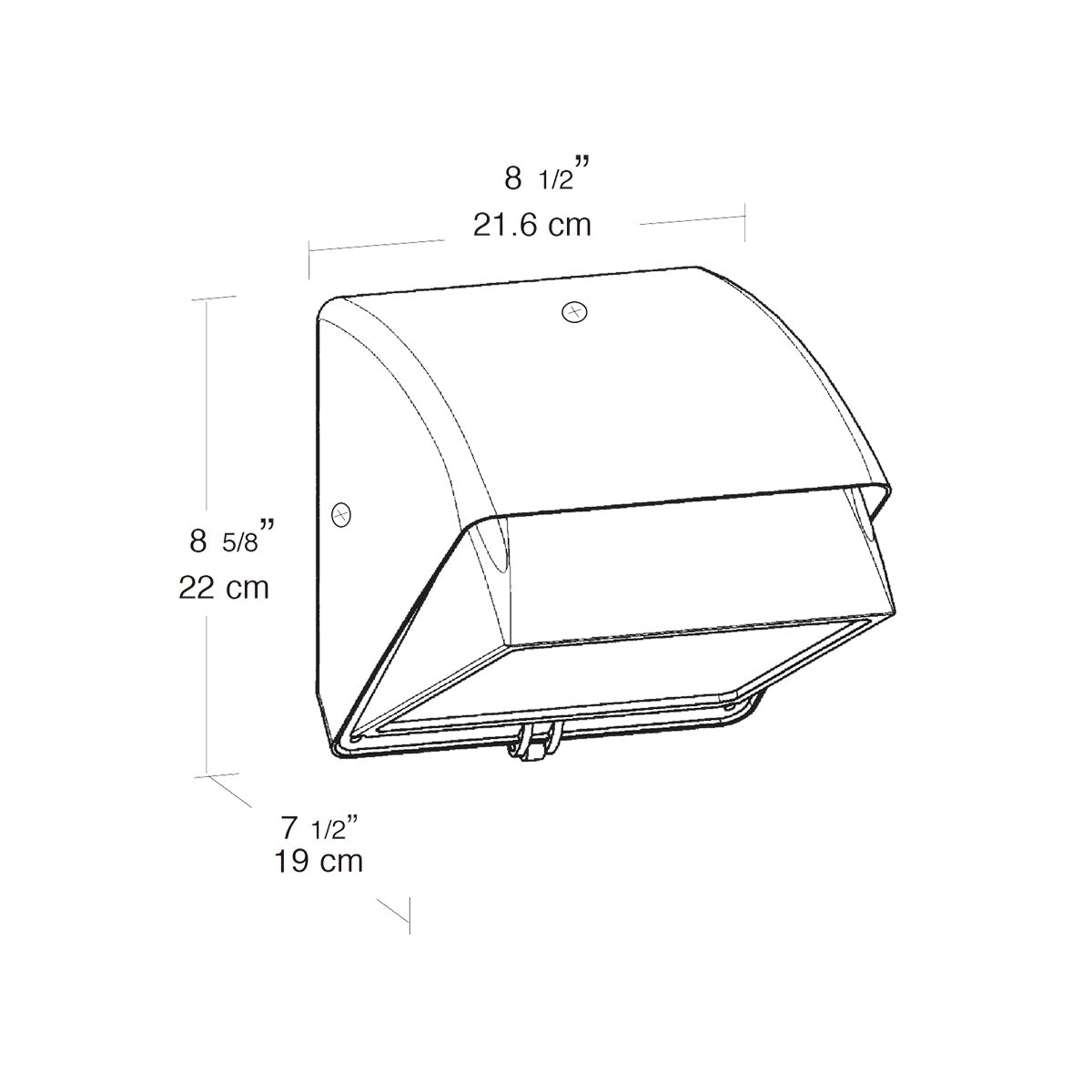

• Dimensions: 8 1/2" W x 8 5/8" H x 7 1/2" D (21.6 cm x 22 cm x 19 cm)

Features

• Precision die-cast aluminum housing with durable polyester powder coating
• Easy access conduit openings on top, side, and back for fast internal wiring
• Hinged refractor door that swings open and remains captive for easy relamping
• Silicone rubber gasket ensures weather tightness and remains in place during relamping
• Cutoff glare shield designed for "friendly" lighting to reduce light pollution
• Semi-specular anodized aluminum reflector with symmetrical light pattern for maximum fixture spacing
• EISA 2007 compliant metal halide ballast with pulse start technology for longer lamp life and faster startup

Downloads & Links

• Spec Sheet
