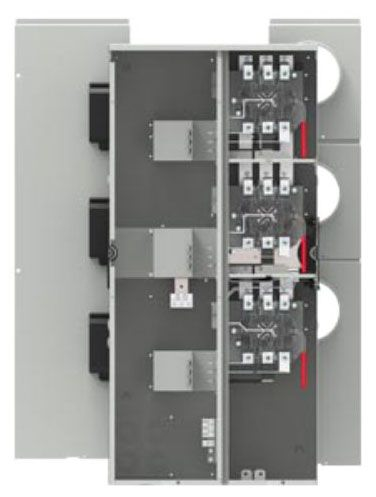

WML33100RJ Meter Stack – Lever Bypass Meter Stack

The WML33100RJ Meter Stack by Siemens is a lever bypass meter stack designed for residential and commercial electrical distribution applications. It supports 3-phase, 4-wire systems with 7-jaw sockets and is suitable for use with 100 Amp tenant breakers. This product is ideal for electrical distributors and switchgear suppliers requiring reliable, ringless lever bypass meter sockets with enhanced safety and installation features.

Specifications

• Manufacturer: Siemens
• Catalog Number: WML33100RJ
• Meter Positions per Stack: 3
• Maximum Tenant Breaker Amperage: 100 Amps
• Breaker Provisions: QP, MP-T, QPH, MP-HT, HQP, MP-MT
• Maximum AIC: 65,000
• Dimensions (H x W x D): 49.75 in x 23.50 in x 9.00 in
• Voltage Rating: Suitable for 240/120V Delta systems
• UL Standard: UL67
• UL File Number: E27100
• Thru-Bus Rating: 1200 Amps
• Material: G90 galvanized steel with ANSI 61 paint
• Environmental Rating: Indoor NEMA 1, Outdoor NEMA 3R
• Weight: Approximately 149.8 lbs

Features

• Ringless lever bypass design for enhanced safety
• High-quality Talon HQ sockets proven for reliability
• QuickSystem™ features including QuickConnect™, QuickTorque™, QuickBolt™, and QuickRoll™ for efficient installation and maintenance
• Removable back knockout plate to facilitate wiring
• Stainless steel swing latches and rivets for corrosion resistance
• 225 Amp capability in single and three-phase designs (alternate models)
• Supports up to 4 positions with 225 Amp tenant mains and up to 2 positions with 400 Amp tenant mains (alternate models)
• Pivot factory-installed mounting ears for additional stability during installation
• Barrel lock capable covers to prevent unauthorized access
• Neutral lugs centrally located for ease of wiring
