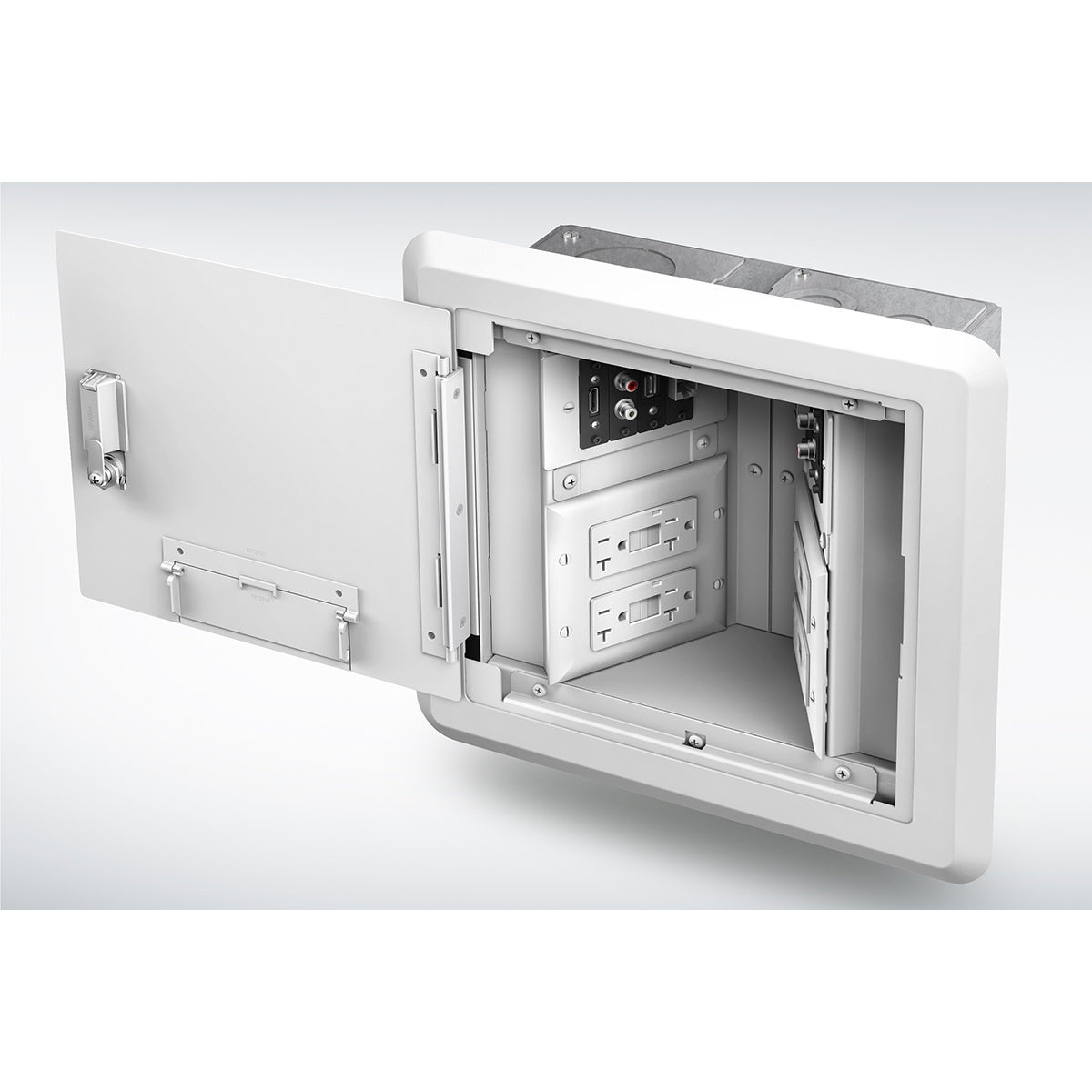

WIREMOLD EHWB8-WH 8-GANG RECESSED HINGED WALL BOX – Electrical Enclosure

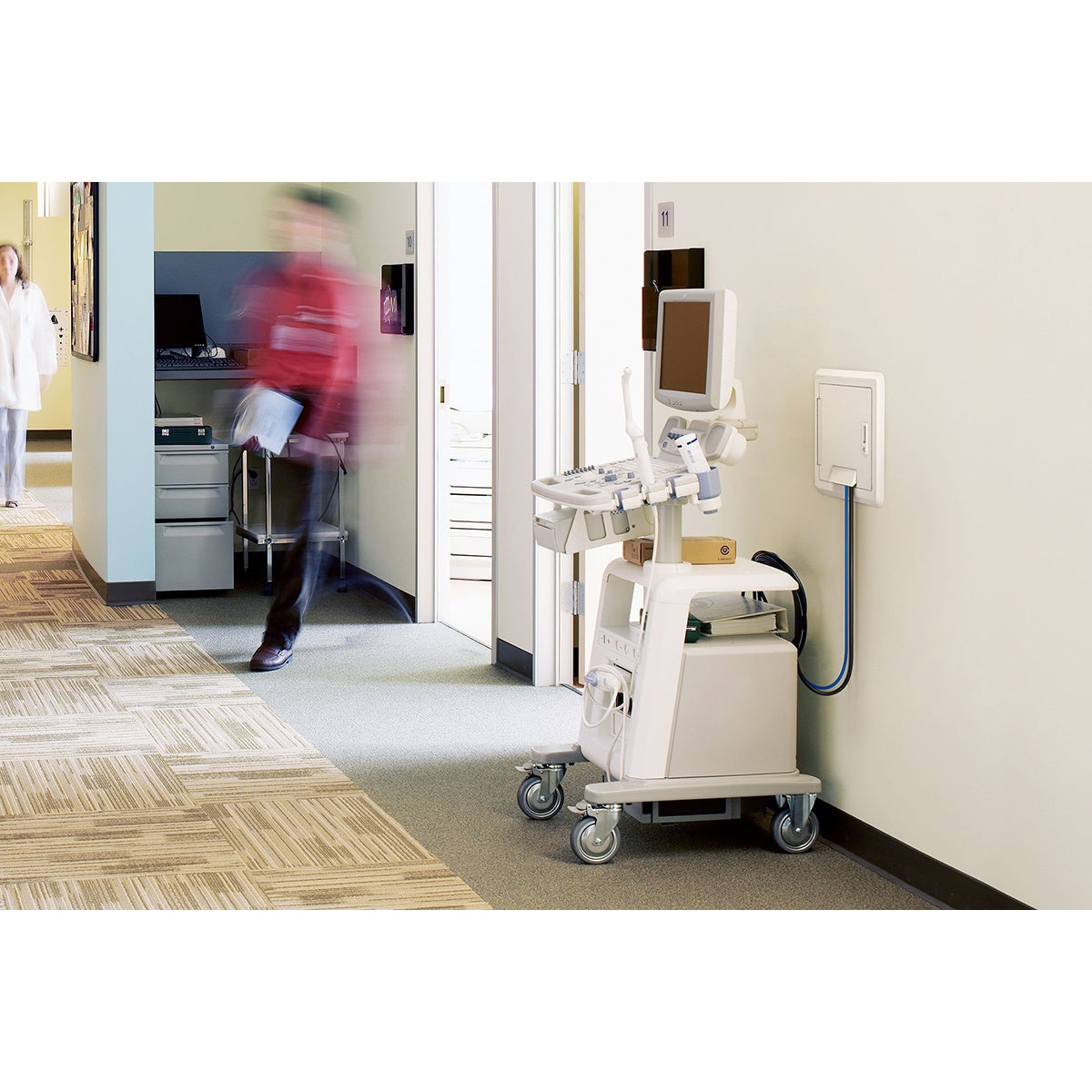

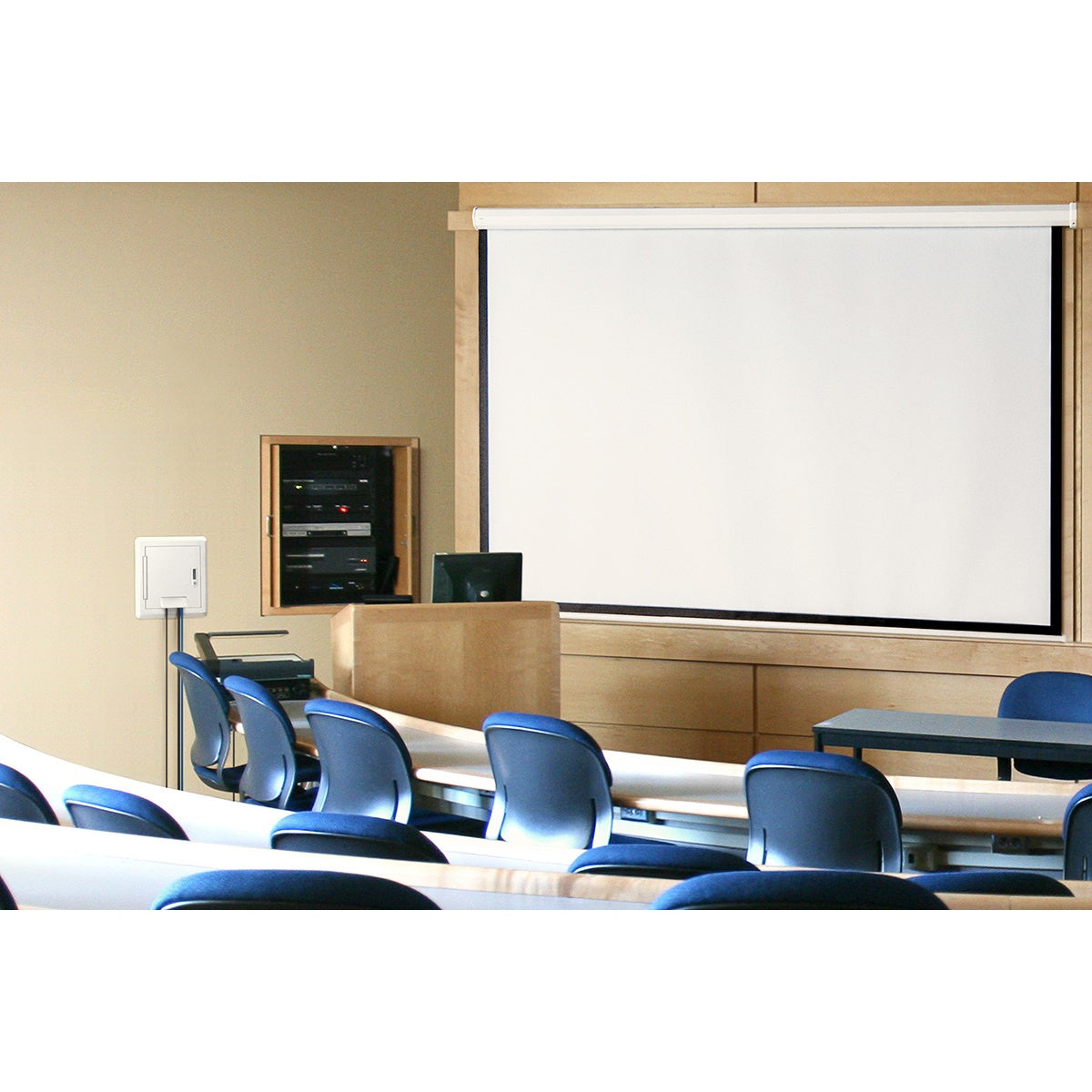

The WIREMOLD EHWB8-WH 8-Gang Recessed Hinged Wall Box by Wiremold is designed to provide a secure and accessible enclosure solution for electrical wiring in commercial and institutional settings. Suitable for both new work and old work drywall installations, this recessed hinged wall box accommodates up to 8-gang device plates, making it ideal for applications requiring multiple power, communication, or A/V connections. As a component relevant to electrical distributors and switchgear suppliers, it supports clean and organized wiring infrastructure in environments such as hospitals, lecture halls, conference rooms, and airports.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EHWB8-WH
• Box Capacity: 8-Gangs
• Depth Behind Plates: 3-5/8" (92mm)
• Cubic Capacity: 113.8 in³
• Cable Entry: Knockouts
• Product Weight: 13.95 lbs
• Device Plate Size Compatibility: Standard NEMA type (2 3/4" x 4 1/2")
• Installation Type: Suitable for New Work and Old Work drywall over 2" x 4" stud framing
• Cover Colors: White (WH)

Features

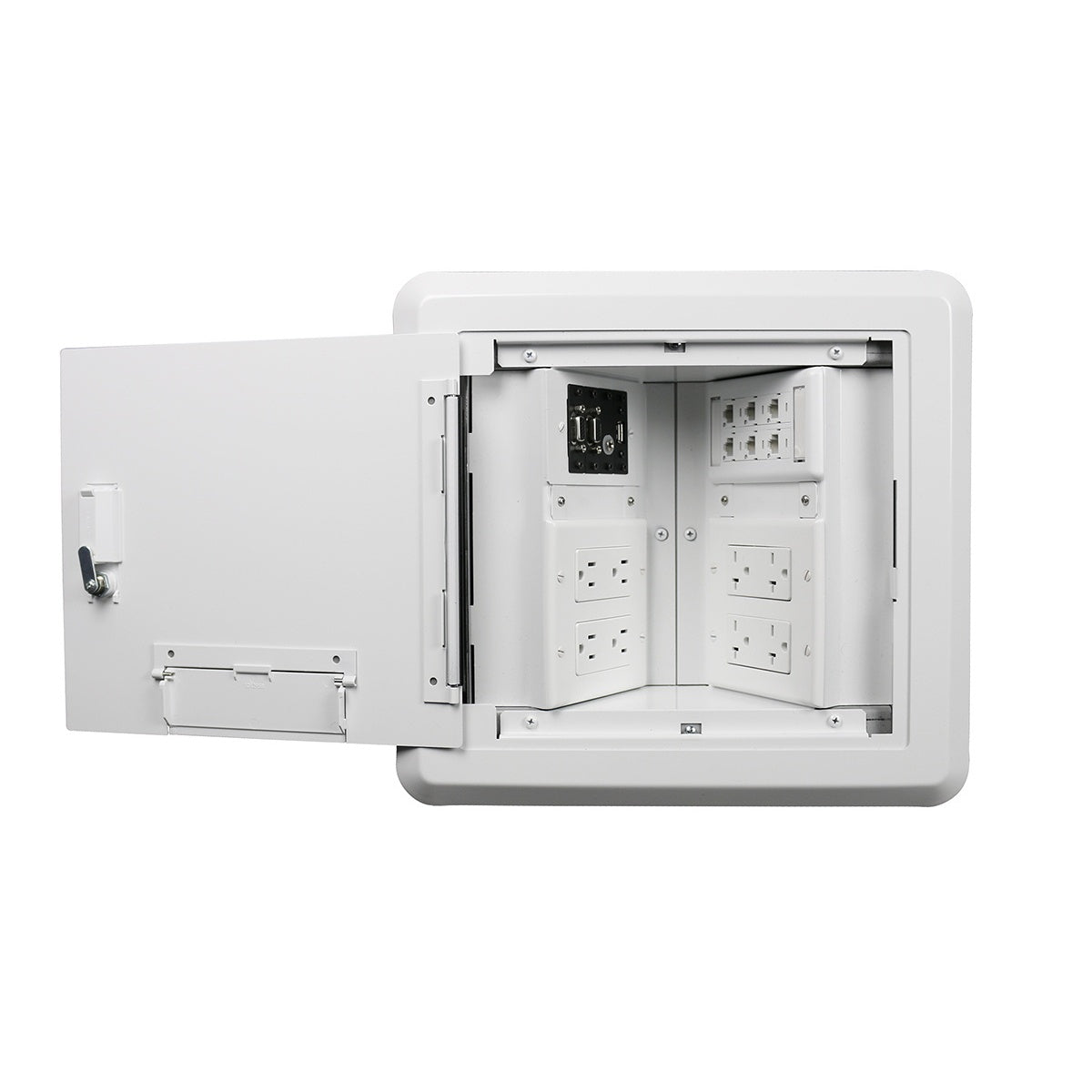

• Hinged cover provides easy access for installation and maintenance

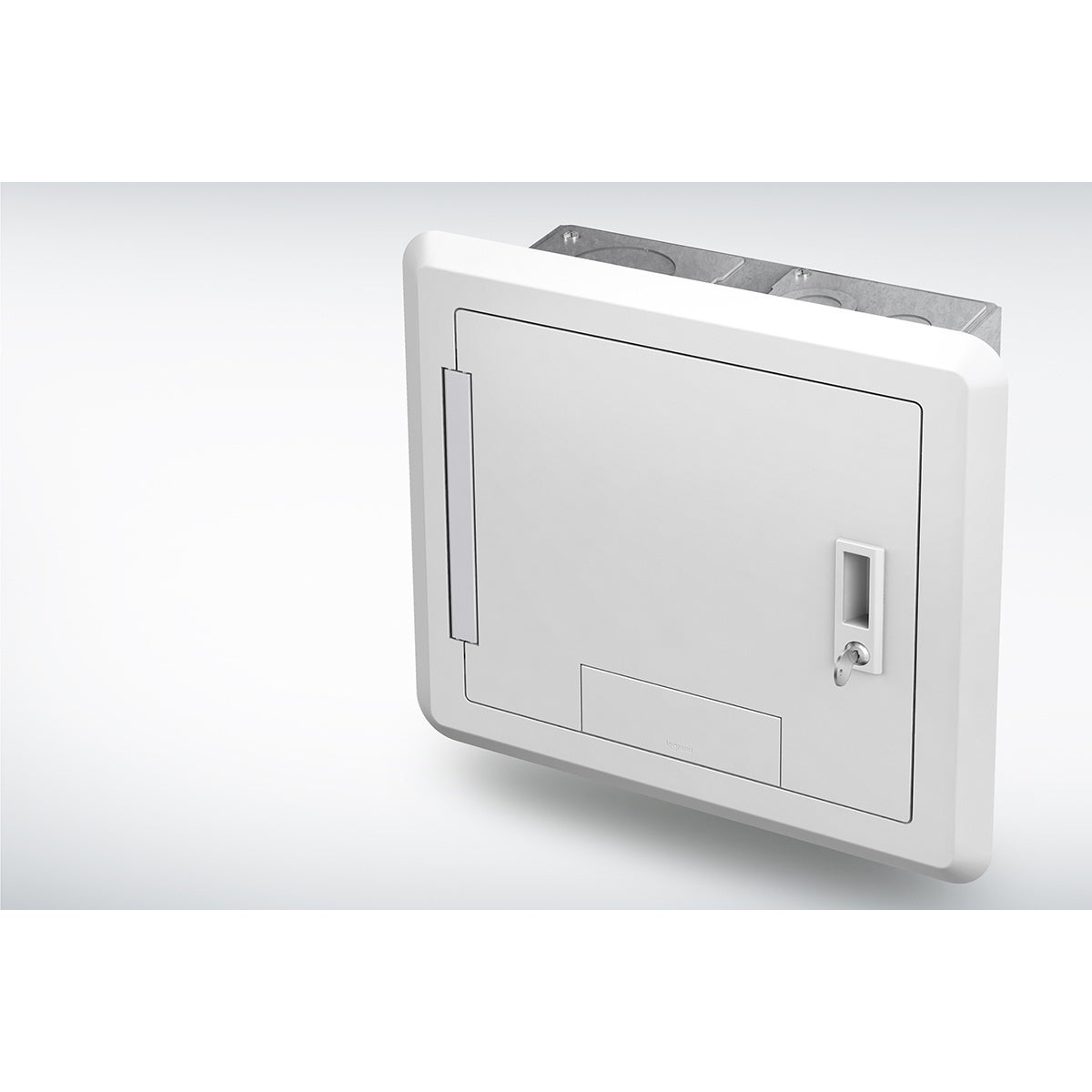

• Recessed design for a flush, clean appearance favored by architects
• Paintable trim flange and decorative cover for aesthetic customization
• Includes removable knockout plates on top, bottom, and sides for flexible cable entry
• Compartment dividers maintain separation between power and low voltage wiring
• Compatible with standard NEMA devices and faceplates for power, A/V, and communication wiring
• Supports use of filler plates to close gaps between device plates

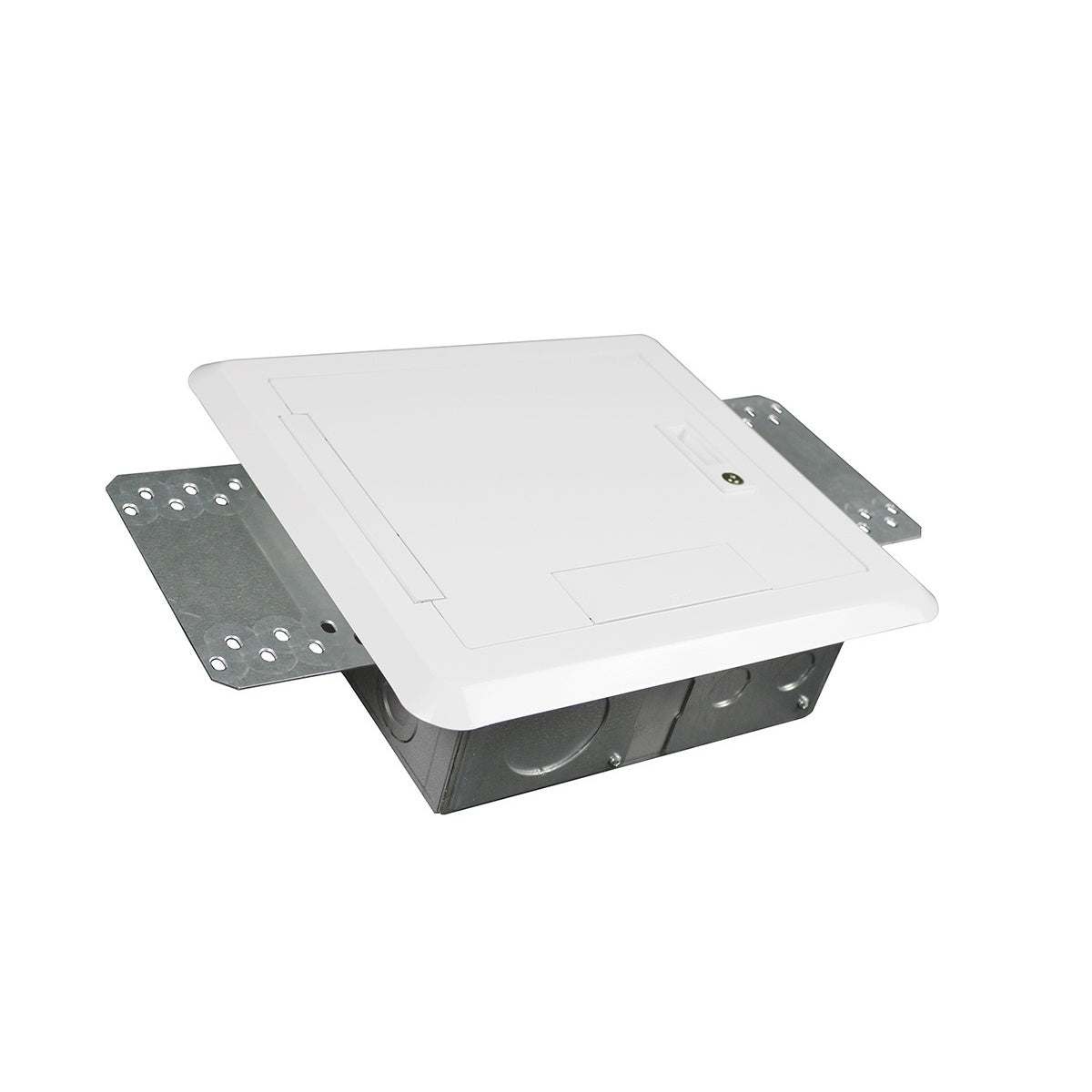

• Mounting brackets accommodate drywall thicknesses of 1/2" and 5/8"
• Designed for secure wall mounting with drywall screws (not included)
