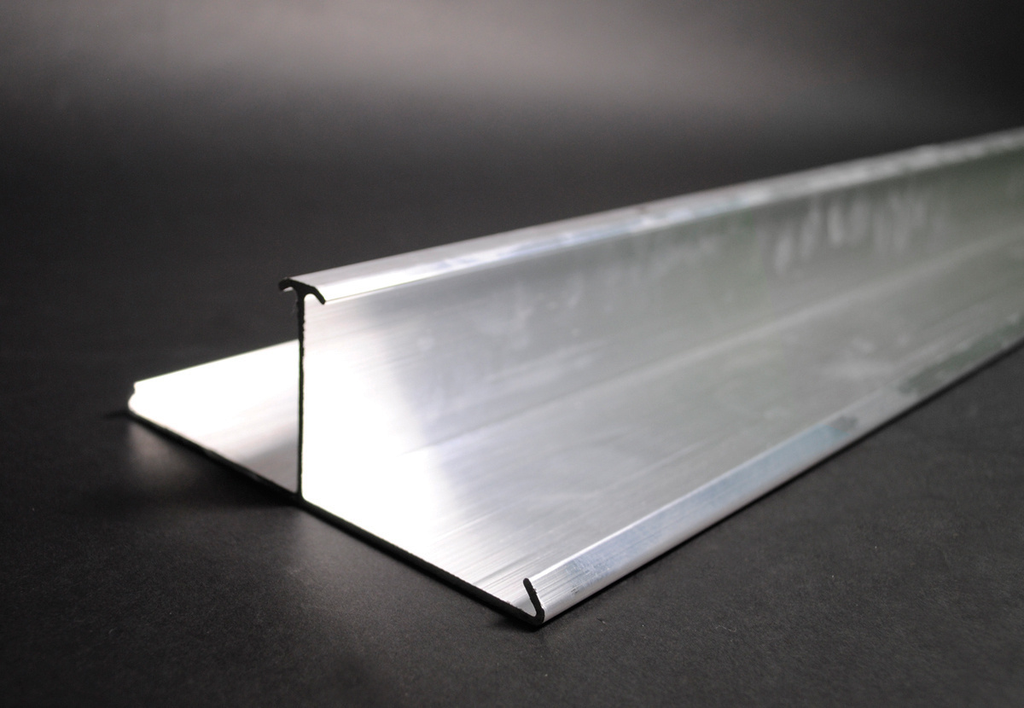

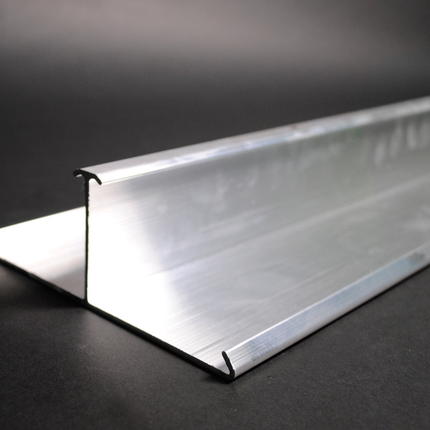

Wiremold ALDS4000 Series Raceway Base – High Capacity Aluminum Raceway for Electrical and Data Wiring

The Wiremold ALDS4000 Series Raceway Base provides a dual-service aluminum raceway solution designed for commercial, institutional, and industrial applications requiring high-capacity metal raceways. Engineered to accommodate both power and data wiring with full isolation via a built-in divider and twin covers, this raceway system offers 1/3 more wiring capacity than conventional box-style raceways. It features a durable satin anodized silver finish and is designed for surface mounting with adjustable couplings that simplify installation and reduce waste from precision cuts. Ideal for electrical distributors and switchgear suppliers seeking efficient, high-capacity wiring solutions.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: ALDS4000B
• Material: Aluminum
• Color: Silver
• Dimensions: Width 120.0 in, Height 5.5 in, Depth 2.0 in
• Product Weight: 0.8 lbs
• Country of Origin: Mexico
• Order Minimum: 40 units
• UPC: 786776083101

Features

• Innovative aluminum profile providing 1/3 more wiring capacity than conventional raceways
• Dual cover design with a built-in divider for full isolation of power and data services
• Adjust-to-Fit™ couplings included, allowing up to 4 inches of lateral adjustment for easy installation
• Durable satin anodized finish resists corrosion and fading
• Compatible with industry-standard wiring, data, and communication devices
• Hardware included with wire clips pre-installed in the lower channel
• Meets or exceeds UL, NEC, NEMA standards, and EIA/TIA recommendations
• Designed for commercial, institutional, and industrial applications with high wiring capacity requirements

Downloads & Links

• 4000 Series Designer Aluminum Raceway
• ALDS4000 Designer Series Large Raceway Base & Cover - ALDS4000B, ALDS4000C"
• Spec Sheet
• ALDS4000 Designer Series Large Raceway Elbow Fittings - ALDS4000
• ALDS4000 Designer Series Large Raceway - DS4000 & ALDS4000
