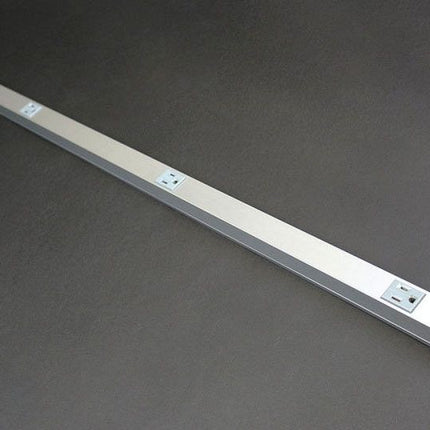

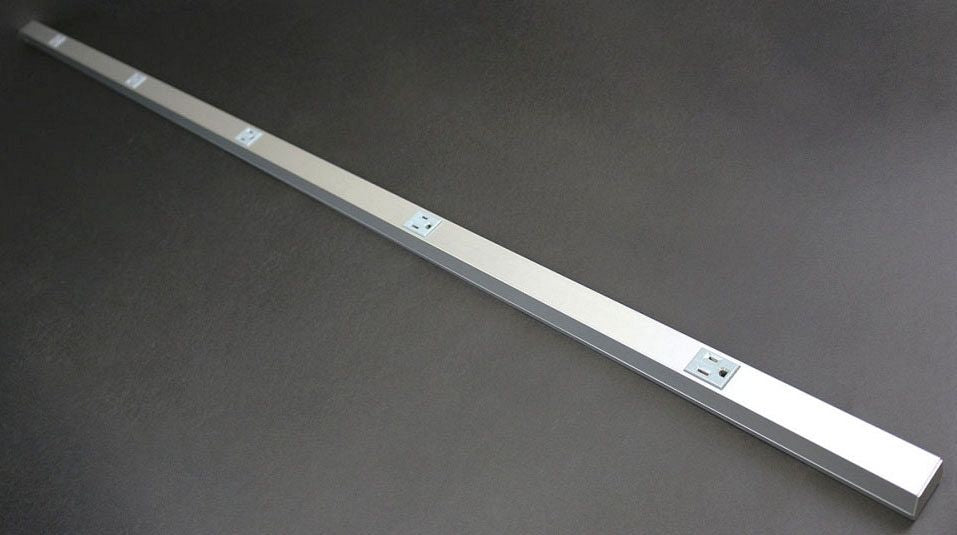

WIREMOLD AL20GB512TR Tamper-Resistant Plugmold 5FT

The WIREMOLD AL20GB512TR is a 5-foot tamper-resistant Plugmold multioutlet system designed for versatile electrical distribution applications. Ideal for electrical distributors and lighting solutions providers, this aluminum Plugmold features 15A receptacles spaced 12 inches apart and is suitable for wire and cable installations requiring reliable power distribution with safety features. It includes a 3-wire, #12 THHN conductor configuration (1 hot, 1 neutral, and insulated ground) rated for use on 20A circuits, making it a practical choice for commercial and laboratory environments.

Specifications

• Length: 5 feet (1.5 meters)
• Receptacle Spacing: 12 inches (305 mm)
• Receptacle Rating: 15A tamper-resistant
• Conductor: 3-wire, #12 THHN (1 hot, 1 neutral, insulated ground)
• Housing Material: .060" (1.5 mm) 6063-T5 extruded aluminum with satin anodized finish
• Product Weight: 3.0 lbs
• Country of Origin: United States
• cULus Listed: Yes, Listing Number E15191
• RoHS Conformant: Yes
• NAFTA Compliant: Yes

Features

• Tamper-resistant receptacles enhance electrical safety
• Durable extruded aluminum housing with corrosion-resistant satin anodized finish
• Includes one coupling and two blank end fittings per unit for easy installation
• Compatible with a range of Plugmold fittings and accessories
• Available in multiple finishes for integration with various décor styles
• Suitable for commercial, laboratory, and general electrical distribution applications
