WIREMOLD AL2003 Mounting Clip Aluminum - Electrical Raceway Mounting Solution

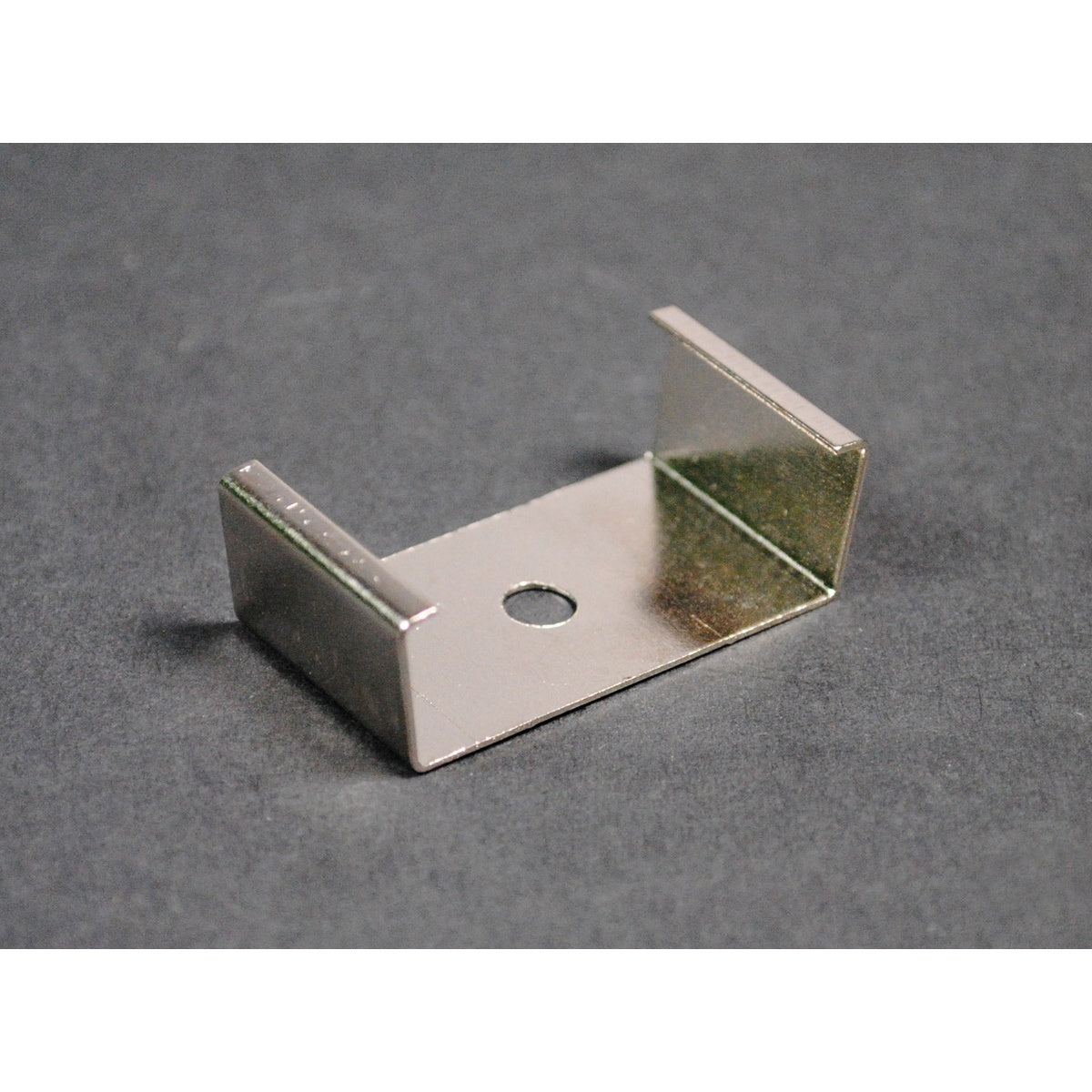

The WIREMOLD AL2003 Mounting Clip is a spring steel component designed to support lengths of the AL2000TR Series Raceway at any desired point. It is intended for use by electrical distributors and switchgear suppliers to securely mount aluminum raceway systems, facilitating organized wire and cable management in commercial and industrial electrical installations.

Specifications

• Material: Spring Steel
• Compatible Series: AL2000TR Raceway
• Mounting: Surface mount with No. 8 flathead screw
• Dimensions: 1 7/16" (37mm) width
• Product Weight: 0.1600 lbs
• Manufacturer Part Number: AL2003
• UPC: 786776038866

Features

• Provides external support for AL2000TR Series Raceway
• Enables secure attachment to mounting surfaces
• Designed to snap raceway base into clip for stable installation
