WIREMOLD 6AT2PAVGY 6IN Prewired AV PT Flush Assembly Gray - Poke-Thru Device

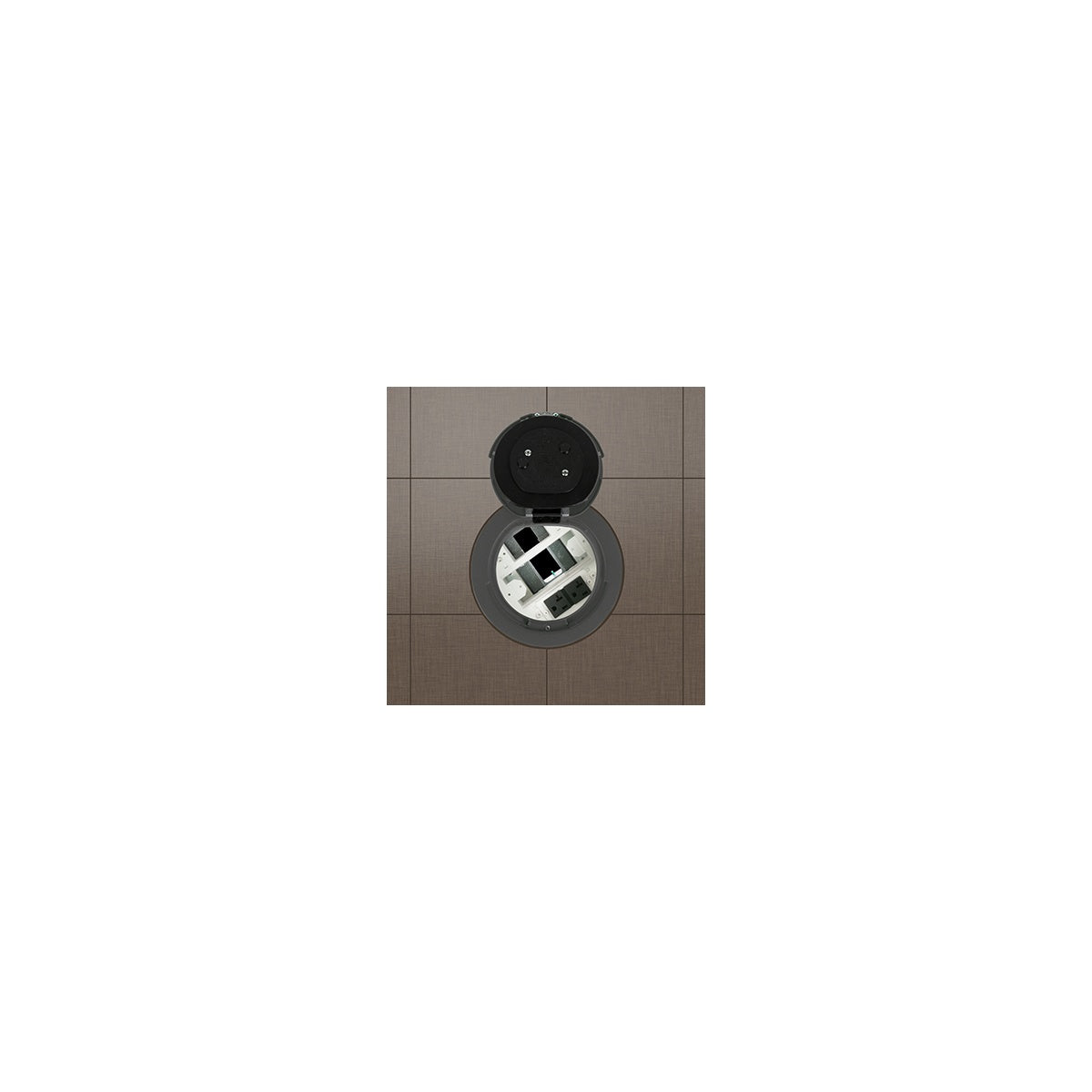

The WIREMOLD 6AT2PAVGY is a recessed prewired audio/video poke-thru device designed for installation in concrete floors with ceiling access below for power, data, and AV services. It installs into a 6" to 6 1/8" diameter hole and features a flush aluminum cover that sits flush with finished floor surfaces such as carpet, tile, or wood. This device is suitable for electrical distributors and lighting solutions providers requiring reliable floor access for wire and cable management in commercial and institutional settings.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 6AT2PAVGY
• Cable Entry: Conduit
• Construction: Assembled
• Cubic Capacity: 24 in¬≥
• Product Weight: 9.32 lbs
• Hole Diameter: 6" (min) to 6 1/8" (max)
• Recess Depth: 4" below finished floor level
• Flush Style Cover Material: Aluminum
• Finish: Gray powder coat
• Includes: One (1) prewired TR 20A duplex receptacle
• Compatible Floor Surfaces: Carpet, tile, wood, polished concrete, terrazzo
• UL Listed and Classified for 1-, 1 1/2-, and 2-hour fire rated floors

Features

• Flush to floor surface cover and flange configuration for seamless floor integration
• Prewired assembly includes a 20A duplex receptacle for immediate installation
• Provides 3-gang capacity for power, communication, or AV devices
• Suitable for use with power circuits, data, and audio/video cables
• Designed for installation in concrete floors with ceiling access below
• Available in multiple finishes including powder coat and durable brushed options
• Includes device plates for side and center compartments and pass-through conduit housing assemblies
• Meets NEC Article 300.21, 300.22(C), and 314 compliance
• Compatible with isolated ground wiring configurations
