WIREMOLD 6AT2PAA3H 6IN 3HR PREWIRED FLUSH BRUSHED AL
SKU: #401555
Part: #6AT2PAA3H
UPC: 786564103578
WIREMOLD 6AT2PAA3H 6IN 3HR PREWIRED FLUSH BRUSHED AL
SKU: #401555
Part: #6AT2PAA3H
UPC: 786564103578
Description
WIREMOLD 6AT2PAA3H 6IN 3HR PREWIRED FLUSH BRUSHED AL – Poke-Thru Electrical Floor Outlet

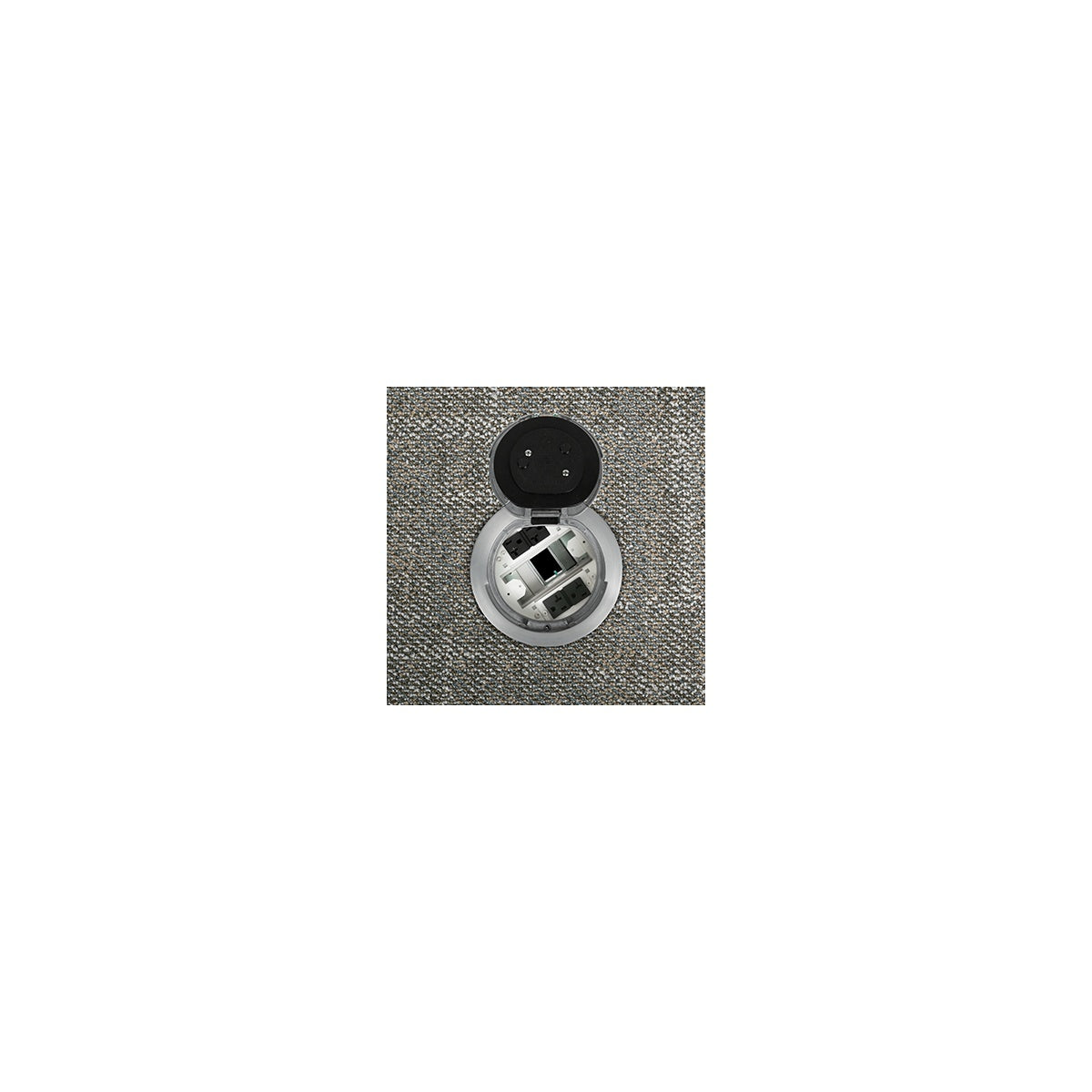

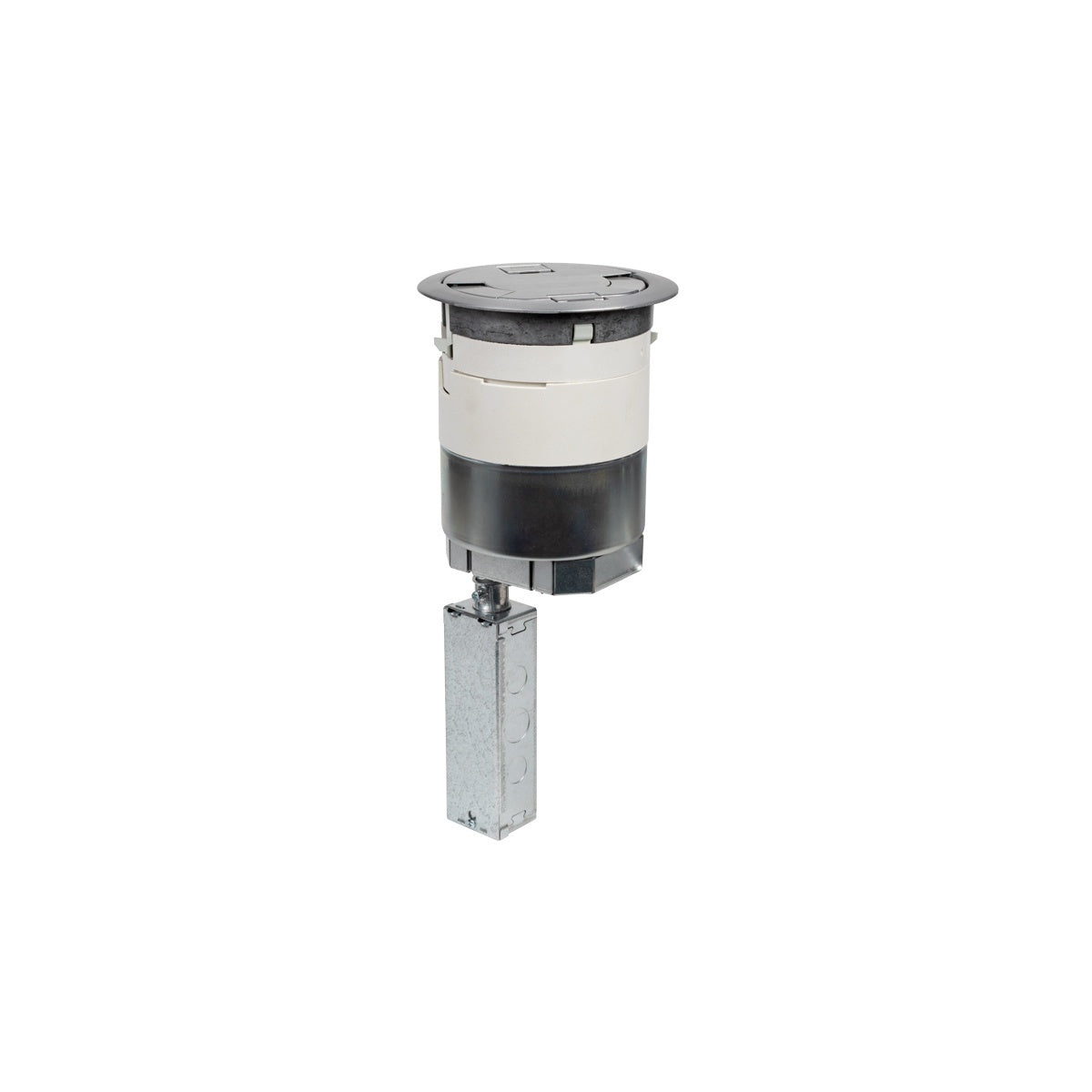

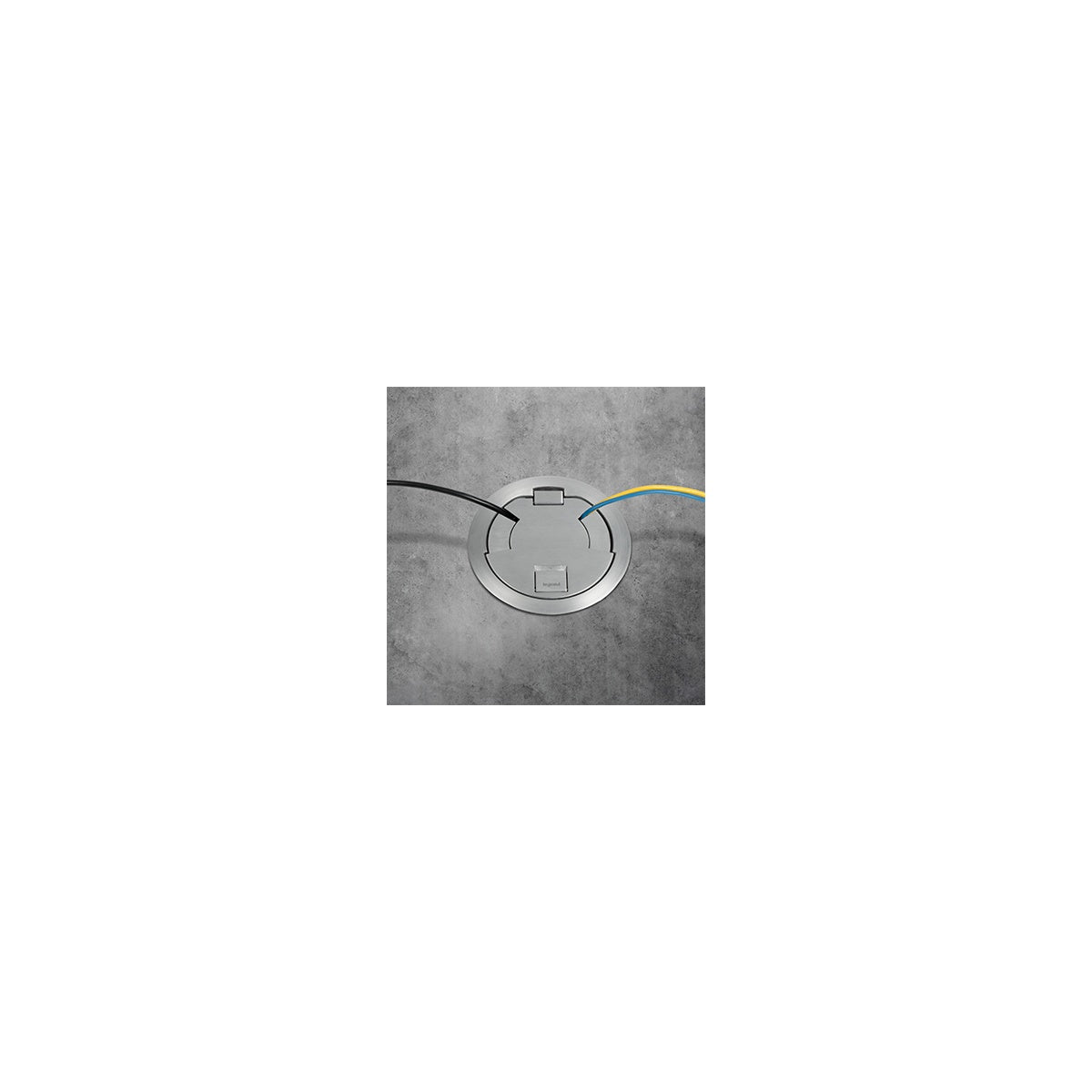

The WIREMOLD 6AT2PAA3H is a 6-inch Evolution Series poke-thru device designed for recessed power and communication access in concrete floors. Ideal for electrical distributors and switchgear suppliers, this flush-style poke-thru provides a durable brushed aluminum cover that sits flush with finished floor surfaces such as carpet, tile, or wood. It features two prewired 20A duplex receptacles recessed 4 inches below floor level, supporting 3-gang capacity for power, communication, or A/V devices. The device is UL Listed and classified for use in 3-hour fire-rated floors, suitable for commercial and institutional lighting solutions and wire and cable installations requiring floor-level access.
Specifications
- Product Name: WIREMOLD 6AT2PAA3H 6IN 3HR PREWIRED FLUSH BRUSHED AL
- Manufacturer Part #: 6AT2PAA3H
- Color: Aluminum
- Product Weight: 10.28 lbs
- Hole Diameter: Minimum 6" (152mm), Maximum 6 1/8" (156mm)
- Recess Depth: 4" (102mm) below floor surface
- Fire Rating: UL Classified for up to 3-hour rated floors
- Receptacles: Two (2) proprietary TR 20A duplex receptacles prewired
- Installation: Designed for concrete floors with access in ceiling below for power, data, and A/V services
Features

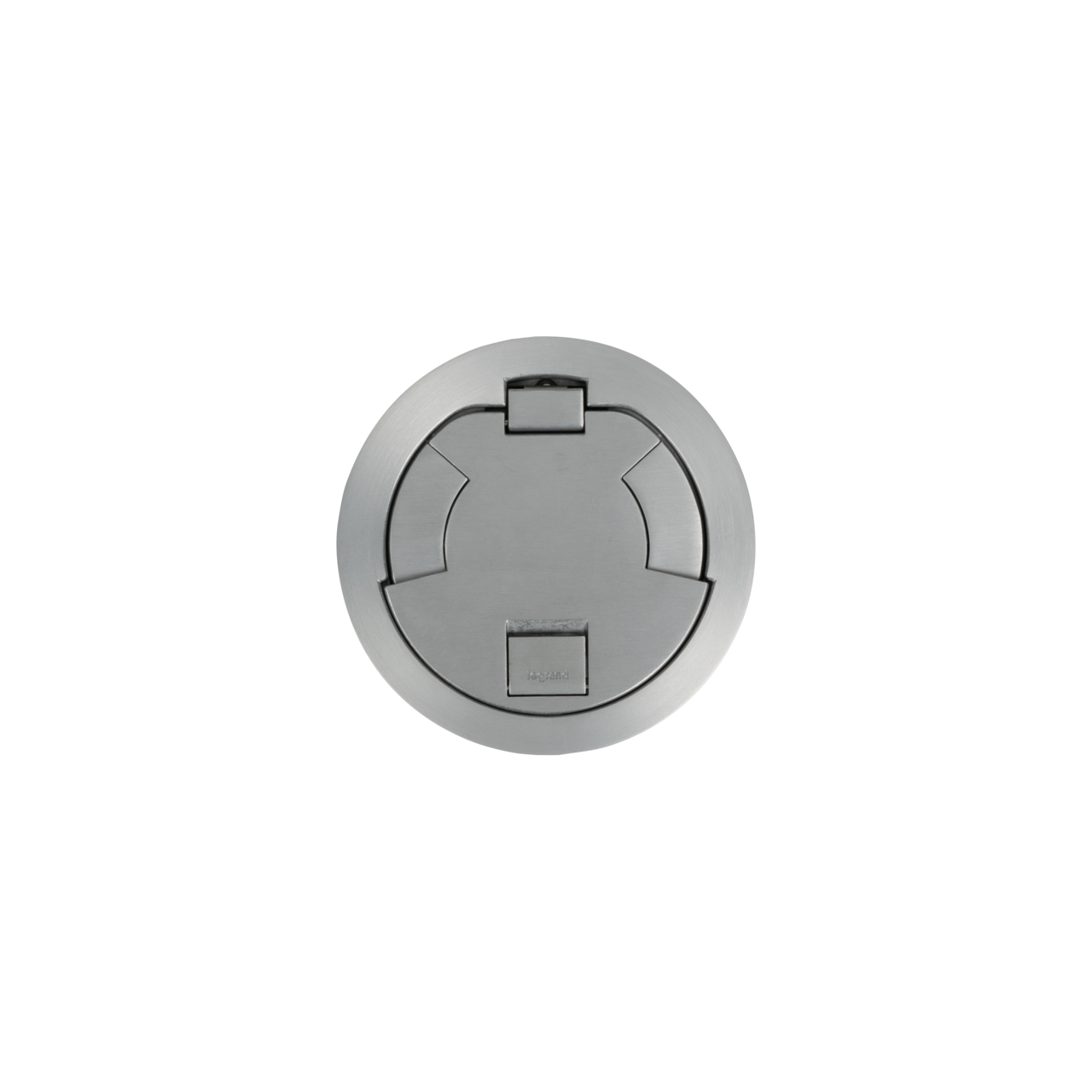

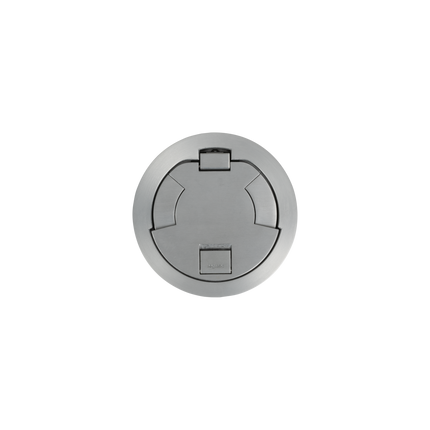

- Flush-style aluminum cover with durable brushed finish designed to sit flush with carpet, tile, or wood floors
- Prewired and pre-installed duplex receptacles for ease of installation
- 3-gang capacity for power, communication, or audio/visual devices
- Complies with NEC Article 300.21, 300.22(C), and 314 for safe electrical installations
- Compatible with power circuits, data, and A/V cables with specific conductor size and quantity limits
- Available in multiple finishes; this model features brushed aluminum finish
- Includes one 6TS tile shim for flush tile installation
- Suitable for use in air handling spaces per NEC Section 300-22(C)
- UL Listed Metallic Outlet Box, cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance
