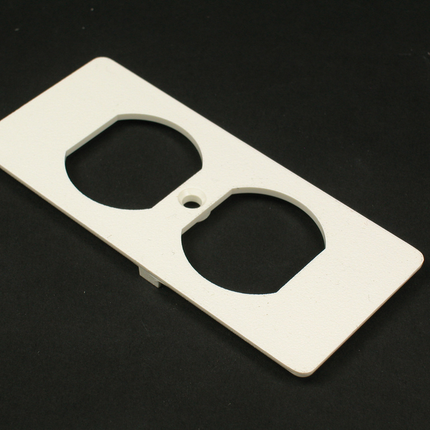

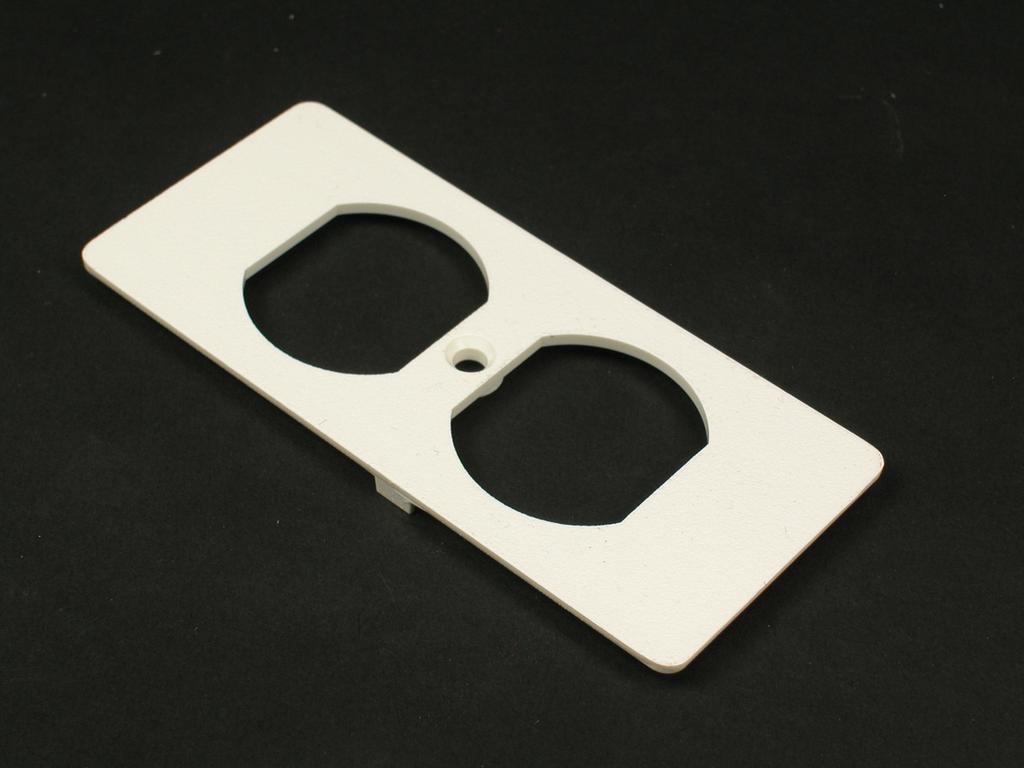

Wiremold 5500 Series Duplex Receptacle Faceplate Fitting, Ivory - Wire and Cable Management

The Wiremold 5500 Series Duplex Receptacle Faceplate Fitting is designed for wire and cable management in data, voice, video, and power applications. This fitting integrates seamlessly with the 5500 Series Nonmetallic Raceway System, widely used by electrical distributors and switchgear suppliers for large cable and wire requirements in schools, office buildings, and institutional settings. It supports multi-channel cable routing with three equal compartments, allowing separate services in one raceway for efficient organization and future flexibility.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5507D
• Color: Ivory
• Dimensions: 4.25 in (Width) x 1.88 in (Height) x 0.25 in (Depth)
• Product Weight: 0.03 lbs
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776036893
• Order Minimum: 1 unit

Features

• Compatible with 5500 Series Raceway for organized wire and cable management
• Duplex receptacle faceplate fitting designed to accommodate industry-standard devices
• Constructed from durable, lightweight PVC material that is paintable with latex paint
• Supports multi-channel raceway system with breakaway dividers for separate low-voltage and power wiring
• Enables mounting of devices in-line, offset, or combined without removing dividers or installing boxes
• Color options blend with various decor styles, available in ivory and white finishes
• Ideal for use in institutional and commercial environments requiring large cable capacity and organized wiring

Downloads & Links

• 5500 Series Large Capacity Raceway
• Spec Sheet
• 5500 Series Large Capacity Raceway Faceplates
• Wiremold¬Æ Large Capacity Nonmetallic Raceway Systems
• 5500 Series Raceway BIM
• 5500 Series Nonmetallic Raceway
• 5500 & 5400 Series Surface Nonmetallic Raceway
