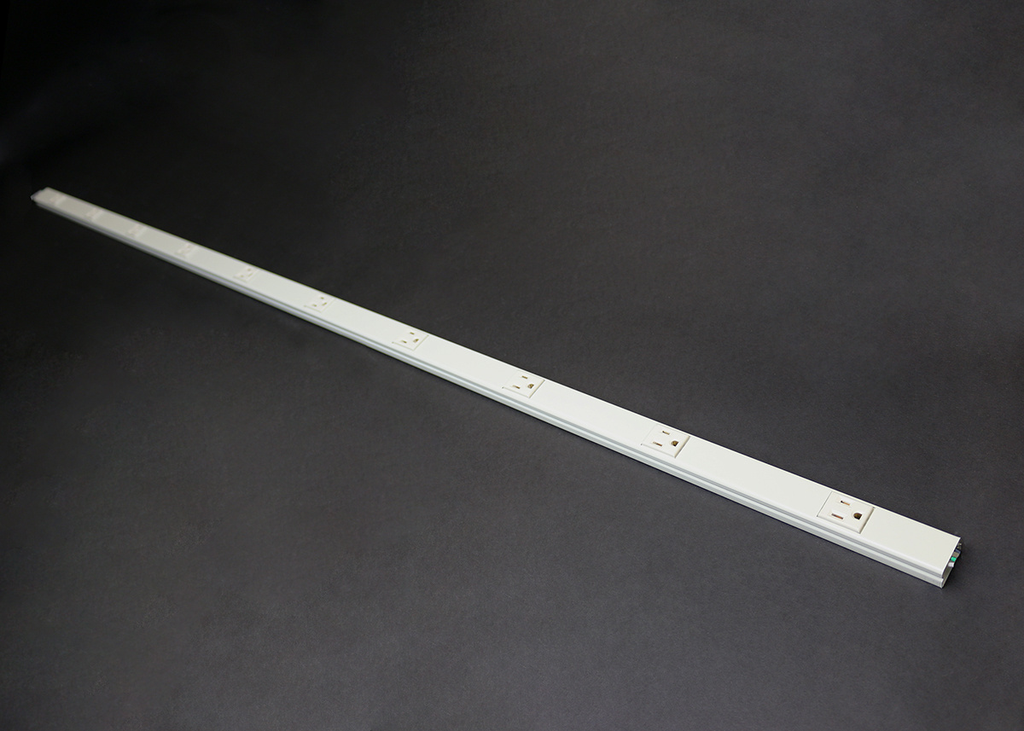

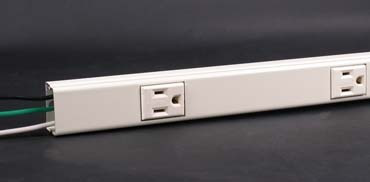

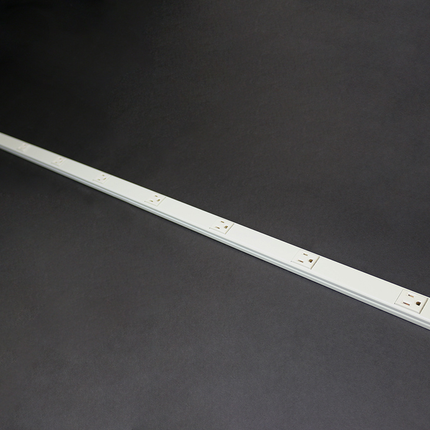

Wiremold 20GB506 Plugmold Multioutlet System in Ivory - Electrical Raceway and Multioutlet Solution

The Wiremold 20GB506 Plugmold Multioutlet System is designed to distribute electrical power efficiently through a low-profile raceway equipped with multiple 20A receptacles. Suitable for dry interior locations, this system is ideal for electrical distributors and lighting solutions providers requiring reliable and versatile wire and cable management in commercial and industrial environments. The Plugmold sections support single or alternating circuits with standard or isolated ground receptacles, providing flexible power distribution from a trusted switchgear supplier.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: V20GB506
• Color: Ivory
• Number of Receptacles: 10
• Dimensions: 60.0 in (Width) x 1.25 in (Height) x 0.88 in (Depth)
• Frequency Rating: 60 Hz
• Environmental Conditions: Dry interior locations
• Made in USA: Yes
• Product Weight: 2.93 lbs
• UPC: 786776093193

Features

• Steel, aluminum, and nonmetallic raceway options available for versatile applications
• ScuffCoat finish provides scratch resistance, protects against nicks and chips, and prevents color fading
• Supports common connection of 2, 3, or 4 wires, No. 12-14 solid, 20A max, 600V max, 60¬∞C max
• Low-profile design suitable for workstation power distribution
• Complies with RoHS directive 2011/65/CE and ISO 14001 environmental management standards
• Recyclability rate of approximately 95%, with high metal content for sustainability
• Requires only standard tools for installation
• Durable for 20 years of use under normal operating conditions without maintenance
