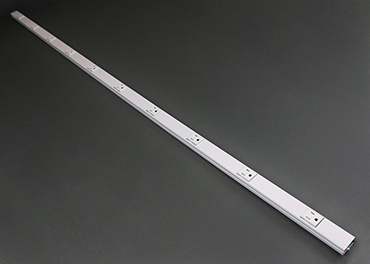

Wiremold 20GB306TR Tamper Resistant Plugmold Multioutlet System in White - Tamper Resistant Plugmold

The Wiremold 20GB306TR is a tamper-resistant Plugmold multioutlet system designed for dry interior locations, offering a versatile electrical distribution solution. Manufactured by Wiremold in the United States, this product is ideal for commercial and institutional applications requiring convenient access to power. It features a durable white finish with a scratch-resistant ScuffCoat that protects against nicks, chips, and color fading. The system includes six tamper-resistant receptacles spaced at 6 inches centers along a 36-inch steel raceway, suitable for electrical distributors and lighting solutions.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: WH20GB306TR
• Color: White
• Length: 36.0 inches
• Height: 1.38 inches
• Depth: 0.75 inches
• Number of Receptacles: 6
• Frequency Rating: 60 Hz
• Order Minimum: 2 units
• Product Weight: 1.79 lbs
• Country of Origin: United States
• Made in USA: Yes
• Environmental Conditions: Dry interior locations

Features

• Tamper-resistant receptacles to reduce risk of electrical shock and meet 2014 NEC section 406 requirements
• Steel raceway with scratch-resistant ScuffCoat finish for durability and color retention
• Single circuit wiring with insulated grounding conductor (GB series)
• Compact low-profile design suitable for installations with limited space
• Includes two blank end fittings and one base coupling for installation
• Compatible with Wiremold 2000 Series fittings and accessories
