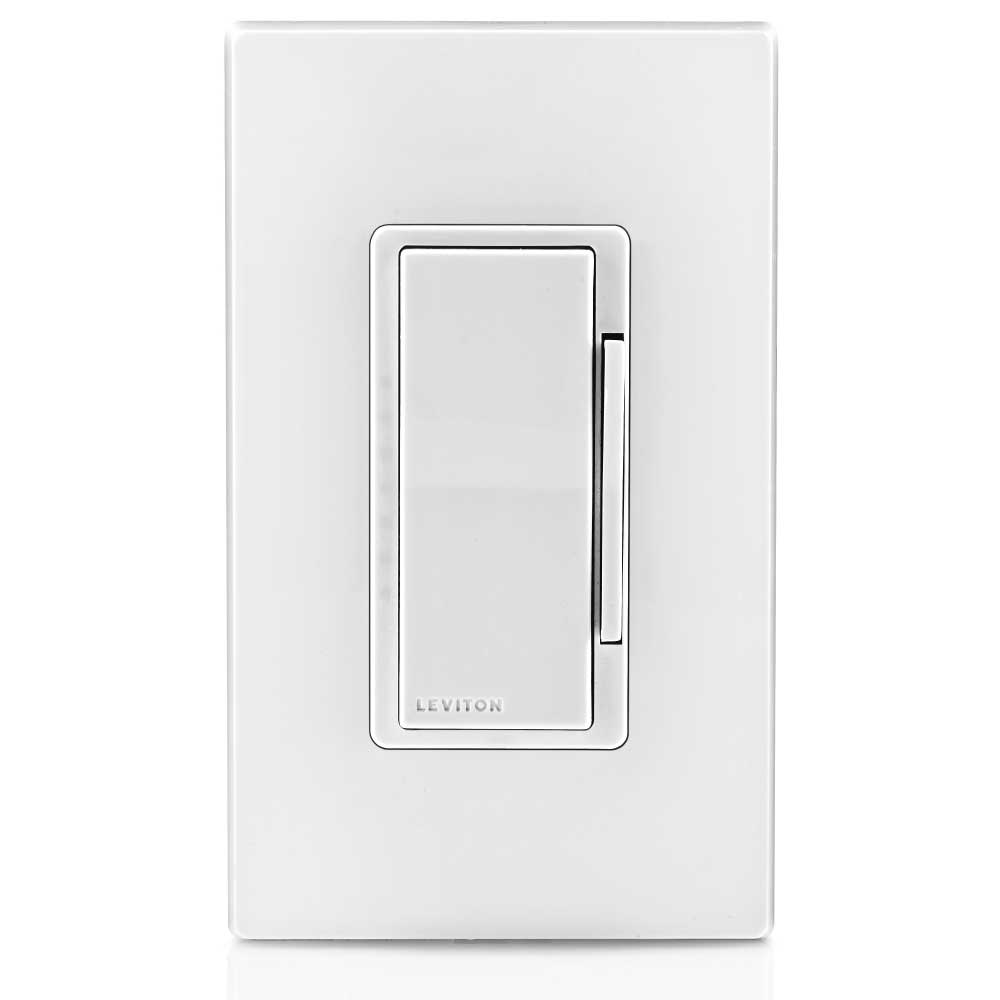

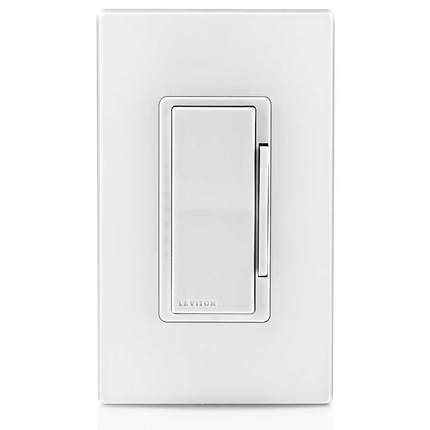

Wireless Wall Switch, 0-10V Dimmer, 24VDC – Low Voltage Lighting Control

This Wireless Decora 0-10V Low Voltage Wall Dimmer operates at 2.4GHz with a 24VDC power supply and 0-10V sinking control at 20mA. Designed for precise dimming control in lighting solutions, it is suitable for integration by electrical distributors and switchgear suppliers managing wire and cable systems for low voltage lighting control applications.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: ZS057-ALZ
• Input Voltage: 24 V DC
• Input Current: 20 mA
• Control Type: 0-10V sinking dimmer
• Wireless Frequency: 2.4 GHz
• Product Weight: 0.448 lbs
• Color Options: White, Light Almond, Ivory
• Country of Origin: China

Features

• Wireless RF communication for flexible installation
• Compatible with 0-10V low voltage control wiring (Class 1 or Class 2)
• Decora-style wall switch form factor requiring Decora wall plate (sold separately)
• Supports grouped installations for multi-unit control
• Indicator LED status for operational feedback
• Designed for indoor use with copper or copper-clad wiring only

Downloads & Links

• ZS057-ALZ 0-10VDC Low Voltage RF Wall Dimmer Installation Instructions French DI-003-ZS057-52C-W
• ZS057-ALZ 0-10VDC Low Voltage RF Wall Dimmer Installation Instructions Spanish DI-003-ZS057-42C-W
• ZS057-ALZ 0-10VDC Low Voltage RF Wall Dimmer Installation Instructions English DI-003-ZS057-02C-W
• product-cleaning-instructions
