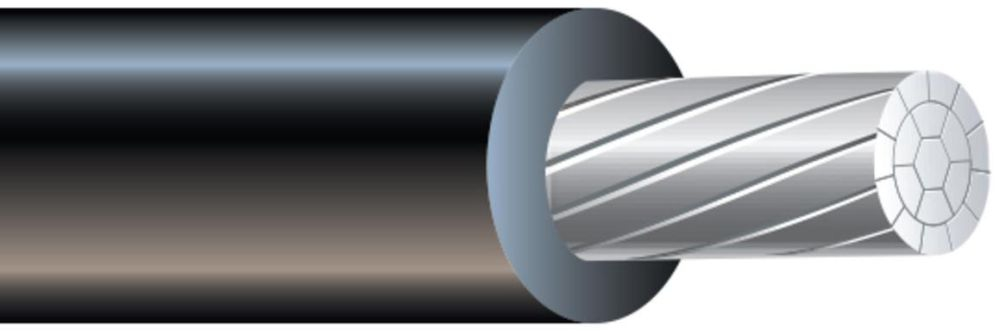

The XHHW-1-BLK-STR-AL-MASTER cable provides reliable electrical connectivity for primary power distribution applications. This black stranded aluminum conductor features cross-linked polyethylene insulation that delivers superior moisture resistance and thermal stability for industrial, and electronic electrical installations for any build project.

• Conductor material: Stranded aluminum for flexibility and conductivity
• Insulation type: XHHW-1 cross-linked polyethylene rated for wet and dry locations, including direct burial applications and underground installations
• Color coding: Black jacket for easy identification in multi-wire installations
• Temperature rating: Engineered to maintain performance in high heat environments
• Application: Suitable for both indoor and outdoor electrical distribution systems, including house wiring and connections to appropriate connectors

Additional Information

• Applicable Standard NFPA 70, NEMA WC70
• Insulation Thickness 55 Mil
• Application Power Distribution and Branch Circuits in Residential, Commercial and Industrial Building

Specifications

• Type: XHHW
• Voltage Rating: 600 V
• Current Rating: 85 Ampere (60 Deg C), 100 Ampere (75 Deg C), 115 Ampere (90 Deg C)
• Conductor Material: Aluminum Alloy
• Conductor Size: 1 AWG
• Stranding: 18 Strands
• Insulation Material: XLPE
• Insulation Color: Black
• Outer Diameter: 409 Mil
• Temperature Rating: 90 Deg C (Dry/Wet)
• Weight: 108 Lb/MFt
• Package Type: Reel
• Approval: UL 44
