WIRE THHN-6-GRY-19STR-CU-MASTER
SKU: #267913
Part: #THHN-6-GRY-19STR-CU-MASTER
UPC: 980100231682
WIRE THHN-6-GRY-19STR-CU-MASTER
SKU: #267913
Part: #THHN-6-GRY-19STR-CU-MASTER
UPC: 980100231682
Total Price: $1.25 per foot Sold in increments of 1 foot
Product Highlights
-
PVC insulation with nylon outer jacket allows pulling through conduit without lubricant
-
19-strand construction delivers greater flexibility than solid wire, easing conduit pulls
-
Ampacity scales with installation temperature rating: 55 A at 60°C, 65 A at 75°C, and 75 A at 90°C
-
Dual-rated THHN/THWN-2 - approved for both dry and wet location installations
-
Sold cut-to-length by the foot, eliminating waste on jobs that don't require full reels
Description

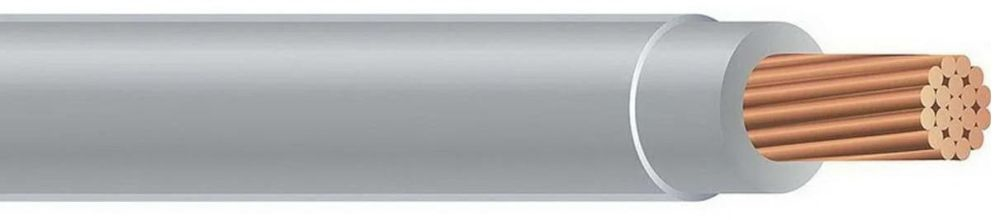

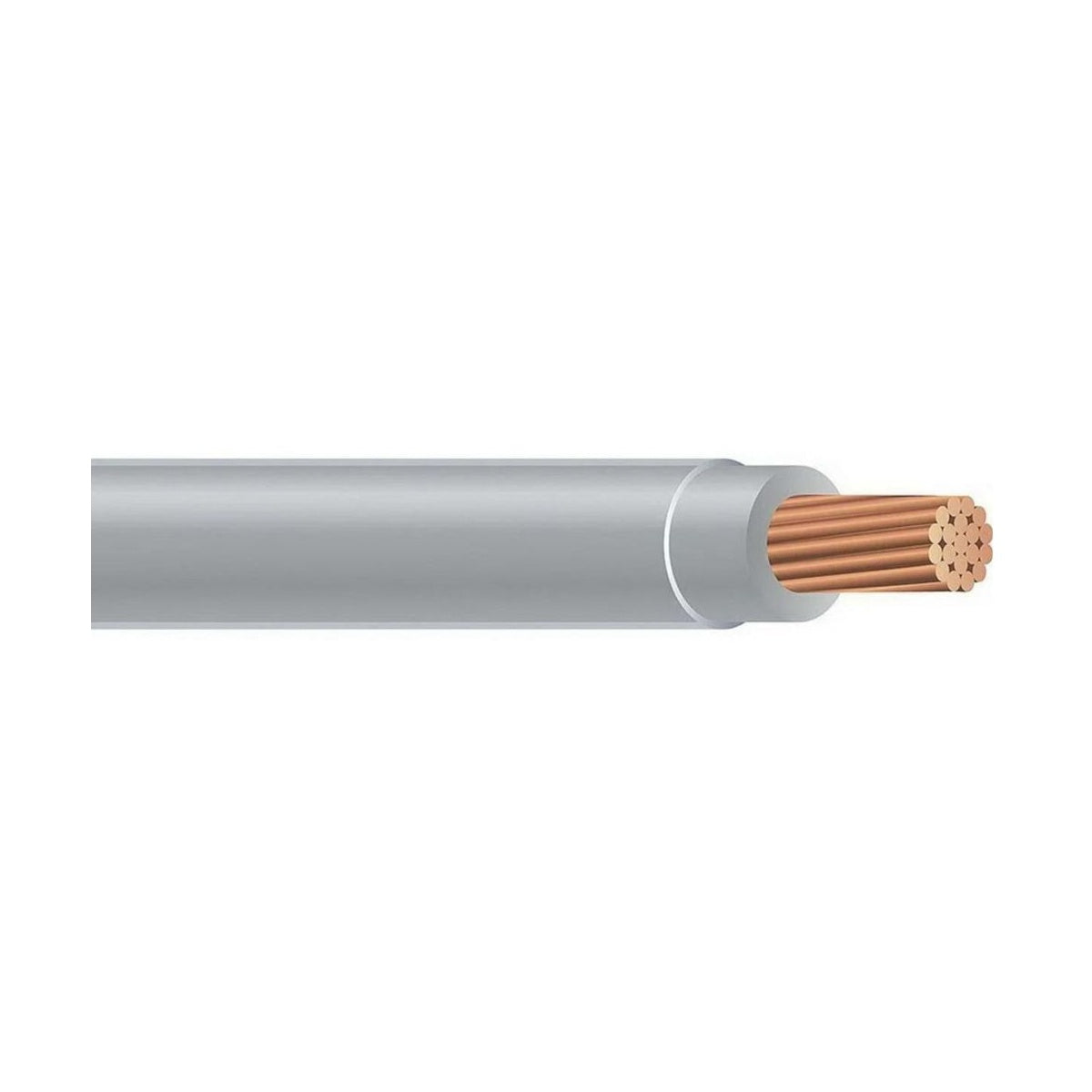

WIRE THHN-6-GRY-19STR-CU-MASTER Building Wire
This stranded THHN copper conductor wire is designed for building wire applications, suitable for use by electrical distributors and switchgear suppliers. It is ideal for wiring installations requiring a 6 AWG conductor size, supporting up to 55 amperes current capacity. The wire is gray in color, cut to length, and rated for a maximum operating temperature of 90°C, making it appropriate for various electrical and lighting solutions.
Specifications
- Manufacturer Part #: THHN-6-GRY-19STR-CU-MASTER
- Conductor Material: Copper
- Conductor Size: 6
- Wire Type: STRANDED THHN
- Current: 55 amperes
- Color: Gray
- Cable Color: Gray
- Length: Cut to Length
- Length UOM: ft
- Max. Operating Temperature: 90° C
- Product Weight: 0.0996246 lbs
Features
- Stranded conductor for enhanced flexibility
- Rated for 600V applications
- Suitable for dry and wet locations per THHN standards
- Compliant with industry ampacity ratings for 6 AWG size
Downloads & Links
Frequently Asked Questions
What temperature ratings apply to this wire, and how do they affect ampacity?
This wire carries three ampacity ratings tied to its temperature rating: 55 A at 60°C, 65 A at 75°C, and 75 A at 90°C. The applicable rating depends on the lowest-rated termination or device in the circuit per NEC requirements.
Is this wire easy to pull through conduit?
The 19-strand construction increases flexibility over solid wire, and the nylon outer jacket reduces friction against conduit walls, allowing installation without pulling lubricant in most runs.
Can this wire be used outdoors or in wet locations?
Yes. The THWN-2 dual rating qualifies this wire for wet locations, including outdoor conduit runs and underground installations where conduit is used. The maximum operating temperature in wet locations is 90°C.
What are typical applications for 6 AWG THHN wire in commercial and residential work?
Common applications include feeder and branch circuits, service entrance wiring, subpanel feeds, HVAC and air conditioning units, electric ovens, large lighting installations, hot tubs, and jacuzzis. It is used in conduit or cable trays per NEC guidelines.
What standards and certifications does this wire meet?
This wire meets UL-83, UL-1063, UL-758, CSA C22.2 No. 75, NEMA WC70/ICEA S-95-658, ASTM B3/B8/B787, and Federal Specification A-A-59544. It is also RoHS compliant per comparable distributor listings.
What is the physical construction of the insulation and jacket on this wire?
The conductor is bare (uncoated) copper. It is insulated with color-coded PVC (30 mils thick) that is heat- and moisture-resistant and flame-retardant, with a nylon outer jacket (approximately 5-6 mils) that provides gasoline and oil resistance and aids conduit pulling.
