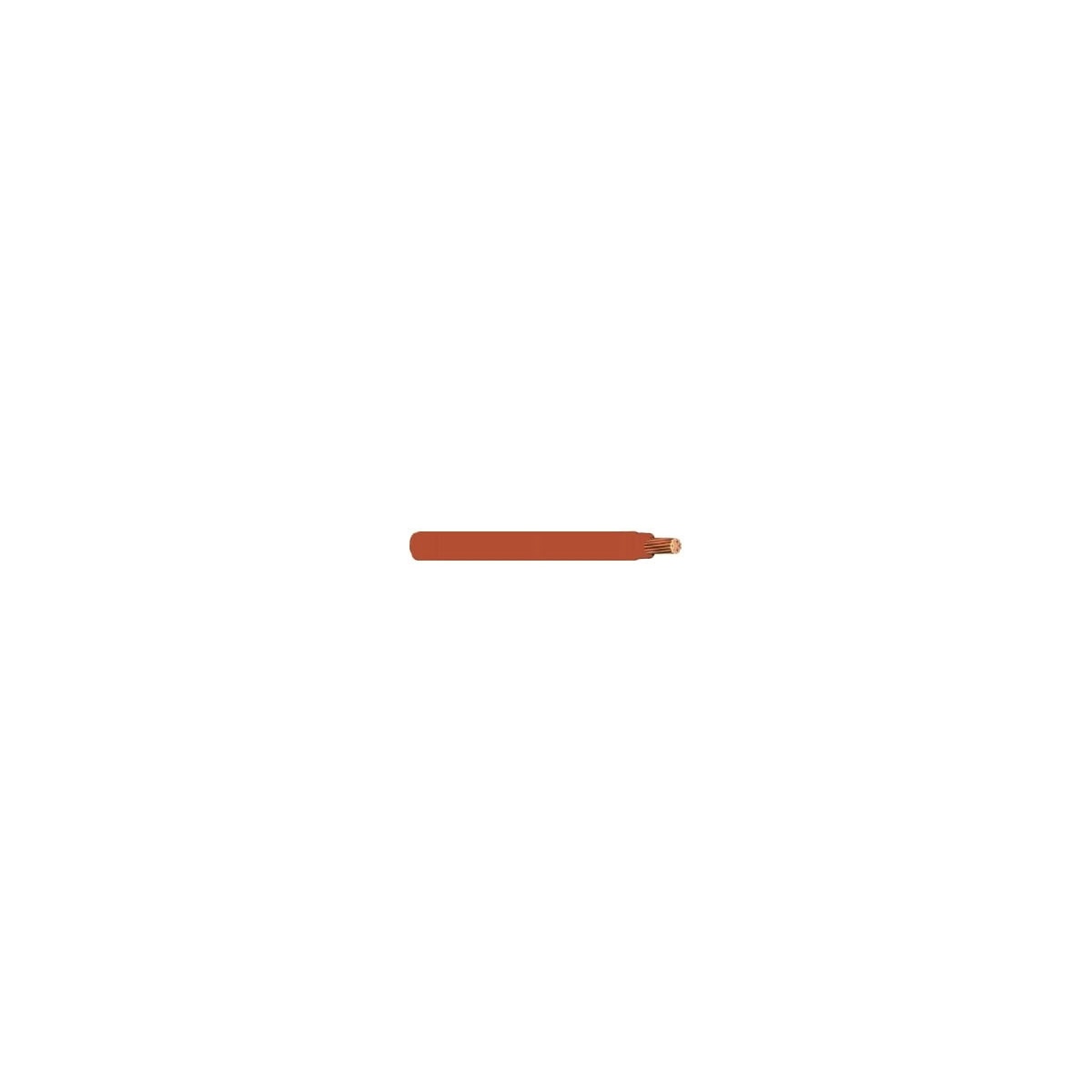

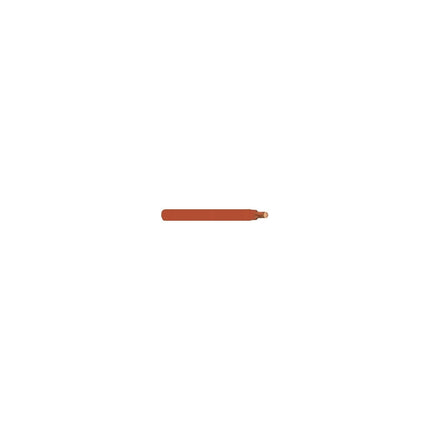

WIRE THHN-4/0-BRN-19STR-CU-MASTER Copper Wire

This stranded THHN copper wire, with a conductor size of 4/0 and brown insulation, is designed for use in electrical distribution and lighting solutions. Suitable for applications requiring high ampacity and durability, it is offered cut to length for flexibility in installation. This wire is compatible with wire and cable systems supplied by electrical distributors and switchgear suppliers, rated for a maximum operating temperature of 90°C and 600 volts.

Specifications

• Name: WIRE THHN-4/0-BRN-19STR-CU-MASTER
• Manufacturer Part #: THHN-4/0-BRN-19STR-CU-MASTER
• Manufacturer Name: Generic
• Conductor Size: 4/0
• Conductor Material: Copper
• Wire Type: STRANDED THHN
• Color: Brown
• Cable Color: Brown
• Length: Cut to Length
• Length UOM: ft
• Max. Operating Temperature: 90¬∞ C
• Product Weight: 0.7548228 lbs
• UPC: 980100222482

Features

• Stranded conductor with 19 strands for flexibility and durability
• Rated for 600V applications
• Maximum operating temperature of 90°C suitable for dry locations
• Brown insulation for color-coded identification
• Cut to length availability for customized installation needs

Downloads & Links

• Spec Sheet
