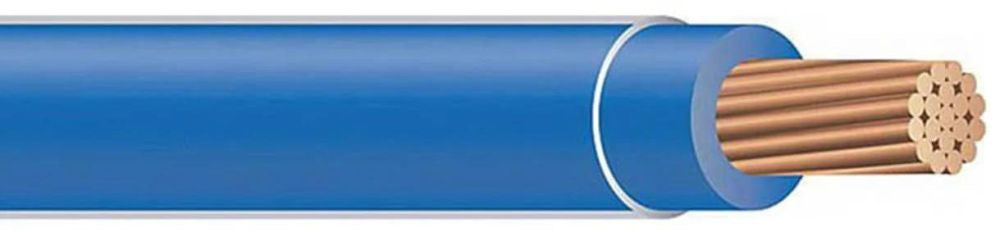

WIRE THHN-4/0-BLU-19STR-CU-MASTER Building Wire

This stranded THHN copper wire with a 4/0 conductor size is designed for electrical distribution and wiring applications. It features a blue PVC insulation jacket and is suitable for use in building wire installations. Ideal for electrical distributors and switchgear suppliers, this wire supports a maximum operating temperature of 90°C and a current rating of 195 amperes, ensuring reliable performance in demanding environments.

Specifications

• Name: WIRE THHN-4/0-BLU-19STR-CU-MASTER
• Conductor Size: 4/0
• Wire Type: STRANDED THHN
• Conductor Material: Copper
• Cable Color: Blue
• Length: Cut to Length (ft)
• Current Rating: 195 amperes
• Max. Operating Temperature: 90° C
• Product Weight: 0.7548228 lbs
• Manufacturer Part #: THHN-4/0-BLU-19STR-CU-MASTER
• UPC: 980100222383
• Manufacturer Name: Generic

Features

• Stranded conductor construction for flexibility
• Blue PVC insulation for easy identification
• Rated for 600 volts
• Suitable for dry and wet locations
• Meets THHN insulation standards with 90°C temperature rating

Downloads & Links

• Spec Sheet
