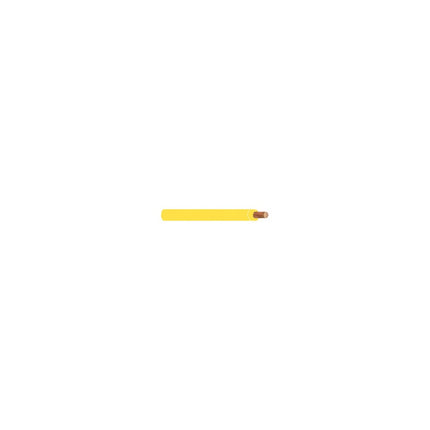

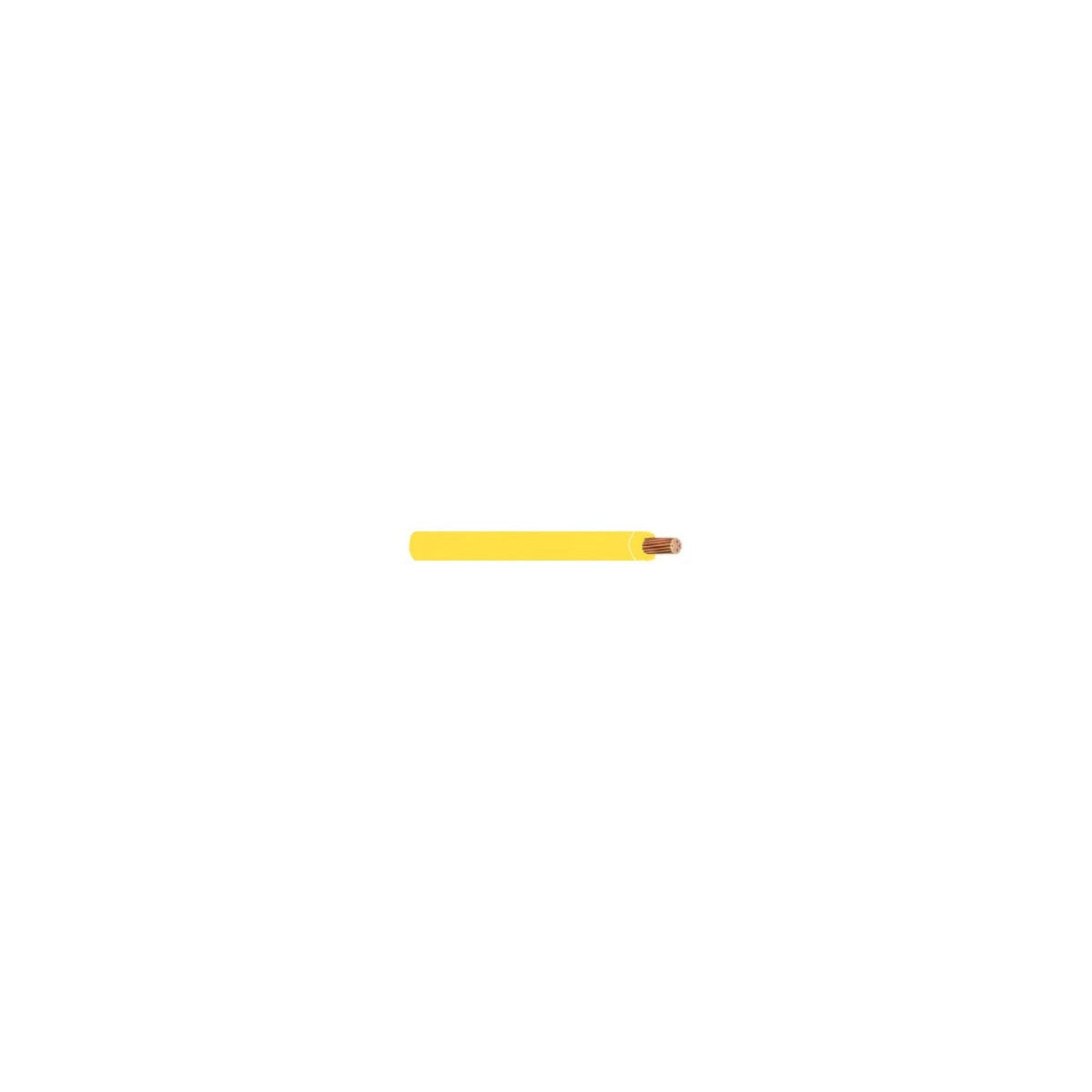

WIRE THHN-2/0-YEL-19STR-CU-MASTER Copper THHN Wire

This stranded THHN wire is designed for electrical distribution and wiring applications, suitable for use by electrical distributors and lighting solutions providers. It features copper conductors with a yellow insulation jacket, optimized for durability and performance in industrial and commercial wiring systems. The wire supports a maximum operating temperature of 90°C, making it appropriate for use in various environments requiring reliable wire and cable products.

Specifications

• Manufacturer Part #: THHN-2/0-YEL-19STR-CU-MASTER
• Conductor Size: 2/0 AWG
• Conductor Material: Copper
• Wire Type: Stranded THHN
• Cable Color: Yellow
• Length: Cut to Length (ft)
• Max. Operating Temperature: 90°C
• Product Weight: 0.4839718 lbs
• UPC: 980100221959

Features

• Stranded construction for flexibility in installation
• Yellow insulation for easy identification
• Rated for 600V applications per THHN standards
• Designed for dry and wet locations with 90°C temperature rating

Downloads & Links

• Spec Sheet
