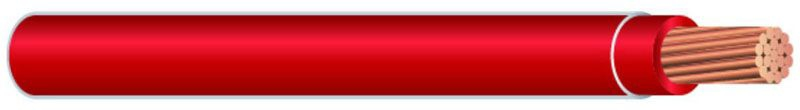

WIRE THHN-12-RED-19STR-CU-500S/R Building Wire

This stranded THHN copper wire is designed for use in electrical distribution and wiring applications. It is suitable for building wire installations requiring reliable performance and compliance with industry standards. Ideal for electrical distributors and switchgear suppliers seeking quality wire and cable solutions with a maximum operating temperature of 90°C and a current rating of 20 amperes.

Specifications

• Conductor Size: 12 AWG
• Wire Type: Stranded THHN
• Conductor Material: Copper
• Color: Red
• Length: 500 ft
• Current: 20 amperes
• Max. Operating Temperature: 90°C
• Product Weight: 0.023774 lbs
• Manufacturer Part #: THHN-12-RED-19STR-CU-500S/R
• UPC: 980100229207

Features

• Stranded conductor for flexibility in installation
• Rated for 600V electrical systems
• Red insulation for easy identification
• Complies with THHN/THWN standards for wet and dry locations
• Suitable for use in building wire applications

Downloads & Links

• Spec Sheet
